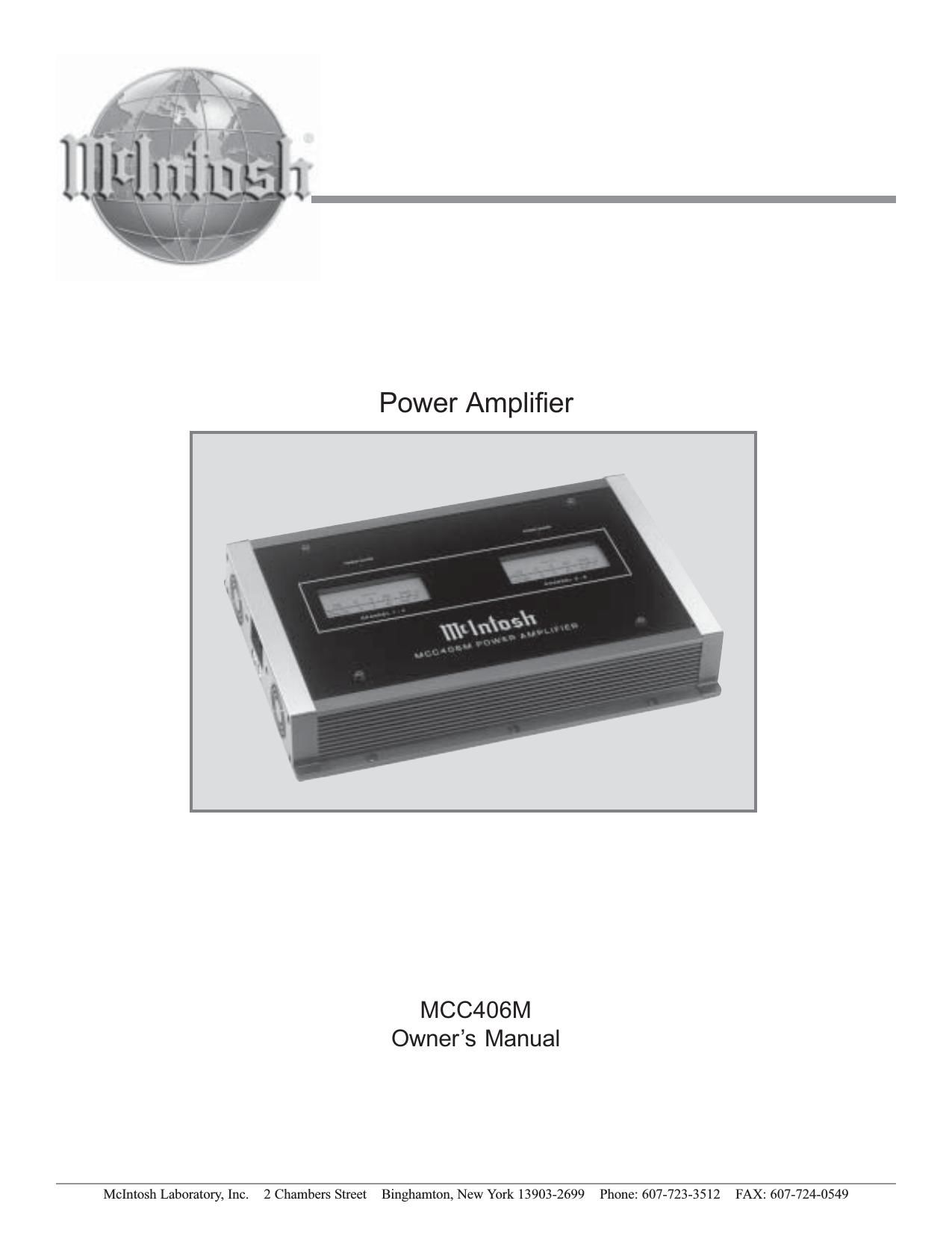

McIntosh MCC406M Owners Manual
This is the 24 pages manual for McIntosh MCC406M Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MCC406M Owners Manual (Ocr-read)
Page 1
2 IMPOR T ANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT. WARNING - TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. To prevent the risk of electric shock, do not remove cover or back. No user serviceable parts inside. The exclamation point within an equi- lateral triangle is intended to alert the user to the presence of important operating and maintenance (servic- ing) instructions in the literature ac- companying the appliance. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat ducts , or other apparatus (including amplifiers) that produce heat. 9. Warning: This unit is capable of producing high sound pressure levels. Continued exposure to high sound pressure levels can cause permanent hearing impairment or loss. User caution is advised and ear protection is recommended when playing at high volumes. 10. Route DC power cords so that they are not likely to be pinched by items placed upon or against them, paying particular attention to the point where they enter the apparatus . 11. Only use attachments/accessories specified by the manufacturer. 12. Do not mount this product with an unstable bracket as the apparatus may fall, causing serious injury to a person, and serious damage to the product. 13. Unplug this apparatus when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cable is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.
Page 2
3 Customer Service Technical Assistance Please Take A MomentThank You Copyright 2003 by McIntosh Laboratory, Inc. The serial number, purchase date and McIntosh Dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that information:Your decision to own this McIntosh MCC406M Six Chan- nel Power Amplifier ranks you at the very top among dis- criminating music listeners. You now have The Best. The McIntosh dedication to Quality, is assurance that you will receive many years of musical enjoyment from this unit. Please take a short time to read the information in this manual. We want you to be as familiar as possible with all the features and functions of your new McIntosh. Serial Number: Purchase Date: Dealer Name: If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For as- sistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917 If at any time you have questions about your McIntosh product, contact your McIntosh Dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your Dealer wish addi- tional help concerning a suspected problem, you can re- ceive technical assistance for all McIntosh products at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-1545 Fax: 607-723-3636Safety Instructions............................................................. 2 Thank You.......................................................................... 3 Please Take a Moment....................................................... 3 Customer Service............................................................... 3 Table of Contents ............................................................... 3 Important Information ....................................................... 4 Introduction ....................................................................... 4 Performance Features........................................................ 4 Dimensions ....................................................................... 5 Installation ........................................................................ 6 Side Panel Cooling and Connections................................ 7 How to Connect for Six Channels..................................... 8 How to Connect for Five Channels ................................. 10 How to Connect for Four Channels................................. 11 How to Connect for Three Channels ............................... 12 Top Panel Controls, Displays and Switches .................... 14 How to Operate the MCC406M ...................................... 15 How to Operate in Six or Five Channel Mode ................ 16 How to Operate in Four or Three Channel Mode ............ 17 How to Replace the Fuses............................................... 18 Block Diagram ................................................................. 19 Specifications .................................................................. 22 Packing Instructions........................................................ 23 Table of Contents
Page 3
4 Important Information 1. An optional McIntosh External Subwoofer Rotary Control, Model Number R1163, is available from your McIntosh Dealer. 2. Do not connect the Amplifier Speaker Negative Terminal Connection directly to the Vehicle Chassis. Failure to observe this could result in damage to your Amplifier. 3. For additional connection information, refer to the owner s manual(s) for any component(s) connected to the MCC406M Amplifier. 4. There is a built-in turn on delay which will mute the speaker outputs for approximately two seconds when the amplifier is turned on. 5. It is very important that loudspeaker cables of adequate size be used in your music system, to ensure that there will be no power loss or heating. If your loudspeaker cables are 25 feet (7.62m) or less, use at least 16 Gauge wire size or larger. 6. It is advisable to place an in- line fuse as close as possible to the battery. 7. The MCC406M can accept speaker level inputs at its Input Jacks. Refer to the diagram for connection. Performance Features Introduction - -- - - Power Output The MCC406M consists of six separate power amplifier channels, with four channels each capable of 50 watts and two channels each capable of 100 watts with less than 0.005% distortion. - -- - - Six Bridgeable Channels The MCC406M includes four 50 watt amplifier channels. Each pair of channels can be set in bridged configuration for 200 watts output into a 4 ohm Loudspeaker. The two 100 watt channels may also be bridged for 400 watts out- put into a 4 ohm Loudspeaker. Now you can take advantage of traditional McIntosh stan- dards of excellence in the MCC406M Power Amplifier. The MCC406M has 400 watts of combined power output with high current capability from six, five, four or three channels and will drive any high quality Loudspeaker Sys- tem to its ultimate performance. The MCC406M reproduc- tion is sonically transparent and absolutely accurate. The McIntosh Sound is The Sound of the Music Itself. (-) NEGATIVE SPEAKER OUTPUT (+) POSITIVE SPEAKER OUTPUT - -- - - High Current Output A peak output current of 20 amperes ensures that the MCC406M will successfully drive high quality Loud- speakers, such as McIntosh, for a truly exciting sound ex- perience. - -- - - Variable Crossover Filters The 12dB per octave high pass filters have variable corner frequencies from 5Hz to 5,000Hz and 12dB per octave low pass filters with variable corner frequencies from 50Hz to 5,000Hz. - -- - - Illuminated Watt Meters The MCC406M has Output Watt Meters that display the combined output in watts for all six channels. The meters respond 95% full scale to a single cycle tone burst at 2kHz. It is almost ten times faster than a professional VU meter. - -- - - Power Guard and Sentry Monitor All channels include the patented McIntosh Power Guard circuit that prevents the amplifier from being overdriven into clipping with its harsh distorted sound that can also damage your valuable Loudspeakers. McIntosh Sentry Monitor power output stage protection circuits are present on all channels to ensure the MCC406M will have a long and trouble free operating life. - -- - - Speaker Protection If for any reason, a DC (Direct Current) voltage appears at the speaker output terminals, a built-in circuit turns off the amplifier power supplies to prevent damage to your valu- able Loudspeakers. - -- - - Thermal Protection with Multi-Speed Cooling Fans Built-in thermal protection circuits guard against overheat- ing which could shorten the normal long life expectancy of your McIntosh Power Amplifier. Cooling fan speed is con- trolled by temperature sensors attached to the interior of the extruded aluminum cooling tunnel. The fans normally run at a quiet low speed, when needed the fans will auto- matically switch to a higher speed for increased cooling. - -- - - Subwoofer Output Remote Control An optional Subwoofer Remote Control Accessory may be connected to the MCC406M and allows varying the Subwooofer output level.
