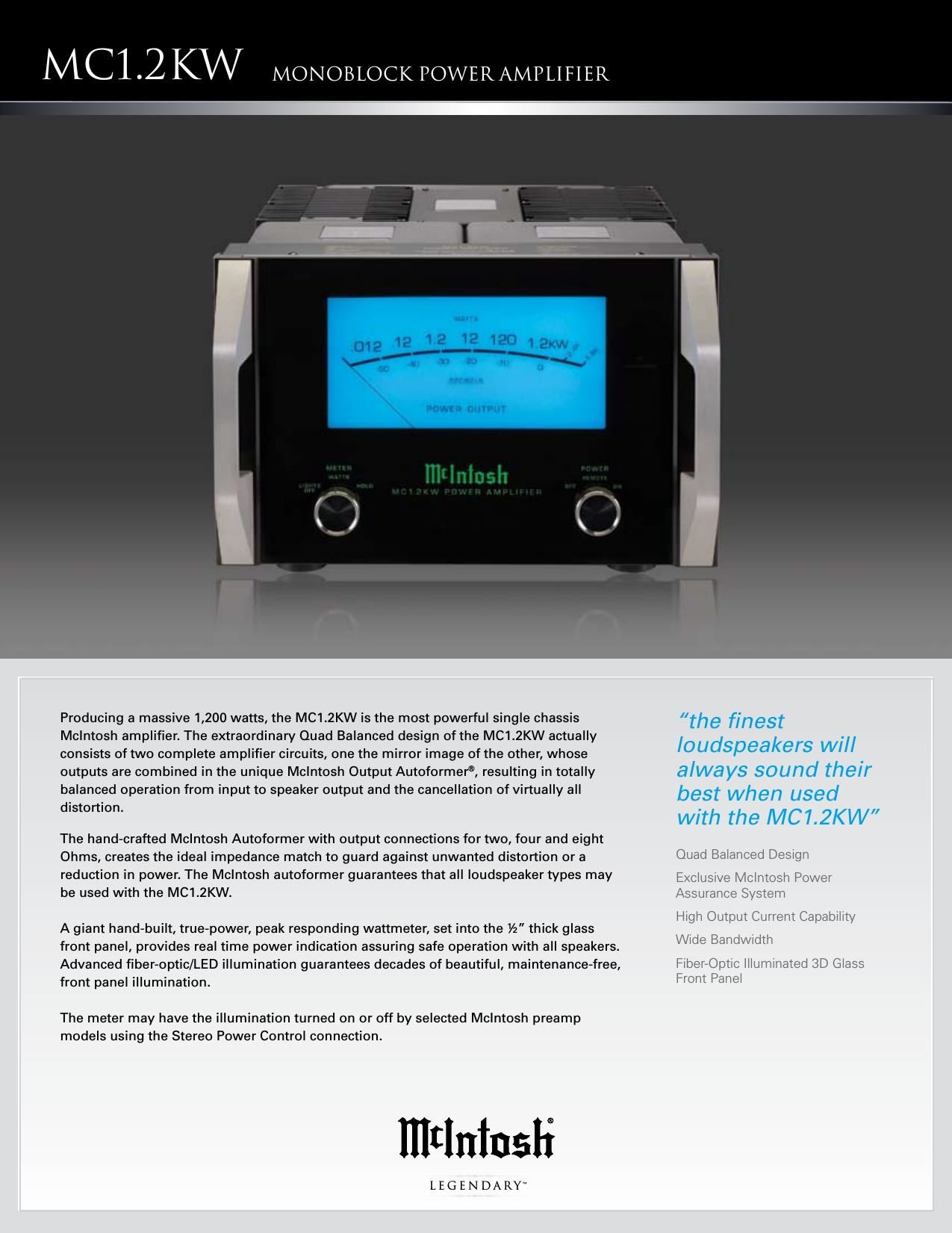

McIntosh MC1 2KW Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 l e g e n d a r y www.mcintoshlabs.com 35009800 MC 1.2KW Mc1.2kw Monoblock Power Amplifier POWER OUTPUT1200 watts into an 8, 4 or 2 Ohm load is the mini - mum sine wave continuous average power output. OUTPUT LOAD IMPEDANCETerminals for 8, 4 and 2-Ohms RATED POWER BAND20Hz to 20kHz TOTAL HARMONIC DISTORTION 0.005% maximum harmonic distortion at any level from 250 milliwatts to rated power output. DYNAMIC HEADROOM2dB FREQUENCY RESPONSE+0, -0.25dB from 20Hz to 20kHz+0, -3.0dB from 10Hz to 100kHz INPUT SENSITIVITY2.5V Unbalanced, 5V Balanced A-WEIGHTED SIGNAL TO NOISE RATIO120 below rated output, Unbalanced124dB below rated output, Balanced INTERMODULATION DISTORTION0.005% maximum if instantaneous peak power output does not exceed twice the rated output, for any combination of frequencies from 20Hz to 20kHz WIDE BAND DAMPING FACTORGreater than 40 INPUT IMPEDANCE10,000-Ohms POWER GUARDLess than 2% THD with 14dB overdrive POWER REQUIREMENT100 volts, 50/60Hz, 13 amps110 volts, 50/60Hz, 12 amps 120 volts, 50/60Hz, 12 amps 220 volts, 50/60Hz, 7.5 amps 230 volts, 50/60Hz, 6.5 amps 240 volts, 50/60Hz, 6.5 amps ADDITIONAL SPECIFICATIONDC Failure Protection Thermal Sensors Turn-on Delay Soft Start Inrush Protection Balanced and Unbalanced Inputs Remote Power Control Massive Gold Plated Output Binding Posts Stainless Steel Chassis w/ Super Mirror Finish EXCLUSIVE MCINTOSH POWER ASSURANCE SYSTEM A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. POWER GUARD ® A waveform comparison circuitcontinuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion. SENTRY MONITOR ® Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level – resets automatically. OUTPUT AUTOFORMER ® Unique McIntosh technology delivers the full rated amplifier output with the least possible distortion into loudspeaker impedances of 2, 4, or 8-Ohms; you get all the power you paid for and the freedom to choose any loudspeaker. WATTMETER Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy. FOR THE CONSUMERS PROTECTION In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or prod - ucts that have had their serial number altered or defaced.
