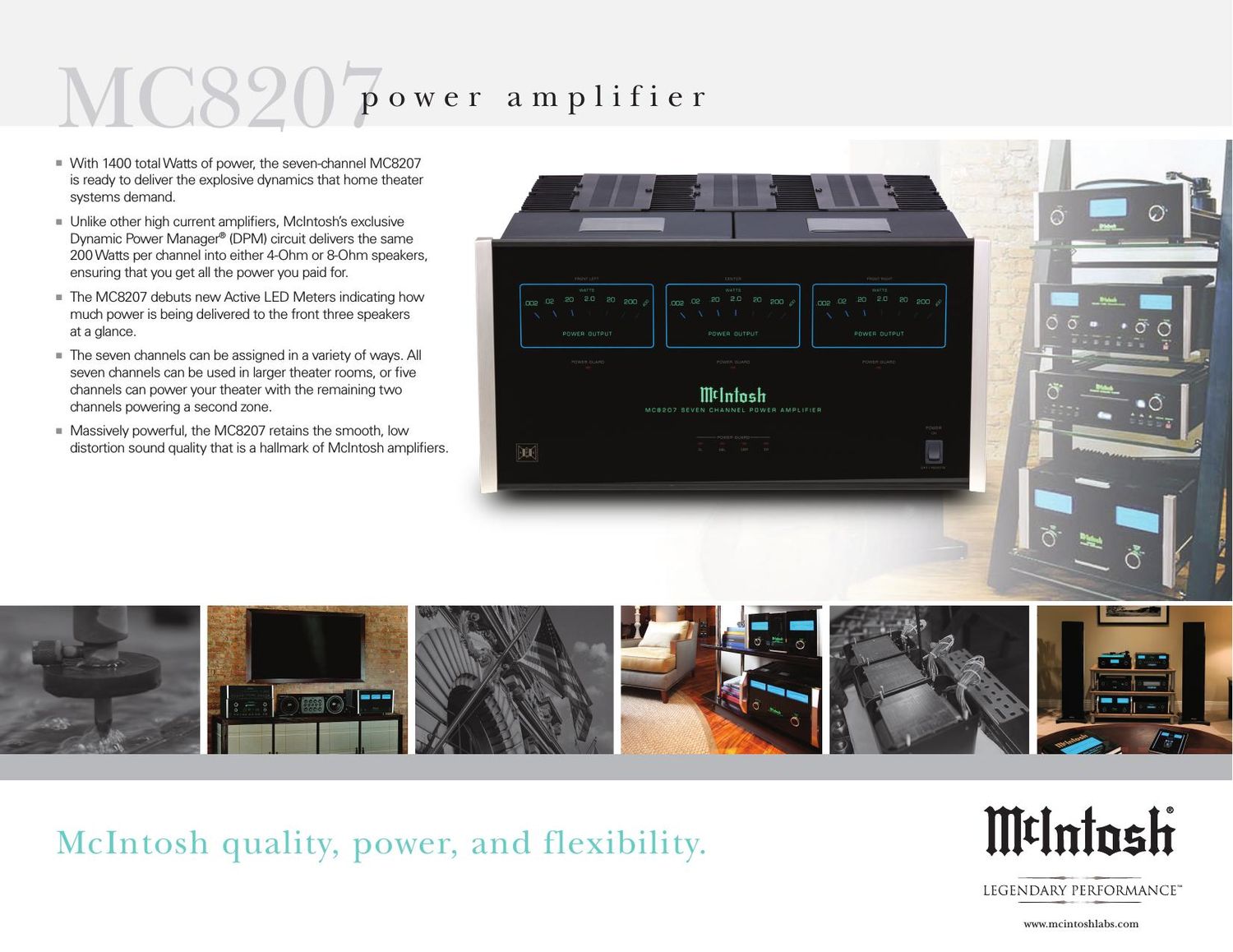

McIntosh MC 8207 Brochure

Page 1

www.mcintoshlabs.com General Specifications Power Output: 200 watts per channel, into 4 or 8 ohm loads, all channels operating, from 20Hz to 20kHz Dynamic Headroom: 1.7 dB Total Harmonic Distortion: 0.005% maximum THD from 250 milliwatts to full power level, 20Hz to 20kHz Frequency Response: +0, 0.25dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz Single-to-Noise Ratio (A-Weighted): 112dB below rated output Intermodulation Distortion: Less than 0.005% all channels operating with any combination of frequencies between 20Hz and 20kHz if instantaneous peak does not exceed twice rated output or less. Input Sensitivity: 2.8 volts 8 ohms, balanced and 2 volts 4 ohms, balanced Weight: \ 83 pounds (37.6 kg) net, 116 pounds (52.6 kg) in shipping carton Overall Dimensions: Width is 17-1/2 inches (44.45cm) Height is 9-7/16 inches (23.97) including feet Depth is 21 inches (53.3cm) including the front panel and cables 35016300 Companion ProductsThe McIntosh MX121 Control Center, MVP891 Universal Player, MR88 AM/FM/XM/HD Tuner, MPC1500 Power Controller, LCR80 Center Channel Loudspeaker and the XR100 Loudspeakers are logical companions for the MC8207 Power Amplifier. Your authorized dealer can provide additional information. To learn more, please call us at 1.800.538.6576. MC8207 power amplifier For the Consumers Protection:In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
