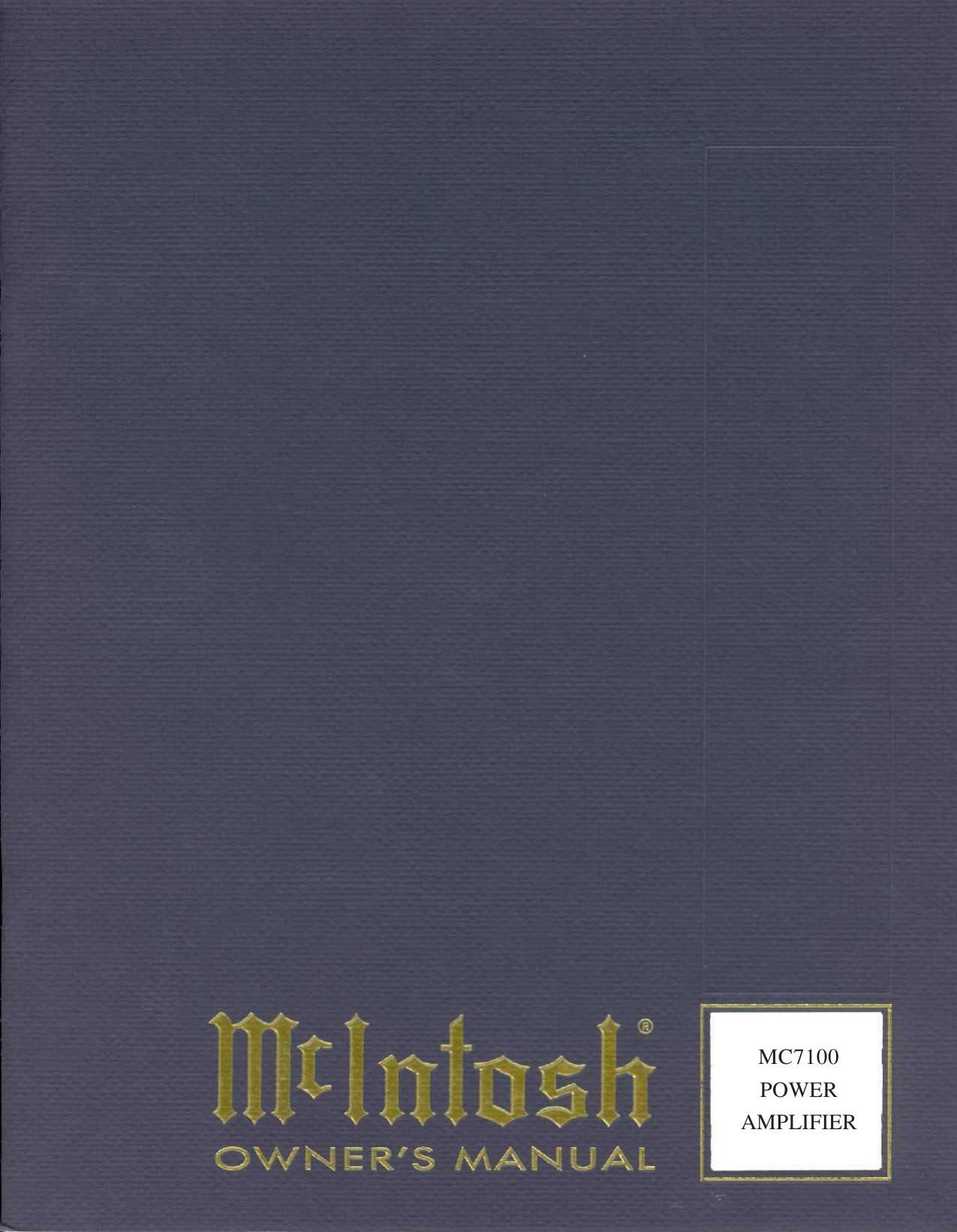

McIntosh MC 7100 Owners Manual

Page 1

Page 2

MC7100 POWER AMPLIFIER

Page 8

3. SAW THE PANEL CUTOUT First make the two long horizontal cuts. Then make the two short vertical cuts. After the cutout is finished, use a file to square the corners and smooth any rough edges. 4. INSTALL THE PANLOC MOUNTING STRIPS The hardware package includes two mounting strips and two black flat head 6/32 x 1 1/4 inch (31.8mm) screws and two 6/32 x 1 1/4 inch (31.8mm) fillister head screws. Place a mounting strip behind each edge of the cutout and secure it to the back side of the panel inserting a black flat head 6/32 screw through the center holes marked B on the template. Make sure the screws are drawn flush or slightly into the wood before attaching the PANLOC shelves. 5. ATTACH THE PANLOC SHELVES Position the PANLOC shelves inside the cutout with the short flange against the front face of the cabinet panel. Fasten the shelves by inserting two fillister head 6/32 screws through the holes in each of the PANLOC shelf flanges, through the front panel and into the threaded receptacle on the mounting strips. 6. INSTALL THE AMPLIFIER Guide the amplifier AC power cord through the panel opening to the back of the cabinet. Slide the amplifier into the opening, making sure the rails on the bottom of each side of the amplifier chassis engage the tracks on the PANLOC shelves. Slide the amplifier completely into the cabinet until the back side of its front panel is pressing gently against the front of the cabinet panel. Turn the PANLOC buttons approximately one-quarter turn clockwise to lock the amplifier in the cabinet. Turn the PANLOC buttons one-quarter turn counterclockwise to unlock and remove the amplifier. 7 INSTALLATION
