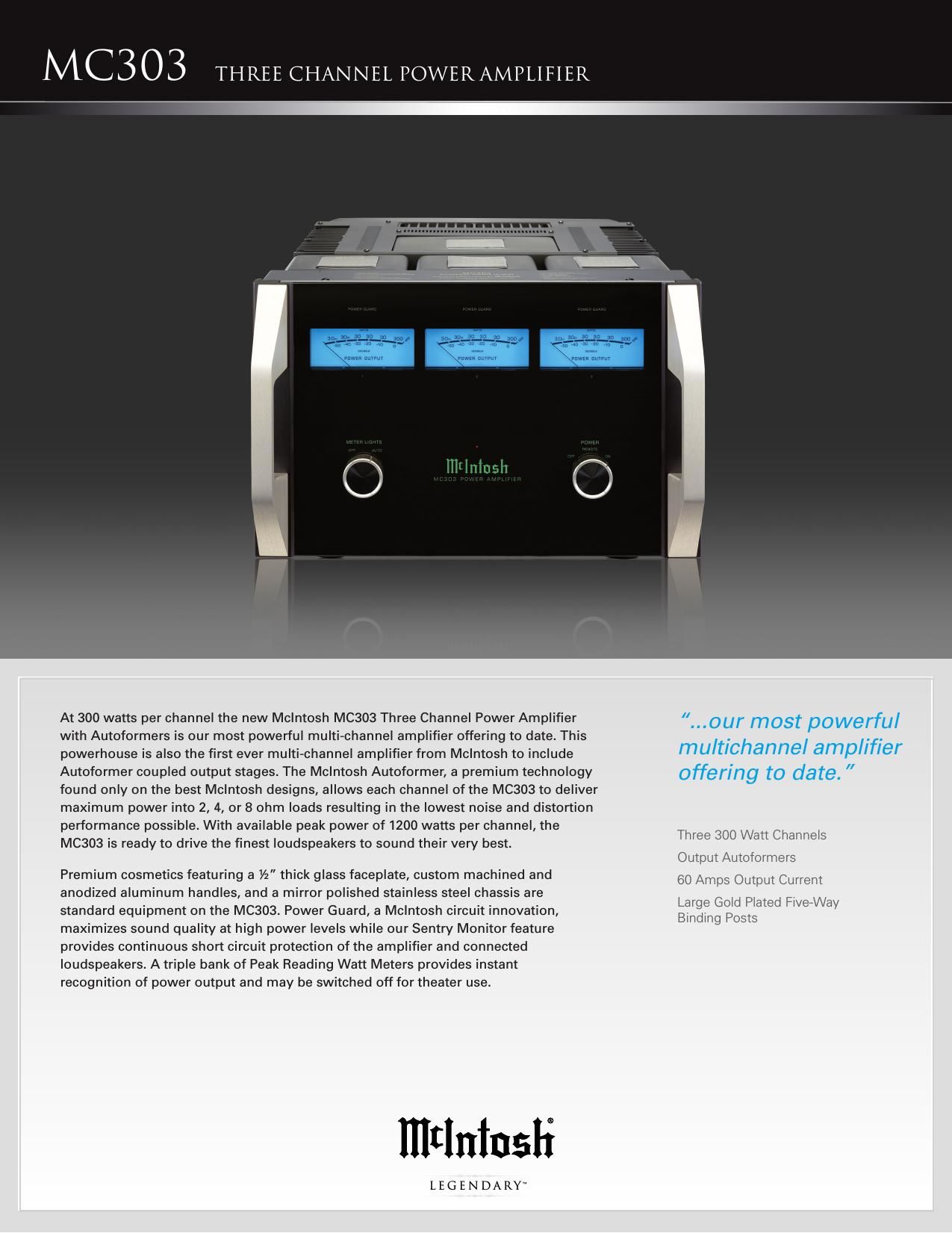

McIntosh MC 303 Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 www.mcintoshlabs.com 35011400 MC303 MC303 THREE CHANNEL POWER AMPLIFIER Power outPutMinimum sine wave continuous average power output per channel, all channels operating: 300 watts into a 2 ohm, 4 ohm or 8 ohm load outPut Load IMPedanCe2, 4 or 8 ohms rated Power Band20Hz to 20,000Hz totaL HarMonIC dIstortIon0.005% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz dynaMIC HeadrooM1.8dB FrequenCy resPonse+0, -0.25dB from 20Hz to 20,000Hz +0, -3dB from 10Hz to 100,000Hz InPut sensItIvIty (For rated outPut)1.7 Volt Unbalanced 3.4 Volt Balanced sIgnaL to noIse ratIo (a-weIgHted)112dB below rated output InterModuLatIon dIstortIon0.005% maximum, if the instantaneous peak power output does not exceed twice the rated power output for any combination of frequencies from 20Hz to 20,000Hz. wIde Band daMPIng FaCtorGreater than 40 InPut IMPedanCe10,000 ohms Power guardLess than 2% THD with up to 14dB overdrive at 1,000Hz Power ControL InPut5VDC - 12VDC Power ControL outPut12VDC, 25mA maximum, delay 0.2 seconds Power requIreMents100 Volts, 50/60Hz at 12 Amps 110 Volts, 50/60Hz at 11 Amps 120 Volts, 50/60Hz at 10 Amps 220 Volts, 50/60Hz at 6 Amps 230 Volts, 50/60Hz at 6 Amps 240 Volts, 50/60Hz at 6 Amps Standby: Less than 1 watt Note: Refer to the rear panel of the MC303 for the correct voltage. overaLL dIMensIonsWidth is 17-3/4" (45.09cm) Height is 12-3/8" (31.43cm) including feet Depth is 22" (55.88cm) including the Front Panel and Cables weIgHt155 lbs. (70.3 kg) net, 180 lbs. (81.6 kg) in shipping carton sHIPPIng Carton dIMensIonsWidth is 31" (78.74cm) Depth is 28" (71.12cm) Height is 17-1/4" (43.82cm) eXCLusIve MCIntosH Power assuranCe systeM A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. Power guard ® A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion. sentry MonItor ® Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level – resets automatically. outPut autoForMers Unique McIntosh technology delivers the full rated amplifier output with the least possible distortion into loudspeaker impedances of 2, 4, or 8 ohms; you get all the power you paid for and the freedom to choose any loudspeaker. wattMeter Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy. For tHe ConsuMers ProteCtIon In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
