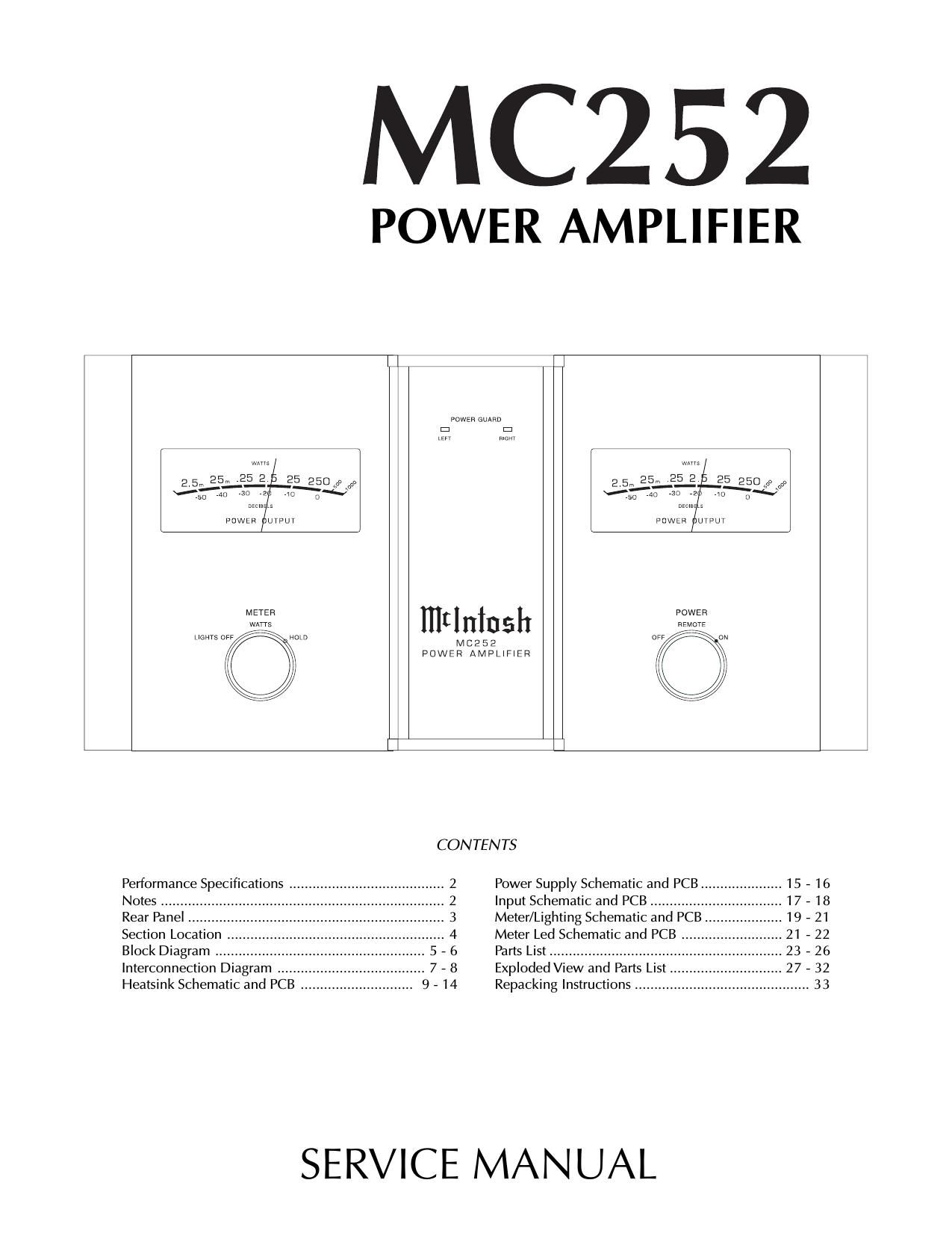

McIntosh MC 252 Service Manual
This is the 20 pages manual for McIntosh MC 252 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MC 252 Service Manual (Ocr-read)
Page 1
PERFORMANCE SPECIFICATIONS Power Output Stereo 250 watts into a 2, 4 or 8 ohm load is the minimum sine wave continuous average power per channel with both channels operating Power Output Mono Bridged 500 watts into a 4, 8 or 16 ohm load is the minimum sine wave continuous average power output Power Output Mono Bi-Amp 500 watts into a 1, 2 or 4 ohm load is the minimum sine wave continuous average power output Output Load Impedance Stereo: 2, 4 or 8 ohms Mono: 1, 2, 4, 8, or 16 ohms Rated Power Band 20Hz to 20,000Hz Total Harmonic Distortion Maximum Total Harmonic Distortion at any power level from 250 milliwatts to rated power output is 0.005% Intermodulation Distortion Maximum Intermodulation Distortion if instantaneous peak output per channel does not exceed twice the rated output, for any combination of frequencies from 20Hz to 20,000Hz, with all channels operating is 0.005% Dynamic Headroom 2.0dB Frequency Response +0, -0.25dB from 20Hz to 20,000Hz +0, -3dB from 10Hz to 100,000Hz Sensitivity 1.6 Volts Unbalanced Input 3.2 Volts Balanced Input A-Weighted Signal To Noise Ratio 112dB below rated output Input Impedance 10,000 ohms Wide Band Damping Factor Greater than 40 Power Requirements 100 Volts, 50/60Hz at 8 amps 110 Volts, 50/60Hz at 7.2 amps 120 Volts, 50/60Hz at 6.6 amps 220 Volts, 50/60Hz at 3.3 amps 230 Volts, 50/60Hz at 3.3 amps 240 Volts, 50/60Hz at 3.3 amps Note: Refer to the rear panel of the MC252 for the correct voltage. Overall Dimensions 17-1/2 inches (44.45cm) W, 9-7/16 inches (23.97cm) H, 14-3/4 inches (37.5cm) D, including clearance for connec- tors Weight 94.5 pounds (207.9kg) net, 108.5 pounds (238.7kg) in shipping carton 2 1. The heavy notes on the schematic denote the primary signal path. 2. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are +/-10% with respect to ground. A high impedance (10 megaohm) voltmeter must be used. 3. Unless otherwise specified: a. Resistor values are in ohms. b. Capacitor values are microfarads (uF). c. Inductor values are in microhenries (uH).4. On PC board drawings, Square pad indicates: a. Polarized Capacitors - Positive b. Diodes - Cathode c. Others - Pin 1 5.WARNING Parts marked with the symbol have critical characteristics. Use only replacement parts recom- mended by the manufacturer. NOTES
Page 2
3 MC252 TOP AND REAR PANEL
