McIntosh MC 2505 Service Manual

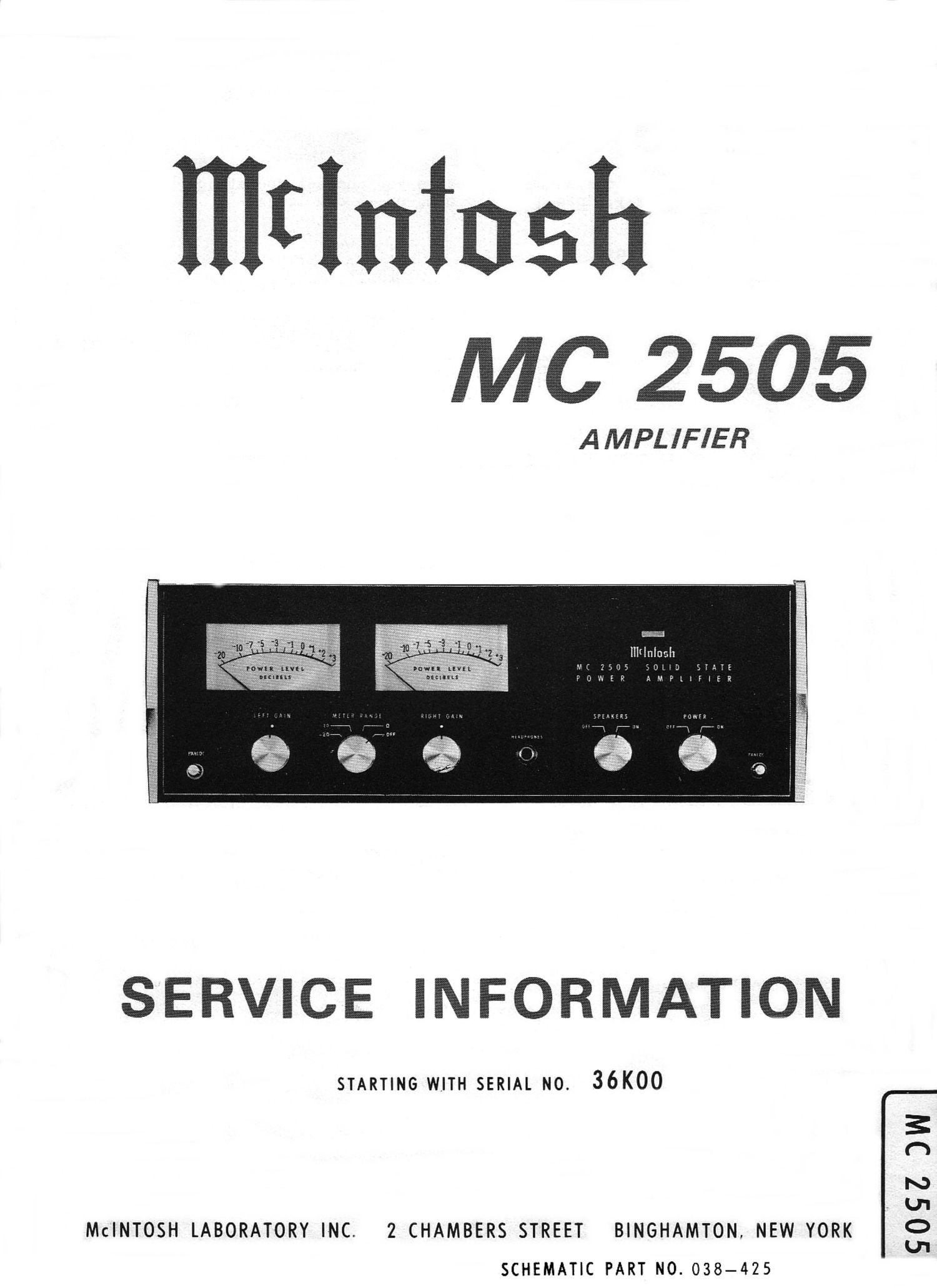

This is the 15 pages manual for McIntosh MC 2505 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MC 2505 Service Manual (Ocr-read)
Page 2
MC
2505
ELECTRICAL SPECHWCATIONS
Power Output:
100 watts RMS continuous, 50 watts per channel operating
simultaneously, into n ohm, 8 ohm, or 16 ohm loads.
Harmonic Distortion:
Less than 0.25% at rated power output from 20Hz to 20,000Hz.
Intermodulation Distortion.
Less than 0.25% for any combination of frequencies between 20 Hz
and 20,000 Hz.
Frequency Range:
At rated output both channels: +0, -0.25dB, 20Hz through
20,000HZ.
Output Damping Factor:
Greater than 10 for any output tap.
Input Sensitivity & Impedance:
Input sensitivity is 0.5 volts. Input impedance is 200,000
0111113.
Hum & N01se:
Greater than 90dB below rated output.
Output Power Monitor Meter:
Meter is calibrated to read +3dB when amplifier produces
rated output. Meter range switch increases meter sensiti-
vity by lOdB or 20dB.
Power Requirements:
117 volts AC 50-60 cycles, 50 watts at zero signal output,
250 watts at rated output.
Page 15
MC 2505
SCHEMATIC PART NO. 038-425
