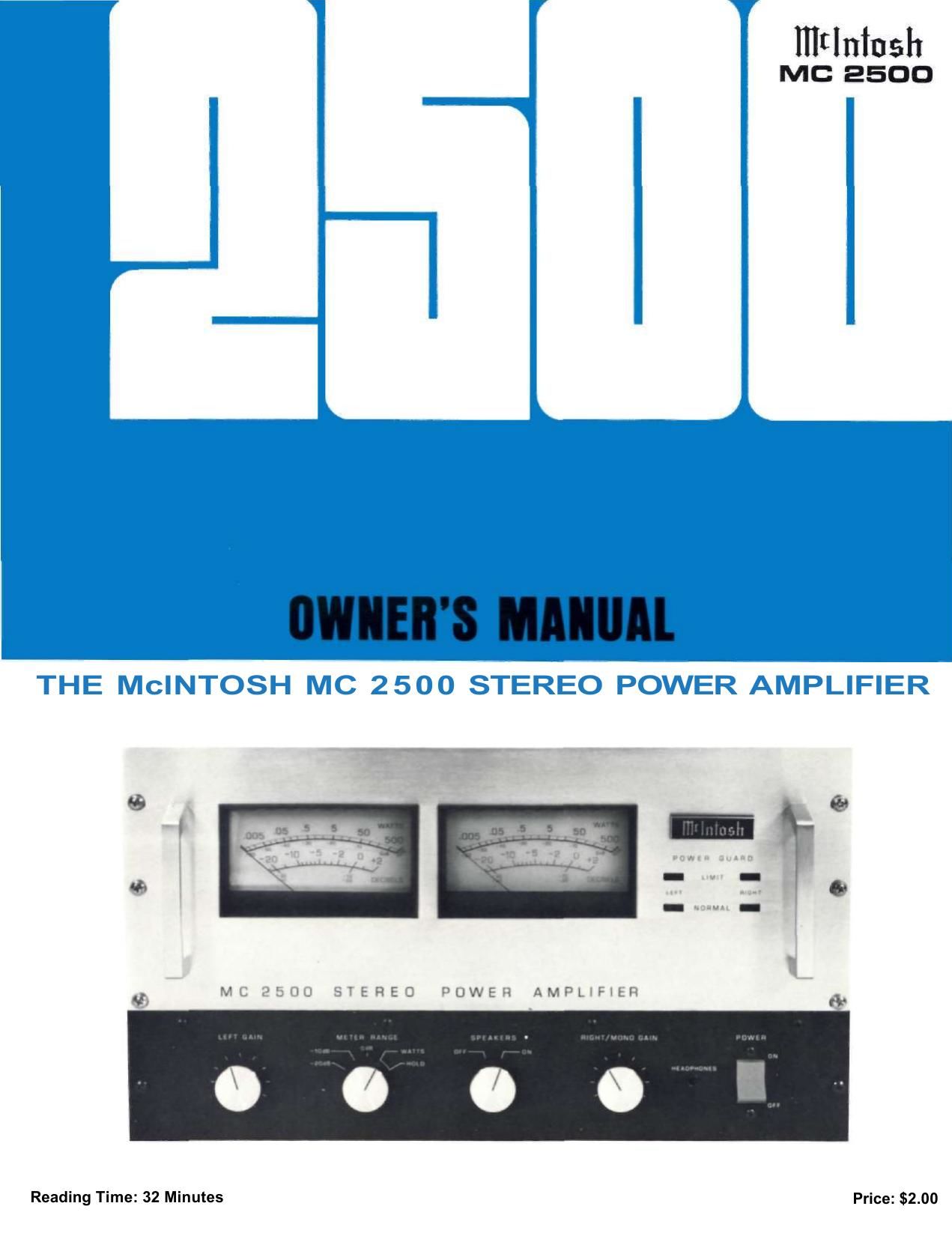

McIntosh MC 2500 Owners Manual

Page 1

VARIOUS REGULATORY AGENCIES REQUIRE THAT WE BRING THE FOLLOWING INFORMATION TO YOUR ATTENTION. PLEASE READ IT CAREFULLY. The Mclntosh MC 2500 is an ex­ tremely high power amplifier. Because of the high power available it is necessary to emphasize some prudent and safe operating condi­ tions. 1. Loudspeakers can be damaged or destroyed by the high power available from the MC 2500. Never connect or disconnect inputs or outputs while the amplifier is turn­ ed on. 2. Never operate the amplifier with the power cord plugged into an auxiliary AC power outlet on source equipment. The amplifier draws 15 amperes and can damage the source equipment. 3. Do not operate the instrument plug­ ged into an ordinary extension cord. A heavy duty extension cord (14 ga. or heavier) is required. 4. Be cautious when lifting the instru­ ment. It weighs 129 pounds. Make certain that what it is placed on can support the weight. 5. The amplifier cooling fans can be thermostatically controlled when the fan switch on the rear panel is placed in the thermally switched positions. When so operated, the fans will not run when the amplifier is cool, as when the amplifier is first turned on. As heat develops, one or both fans will automatically turn on as conditions require. This operating behavior is normal. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. The Mclntosh you have purchased is a Model MC 2500. It has a serial number located on the rear panel of the chassis. Record that serial number here: The model, serial number and purchase date are impor­ tant to you for any future service. Record the purchase date here: Upon application, Mclntosh Laboratory provides a Three-Year Service Contract. Your Mclntosh authorized Service Agency can expedite repairs when you provide the Service Contract with the instrument for repair. To assist, record your Service Contract number here: Serial Number Purchase date Service Contract Number

Page 2

Your MC 2500 Stereo Power Amplifier can give you many years of satisfactory performance. If you have any questions, please contact: CUSTOMER SERVICE Mclntosh Laboratory Inc. 2 Chambers Street Binghamton, New York 13903-9990 Phone: 607-7233512 Contents SERVICE CONTRACT INFORMATION 1 INSTALLATION 2 HOW TO CONNECT 3 FRONT PANEL INFORMATION 8 REAR PANEL INFORMATION 10 PERFORMANCE LIMITS 12 PERFORMANCE CHARTS 13, 14 TECHNICAL DESCRIPTION 15 BLOCK DIAGRAM 17 MclNTOSH THREE YEAR SERVICE CONTRACT An application for A THREE YEAR SERVICE CONTRACT is included with this manual. The terms of the contract are: 1 Mclntosh will provide all parts, materials and labor needed to return the measured performance of the instrument to the original performance limits. The SER­ VICE CONTRACT does not cover any shipping costs to and from the authoriz­ ed service agency or the factory. 2. Any Mclntosh authorized service agency will repair Mclntosh instruments at nor­ mal service rates. To receive service under the terms of the SERVICE CON­ TRACT, the SERVICE CONTRACT CER­ TIFICATE must be presented when the instrument is taken to the service agency. 3. Always have service done by a Mclntosh authorized service agency. If the instrument is modified or damaged as a result of unauthorized repair, the SERVICE CONTRACT will be cancelled. Damage by improper use or mishandl­ ing is not covered by the SERVICE CONTRACT. 4. The SERVICE CONTRACT is issued to you as the original purchaser. To pro­ tect you from misrepresentation, this contract cannot be transferred to a se­ cond owner. 5. To receive the SERVICE CONTRACT, your purchase must be made from a Mclntosh franchised dealer. 6. Your completely filled in application for the SERVICE CONTRACT must be post­ marked within 30 days of the date of purchase of the instrument. 7. To receive the SERVICE CONTRACT, all information on the application must be filled in. The SERVICE CONTRACT will be issued when the completely filled in application is received by Mclntosh Laboratory Incorporated in Binghamton, New York. 8. Units in operation outside the United States and Canada are not covered by the Mclntosh Factory Service Contract, irrespective of the place of purchase. Nor are units acquired outside the U.S.A. and Canada, the purchasers of which should consult with their dealer to ascertain what, if any, service con­ tract or warranty may be available locally. Copyright 1981 © by Mclntosh Laboratory Inc. -1- Take Advantage of 3 years of Contract Service... Fill in the Application NOW.
