McIntosh MC 250 Brochure

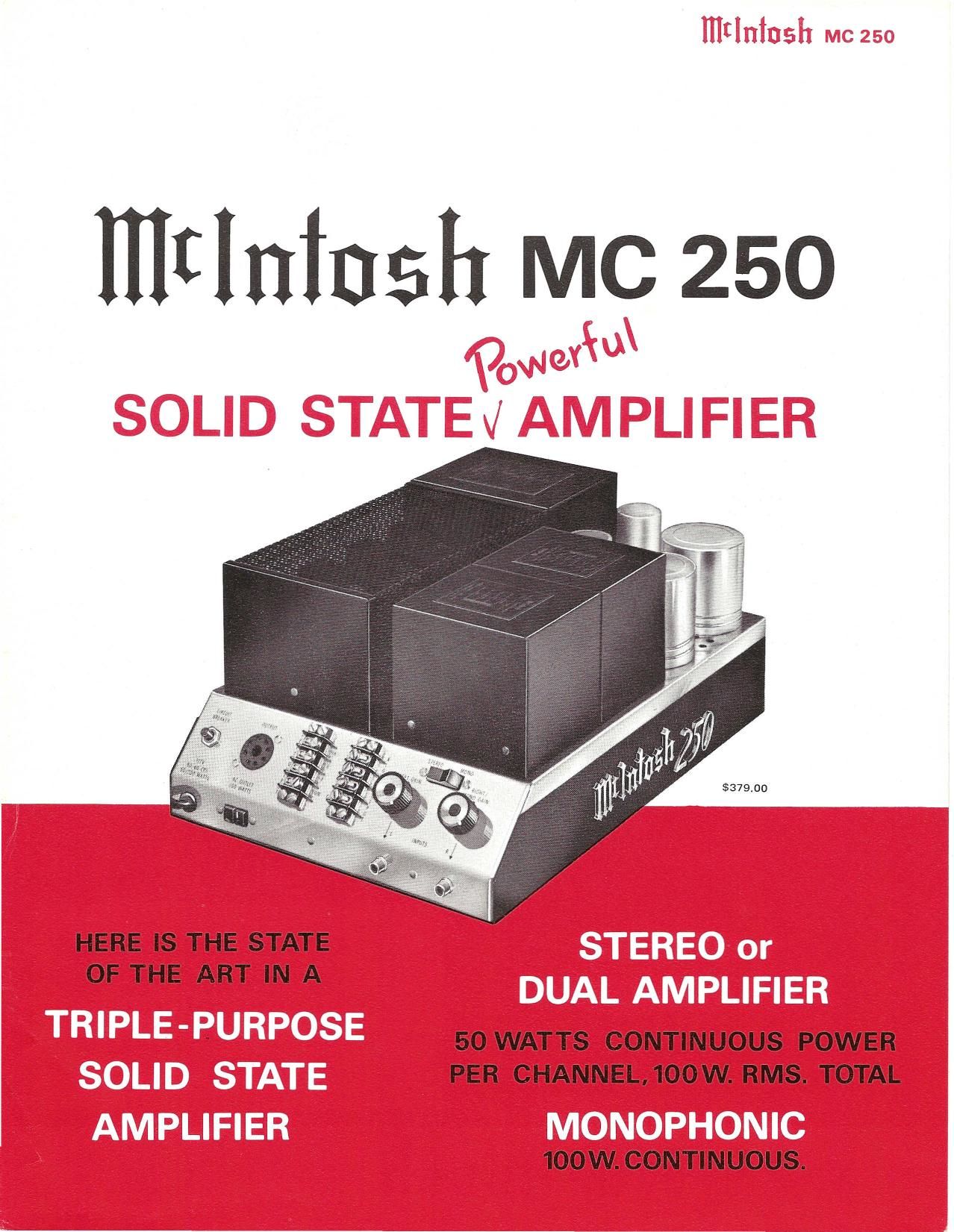

Page 1

$379.00

HERE IS THE STATE 7
OF THE ART IN A r

50 WATTS CONTINUOUS POWER
7/ , 7 PER CHANNEL,100W. RMS. TOTAL

f «A:
M v 1

100W CONTINUOUS

Page 2

McIntosh
gives you

complete protection!

iIlIIIVIIIVIIIIIII

pp(ortottAAAttendWatkadmttxfi*AaA4444A»otttkttobkivvwktkrtato

MC 250 ELECTRICAL SPECIFICATIONS

POWER OUTPUT: 50 watts RMS continuous power per channel, both
both channels operating into a 4 ohm, 8 ohm or 16 ohm load.
100 watts RMS monophonic.

HARMONIC DISTORTION: Less than 0.25% at rated power output.
from 20 to 20,000 Hz. Distortion typically measures less than
0.1% and decreases as output power is reduced.

INTERMODULATION DISTORTION: Less than 025% for any come
binations of frequencies between 20 and 20,000 Hz at 100 peak
watts output per channel or at any level less than 100 peak watts

per channel. Your McIntosh MC 250 can be pro-
FREQUENCY RANGE: At rated output, both channels operating: 3?th by a free three-year factory ser-
+0, -.25 dB 20 through 20,000 Hz. At reduced output, both chan- VICE contract covering parts and [abor

nels operating: +0, -3 dB 5 through 70,000 Hz.

Onl McINTOSH in h entire indus-
OUTPUT IMPEDANCE: Output taps are provided for 4 ohm, 8 ohm Y t e

and 16 ohm loads. Full rated power output is provided at each try guarantees both performance AND
output tap. The 16 ohm output will provide 25 volts RMS tor . |
constant voltage multiple speaker distribution lines. Monophonic» manUfaCturmgt

Output taps are provided for 2, 4 and 8 ohms. Full rated power
output is provided at each output tap. These taps are also available
on the octal socket, left center of control panel.

OUTPUT DAMPING FACTOR: Greater than 15 at 4 ohms, 38 at
8 ohms, and 16.6 at 16 ohms.

INPUT SENSITIVITY AND IMPEDANCE: 0.5 volt WI produce rated ' .
power output: a gain control for each channel allows independent

i adjustment of amplification in each channel. Input impedance is

,r 200,000 ohms. LABORATORY, INC.

HUM AND NOISE: Greater than 90 dB below rated output. 2 CHAMBERS ST., BINGHAMTON, N. Y. 13903
CONTROLS: MONO-STEREO Switch, LEFT GAIN. RIGHT GAIN.

SPECIAL FEATURES: The MC 250 is completely stable when con-
nected to any loudspeaker svstem or even to reactive loads. The
MC 250 has special circuits to prevent damage by short circuit or
open circuit of the output loads, or by any amount of output im-
pedance mismatch. Thermal cutouts are mounted on the output
transistor heat sinks to provide protection against inadequate
ventilation.

Phone 607-7233512

SEMICONDUCTOR COMPLEMENT: 24 silicon transistors FRANCHISED DEALER
23 silicon rectifiers and diodes

POWER REQUIREMENTS: 117 volts AC 50-60 Hz, 50 watts at
zero signal output, 250 watts at rated output.

MC 250 MECHANICAL SPECIFICATIONS
SIZE: 7 1/16 inches high, 10 5/8 inches wide, 15 5/8 inches deep.

CHASSIS: Chrome and black
WEIGHT: 35 lbs, net 40 lbs. in shipping carton.

jay/m 11101110511 MC 250 W/

Printed in U
