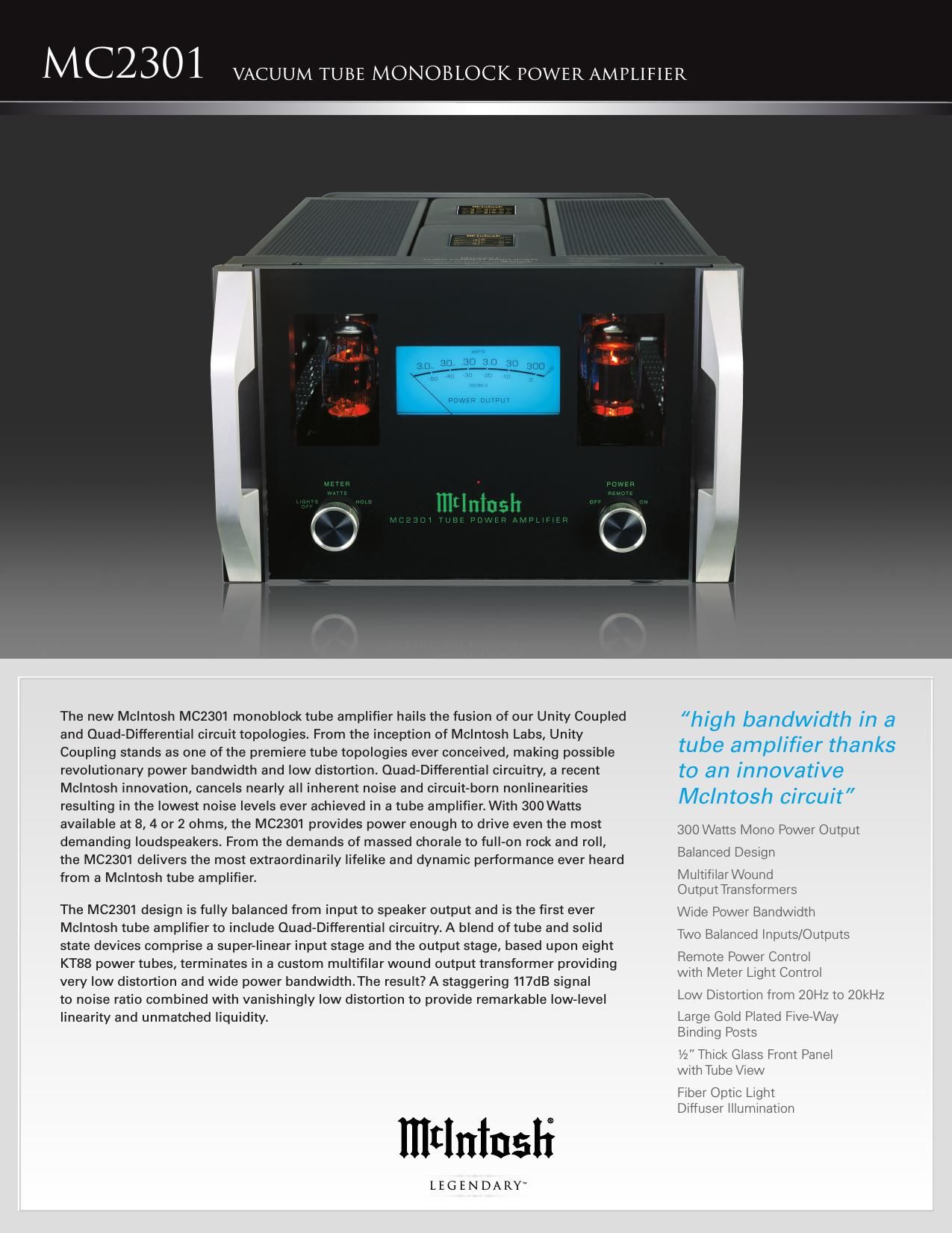

McIntosh MC 2301 Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 www.mcintoshlabs.com 35010901 MC 2301 MC2301 vacuum tube MONOBLOCK power amplifier POWER OUTPUT 300 watts into an 8, 4 or 2 Ohm load is the minimum sine wave continuous average power output. OUTPUT LOAD IMPEDANCE Terminals for 8, 4 and 2 Ohms RATED POWER BAND 20Hz to 20kHz TOTAL HARMONIC DISTORTION 0.5% maximum harmonic distortion at any level from 250 milliwatts to rated power output. FREQUENCY RESPONSE +0, -0.5dB from 20Hz to 20kHz +0, -3.0dB from 10Hz to 100kHz INPUT SENSITIVITY 1.7V Unbalanced 3.4V Balanced A-WEIGHTED SIGNAL-TO-NOISE RATIO 117 below rated output INTERMODULATION DISTORTION 0.5% maximum if instantaneous peak power output does not exceed twice the rated output, for any combination of frequencies from 20Hz to 20kHzWIDE BAND DAMPING FACTOR Greater than 15 INPUT IMPEDANCE 47,000 Ohms TUBE COMPLIMENT 2 - 12AT7 Voltage Amplifiers 8 - KT88 or 6550 Output Tubes POWER REQUIREMENTS 100 volts, 50/60Hz, 6.6 amps 110 volts, 50/60Hz, 6 amps 120 volts, 50/60Hz, 5.5 amps 220 volts, 50/60Hz, 3 amps 230 volts, 50/60Hz, 2.75 amps 240 volts, 50/60Hz, 2.75 amps Standby 1W DIMENSIONS (H x W x D including front panel and cables) 12-5/16 (31.3cm) x 17-3/4 (45.1cm) x 23 (58.4cm) WEIGHT 116 pounds (52.6kg) net 141 pounds (64kg) in shipping carton EXCLUSIVE MCINTOSH POWER ASSURANCE SYSTEM A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. SENTRY MONITOR ® TUBE PROTECTION Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level – resets automatically. UNITY COUPLED OUTPUT CIRCUIT ® Output power is taken from both the plate and cathode of the output tubes. Conventional designs only take output from the latter. This allows ½ the turns ratio, or ¼ the impedance transformation of conventional designs. The result is much lower distortion, wider bandwidth and increased loudspeaker damping factor. WATTMETER Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy. FOR THE CONSUMERS PROTECTION In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
