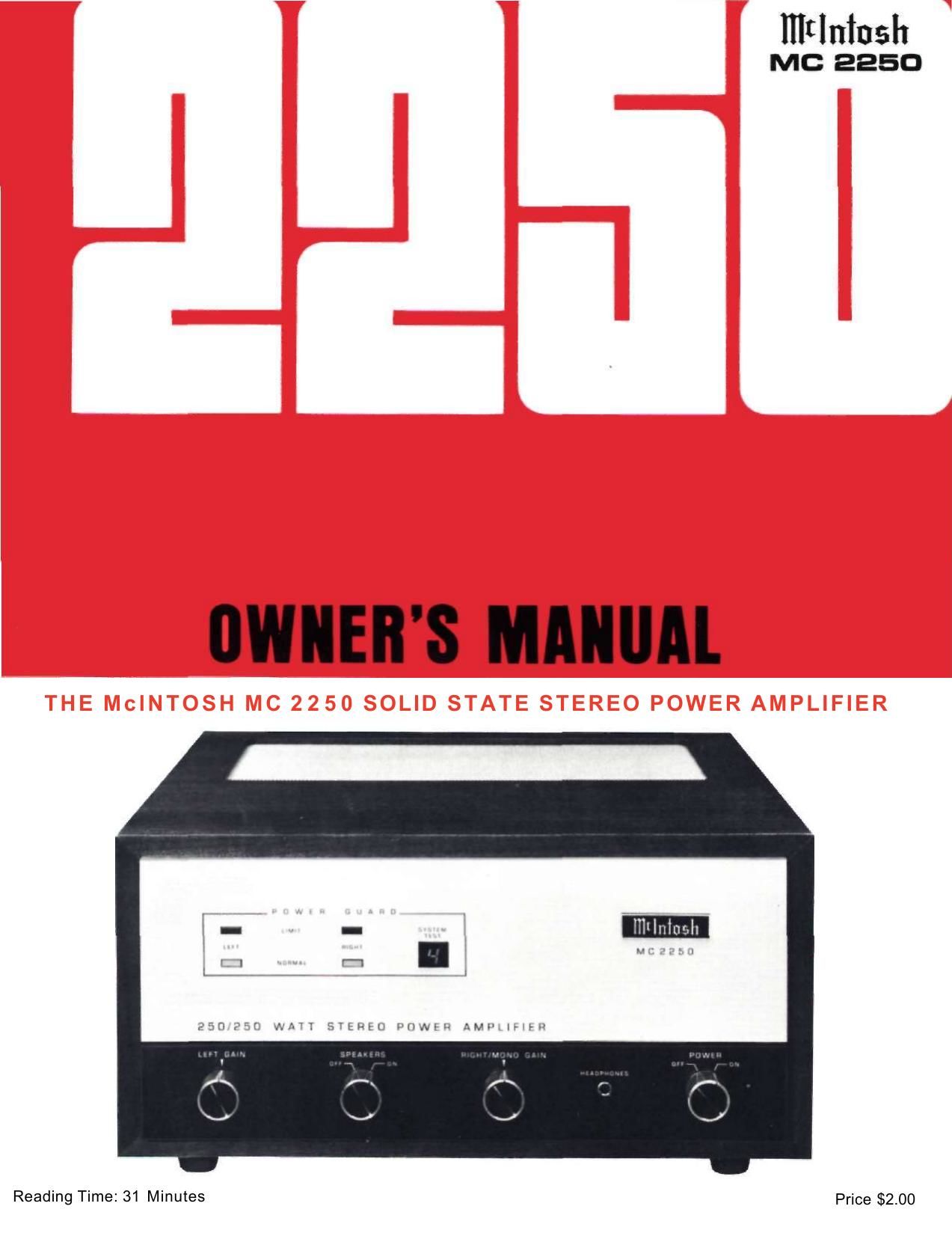

McIntosh MC 2250 Owners Manual
This is the 20 pages manual for McIntosh MC 2250 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MC 2250 Owners Manual (Ocr-read)
Page 1
VARIOUS REGULATORY AGENCIES REQUIRE THAT WE BRING THE FOLLOWING INFORMATION TO YOUR ATTENTION. PLEASE READ IT CAREFULLY. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. The Mclntosh you have purchased is a Model MC 2250. It has a serial number located on the rear panel of the chassis. Record that serial number here: The model, serial number and purchase date are im portant to you for any future service. Record the pur chase date here: Upon application, Mclntosh Laboratory provides a Three-Year Service Contract. Your Mclntosh Authorized Service Agency can expedite repairs when you provide the Service Contract with the instrument for repair. To assist, record your Service Contract number here: Serial Number Purchase date Service Contract Number
Page 2
Your MC 2250 Stereo Power Amplifier is designed to perform to its specifications for many years. If you have any questions, please contact: CUSTOMER SERVICE Mclntosh Laboratory Inc. 2 Chambers Street Binghamton, New York 13903-9990 Phone: 607-723-3512 MclNTOSH THREE YEAR SERVICE CONTRACT An application for A THREE YEAR SERVICE CONTRACT is included with this manual. The terms of the contract are: 1. Mclntosh will provide all parts, materials and labor needed to return the measured performance of the instrument to the original performance limits. The SER VICE CONTRACT does not cover any shipping costs to and from the authoriz ed service agency or the factory. 2. Any Mclntosh authorized service agency will repair Mclntosh instruments at nor mal service rates. To receive service under the terms of the SERVICE CON TRACT, the SERVICE CONTRACT CER TIFICATE must be presented when the instrument is taken to the service agency. 3. Always have service done by a Mclntosh authorized service agency. If the instrument is modified or damaged as a result of unauthorized repair, the SERVICE CONTRACT will be cancelled. Damage by improper use or mishandl ing is not covered by the SERVICE CONTRACT. 4. The SERVICE CONTRACT is issued to you as the original purchaser. To pro tect you from misrepresentation, this contract cannot be transferred to a se cond owner. 5. To receive the SERVICE CONTRACT, your purchase must be made from a Mclntosh franchised dealer. 6. Your completely filled in application for the SERVICE CONTRACT must be post marked within 30 days of the date of purchase of the instrument. 7. To receive the SERVICE CONTRACT, all information on the application must be filled in. The SERVICE CONTRACT will be issued when the completely filled in application is received by Mclntosh Laboratory Incorporated in Binghamton, New York. 8. Units in operation outside the United States and Canada are not covered by the Mclntosh SERVICE CONTRACT, ir respective of the place of purchase. Nor are units acquired outside the U.S.A. and Canada, the purchasers of which should consult with their dealer to as certain what, if any, service contract or warranty may be available locally. Copyright 1982 © by Mclntosh Laboratory Inc. -1- Contents SERVICE 1 INSTALLATION 2 HOW TO CONNECT 4 FRONT PANEL CONTROLS AND HOW TO USE THEM 9 REAR PANEL INFORMATION 11 PERFORMANCE LIMITS 12 PERFORMANCE CHARTS 13 TECHNICAL DESCRIPTION 15 BLOCK DIAGRAM 17 Take Advantage of 3 years of Contract Service... Fill in the Application NOW.
