McIntosh MC 2105 Owners Manual

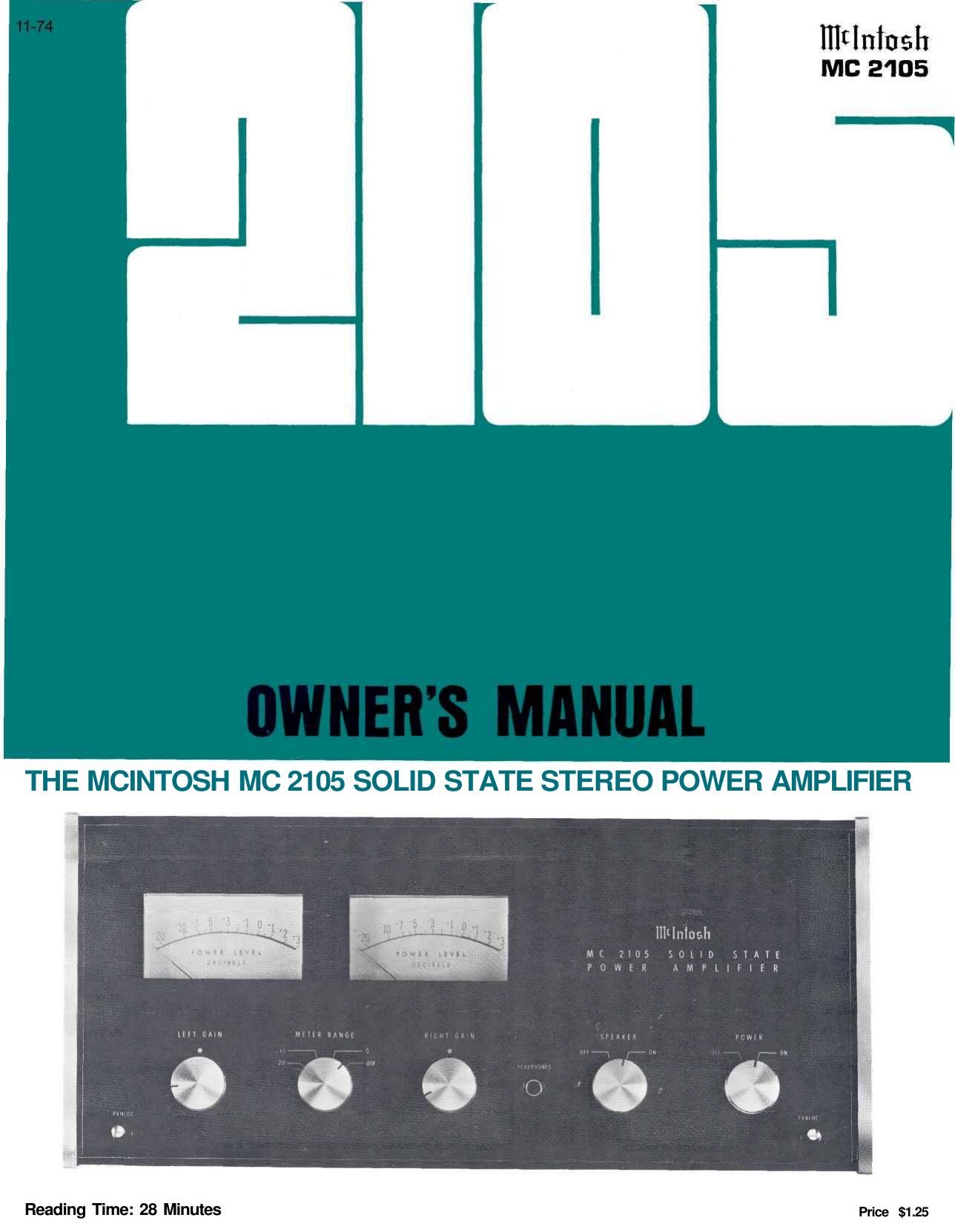

Page 1

Page 2

Your MC 2105 Stereo Power Amplifier will give you many years of pleasant and satisfactory performance. If you have any questions, please contact: CUSTOMER SERVICE Mclntosh Laboratory Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3512 WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Take Advantage of 3 years of FREE Factory Service . . . Fill in the Application NOW. SERVICE CONTRACT 1 INSTALLATION 2,3 HOW TO CONNECT 4,5 HOW TO USE THE DYNAMIC PEAK LOCKING METERS ... 6 FRONT PANEL INFORMATION ... 8 PERFORMANCE LIMITS AND RATINGS 9 TYPICAL PERFORMANCE CHARTS .. 10 TECHNICAL DESCRIPTION 11 BLOCK DIAGRAM 12 THREE YEAR FACTORY SERVICE CONTRACT An application for a FREE THREE YEAR FACTORY SERVICE CONTRACT is included with this manual. The terms of the contract are: 1. Mclntosh will provide all parts, materials and labor needed to return the measured perform- ance of the instrument to the original per- formance limits free of any charge. The SERVICE CONTRACT does not cover any ship- ping costs to and from the authorized service agency or the factory. 2. Any Mclntosh authorized service agency will repair all Mclntosh instruments at normal service rates. To receive the free service under the terms of the SERVICE CONTRACT, the SERVICE CONTRACT CERTIFICATE must ac- company the instrument when taken to the service agency. 3. Always have service done by a Mclntosh authorized service agency. If the instrument is modified or damaged, as a result of un- authorized repair the SERVICE CONTRACT will be cancelled. Damage by improper use or mishandling is not covered by the SERV- ICE CONTRACT. 4. The SERVICE CONTRACT is issued to you as the original purchaser. To protect you from misrepresentation this contract cannot be transferred to a second owner. 5. For your protection Mclntosh selects its dealers carefully. Only one dealer in ten qualifies for a Mclntosh franchise. To receive the SERVICE CONTRACT your purchase must be made from a Mclntosh franchised dealer. 6. Your completely filled in application for a SERVICE CONTRACT must be postmarked within 30 days of the date of purchase of the instrument. 7. To receive the SERVICE CONTRACT all in- formation on the application must be filled in. The SERVICE CONTRACT will be issued when the completely filled in application is received at Mclntosh Laboratory Incor- porated in Binghamton, New York. Copyright © 1970 By Mclntosh Laboratory Inc. 1 CONTENTS
