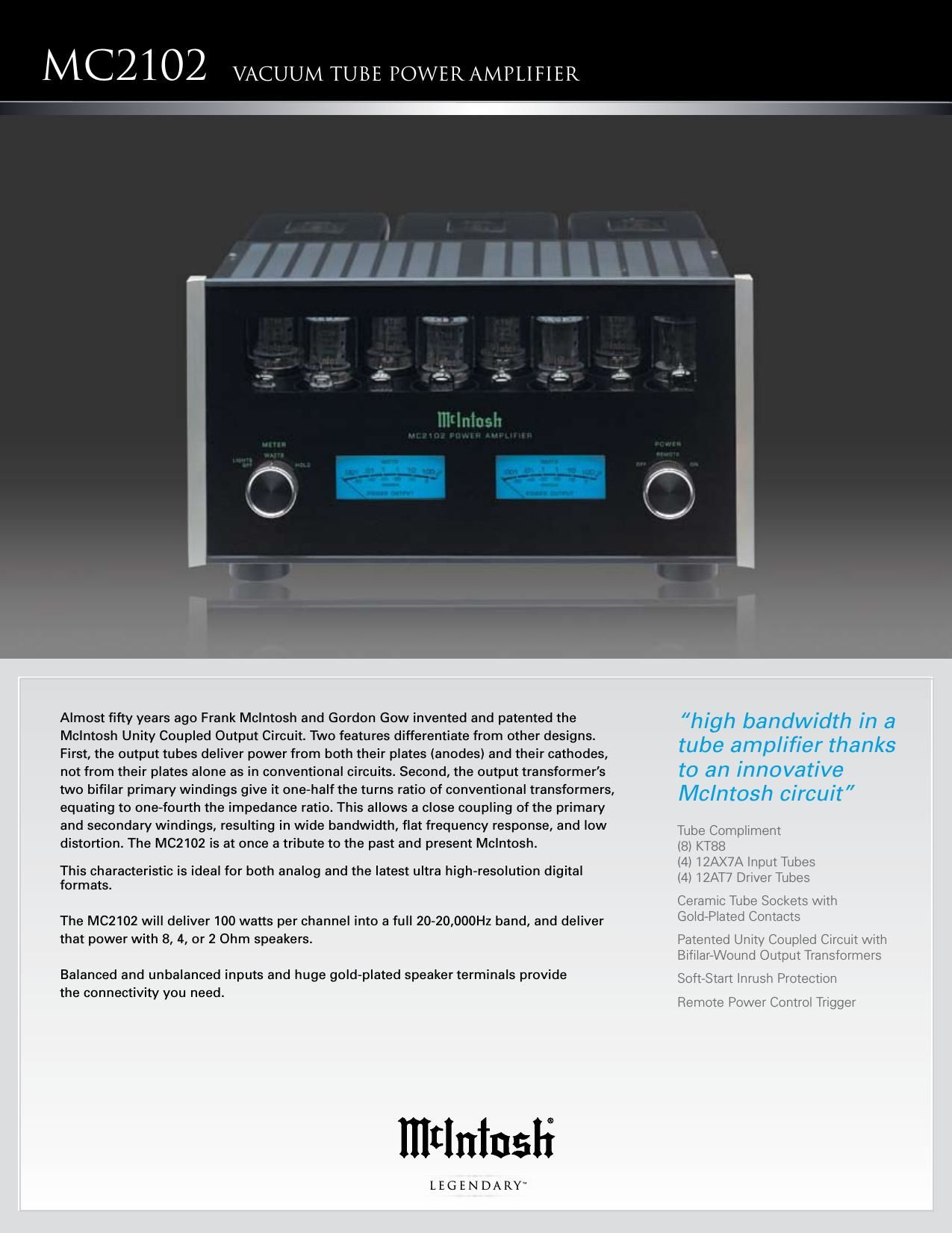

McIntosh MC 2102 Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 www.mcintoshlabs.com 35006900 MC 2102 Mc2102 vacuum tube power amplifier POWER OUTPUT STEREO Minimum sine wave continuous average power output per channel, all channels operating is: 100 watts into 2 Ohm load 100 watts into 4 Ohm load 100 watts into 8 Ohm load POWER OUTPUT MONO PARALLEL Minimum sine wave continuous average power output is: 200 watts into 1 Ohm, 2 Ohm or 4 Ohm load. POWER OUTPUT MONO BRIDGE Minimum sine wave continuous average power output is: 200 watts into 4 Ohm, 8 Ohm or 16 Ohm load RATED POWER BAND 20Hz to 20kHz TOTAL HARMONIC DISTORTION 0.05% max at any power level from 250 milliwatts to rated power output is: 0.5% for 2, 4 or 8 Ohm loads (stereo) 0.5% for 1, 2 or 4 Ohm loads (mono parallel) 0.5% for 4, 8, or 16 Ohm loads (mono bridge) FREQUENCY RESPONSE 20Hz to 20kHz, +0 / -0.25dB 10Hz to 100kHz, +0 / -3dB SENSITIVITY 2.5V unbalanced inputs 5.0V balanced inputs A-WEIGHTED SIGNAL-TO-NOISE RATIO 100dB below rated output WIDE BAND DAMPING FACTOR Greater than 18OUTPUT LOAD IMPEDANCE Terminals for 2, 4, or 8-Ohms (stereo) Terminals for 1, 2, or 4-Ohms (mono parallel) Terminals for 4, 8, or 16-Ohms (mono bridged) INTERMODULATION DISTORTION SMPTE 0.5% maximum if instantaneous peak output does not exceed twice the output rating. INPUT IMPEDANCE 20,000 Ohms (unbalanced) 40,000 Ohms (balanced) POWER REQUIREMENTS 120V, 50/60Hz, 5.0A OVERALL DIMENSIONS (H x W x D including feet and knobs) 10-1/8 (25.72cm) x 17-3/4 WEIGHT 88 lbs. (40.87kg) net 121lbs. (54.9kg) boxed ADDITIONAL SPECIFICATION Designed by McIntosh co-founder Sidney A. Corderman and the McIntosh Engineering Staff Stereo: 100 watts per channel (8/4/2 Ohm) Mono parallel: 200 watts per channel (4/2/1 Ohms) Mono bridged: 200 watts per channel (16/8/4 Ohms) Air-pipe cooling at base for output tubes Gold-plated input jacks Gold-plated 200A multi-way output binding posts CUSTOM OUTPUT TRANSFORMER Unique McIntosh-wound transformer delivers the full rated amplifier output with the least possible distortion and maximum bandwidth into loudspeaker impedances of 2, 4, or 8 Ohms; you get all the power you paid for and the freedom to choose any loudspeaker. WATTMETER Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy. BALANCED INPUTS Allows the use balanced cables for 40dB better rejection of induced noise. MONO MODES Mono-Bridge and Mono-Parallel modes enable the MC2102 to deliver a full 200 watts as a mono amplifier into 1,2,4,8 or 16 Ohm loads. FOR THE CONSUMERS PROTECTION In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or prod- ucts that have had their serial number altered or defaced.
