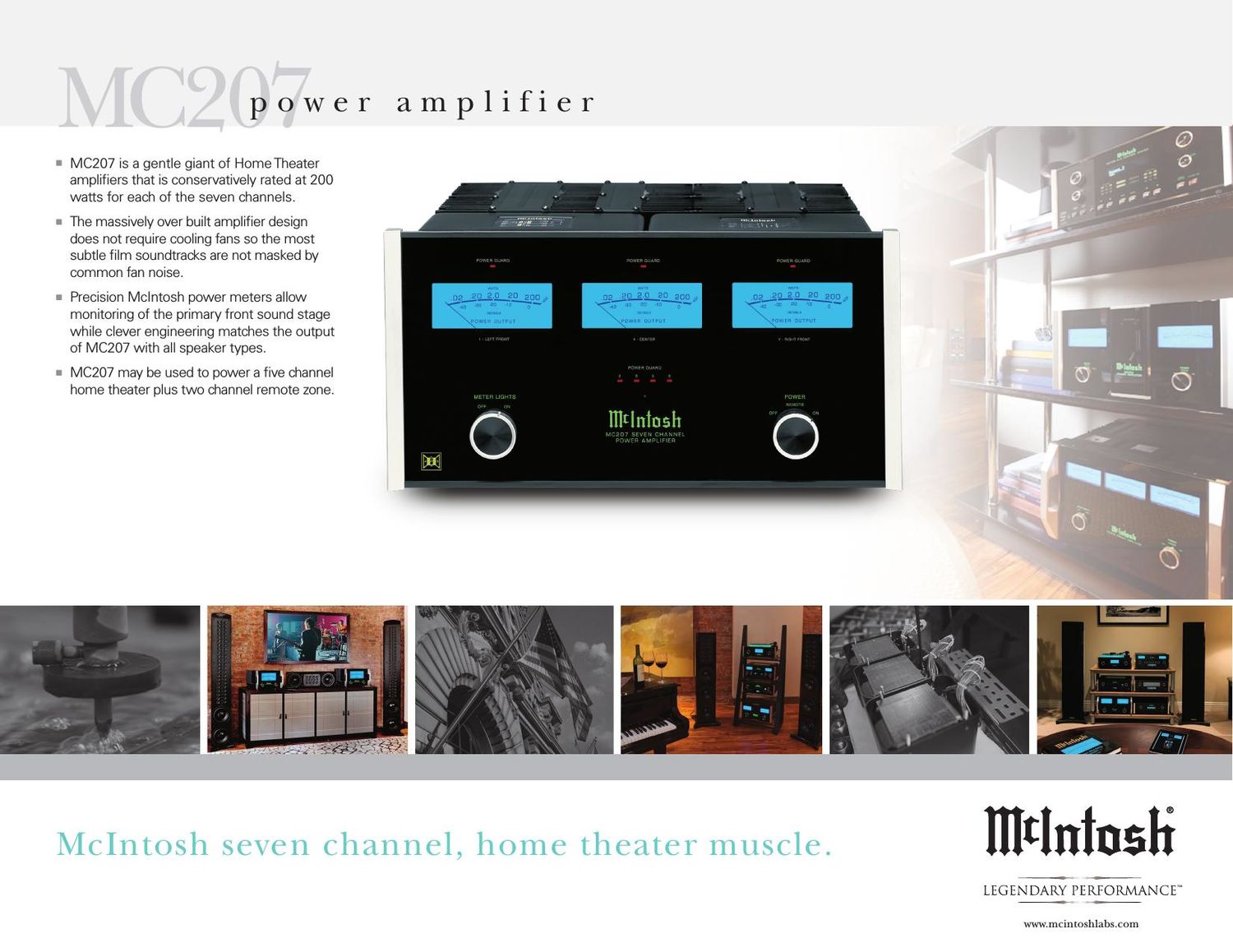

McIntosh MC 207 Brochure

Page 1

MC2 07 power amplifier www.mcintoshlabs.com Power Output Minimum sine wave continuous average power output per channel, all channels operating is 200 watts into a 4 ohm or 8 ohm load. Rated Power Band 20Hz to 20kHz Total Harmonic Distortion Maximum Total Harmonic Distortion at any power level from 250 milliwatts to rated power output is 0.005% for 4 or 8 ohm loads. Overall DimensionsWidth is 17-1/2 inches (44.45cm) Height is 9-7/16 inches (23.97) including feet Depth is 21 inches (53.3cm) including the front panel and cables Weight 83 pounds (37.6 kg) net, 116 pounds (52.6 kg) in shipping carton Dynamic Power Manager ® (DPM) By matching the characteristics of the output stage to 4 or 8 Ohm loudspeakers DPM insures the most efficient power transfer, reduces distortion, and promotescool operation; with DPM you get all the power you paid for. For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. Companion Products The MX151 A/V Control Center, MVP891 Audio Video Player, MR88 AM/FM/XM/HD Tuner, MPC1500 Power Controller, XR200 Loudspeaker, XCS200 Center Channel Loudspeaker, CS100 Ceiling Loudspeaker are logical companions for the MC207 Power Amplifier. Your authorized dealer can provide additional information. To learn more, please call us at 1.800.538.6576. Exclusive McIntosh Power Assurance System A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. Power Guard ® A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion. Sentry Monitor Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level-resets automatically. 35016200
