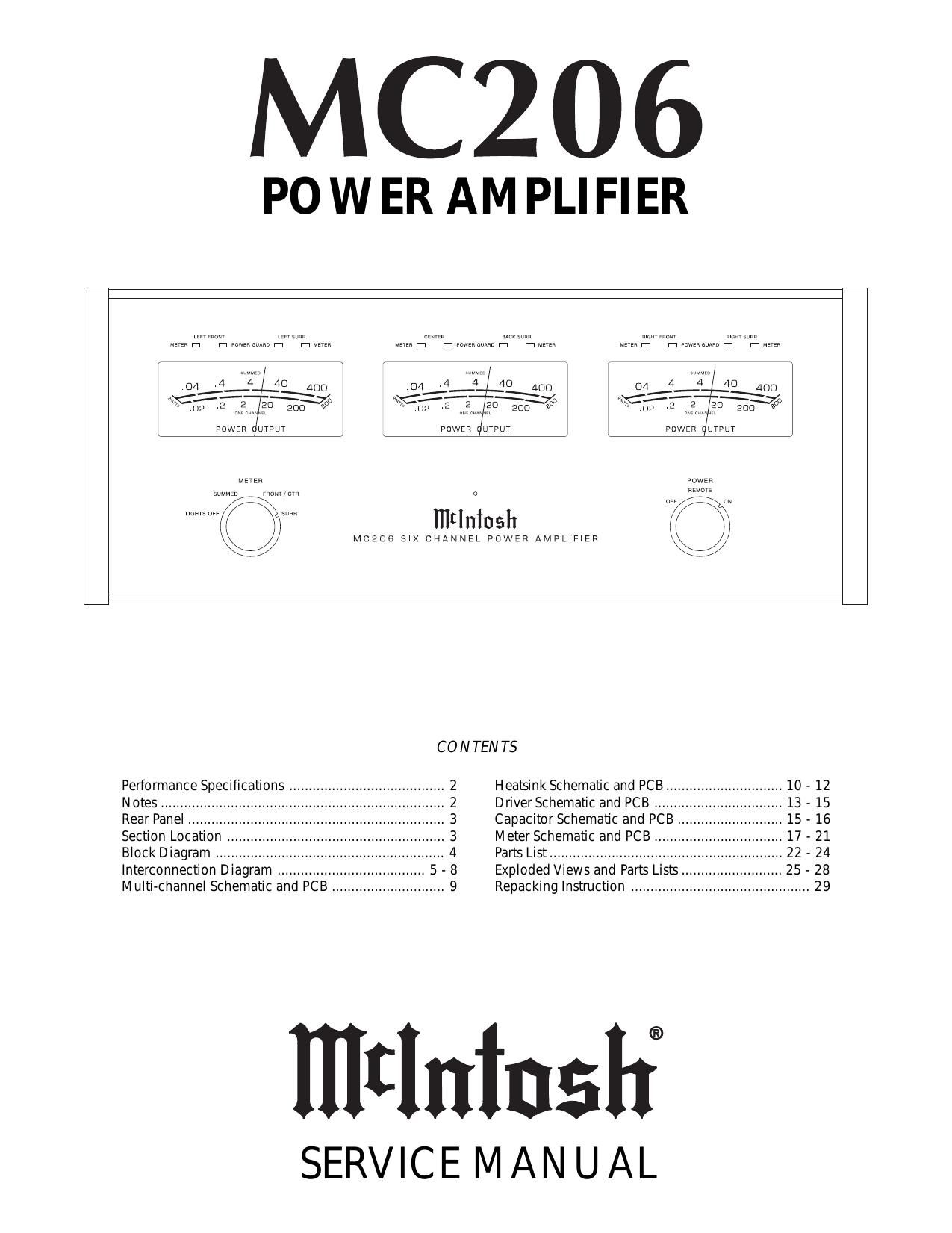

McIntosh MC 206 Service Manual
This is the 14 pages manual for McIntosh MC 206 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MC 206 Service Manual (Ocr-read)
Page 1
PERFORMANCE SPECIFICATIONS 2 1. The heavy lines on the schematic denote the primary signal path. 2. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are +/-10% with respect to ground. A high impedance (10 megaohm) voltmeter must be used. 3. Unless otherwise specified: a. Resistor values are in ohms. b. Capacitor values are microfarads (uF). c. Inductor values are in microhenries (uH).4. On PC board drawings, Square pad indicates: a. Polarized Capacitors - Positive b. Diodes - Cathode c. Others - Pin 1 5.WARNING Parts marked with the symbol have critical characteristics. Use only replacement parts recom- mended by the manufacturer. NOTES Power Output Minimum sine wave continuous average power output per channel, all channels operating is: 200 watts into 4 ohm load 120 watts into 8 ohm load Rated Power Band 20Hz to 20,000Hz Total Harmonic Distortion Maximum Total Harmonic Distortion at any power level from 250 milliwatts to rated power output is: 0.005% for 4 or 8 ohm loads Dynamic Headroom 1.6dB Frequency Response +0, -0.25dB from 20Hz to 20,000Hz +0, -3dB from 10Hz to 100,000Hz Sensitivity 1 volt A-Weighted Signal To Noise Ratio 92dB (113dB below rated output) Intermodulation Distortion Maximum Intermodulation Distortion if instan- taneous peak output per channel does not exceed twice the rated output, for any combination of frequencies from 20Hz to 20,000Hz, with all channels operating is: 0.005% for 4 or 8 ohm loadsInput Impedance 10,000 ohms Wide Band Damping Factor 100 at 4 ohms 200 at 8 ohms Power Requirements 100 Volts, 50/60Hz at 13.2 amps 110 Volts, 50/60Hz at 12.0 amps 120 Volts, 50/60Hz at 11.0 amps 220 Volts, 50/60Hz at 6.0 amps 230 Volts, 50/60Hz at 6.0 amps 240 Volts, 50/60Hz at 6.0 amps Note: Refer to the rear panel of the MC206 for the correct voltage. Dimensions Front Panel: 17-1/2 inches (44.45cm) wide, 7-1/8 inches (18.10cm) high. Depth behind front mounting panel is 18 inches (45.72cm). Clearance required in front of the Front Panel is 1 inch (2.54cm) for knobs. Weight 57 pounds (25.9kg) net, 76 pounds (34.5kg) in shipping carton
Page 2
3 MC206 REAR PANEL SECTION LOCATIONS TOP VIEW WITH COVER REMOVED
Page 10
2526 MC206 EXPLODED VIEW MC206
