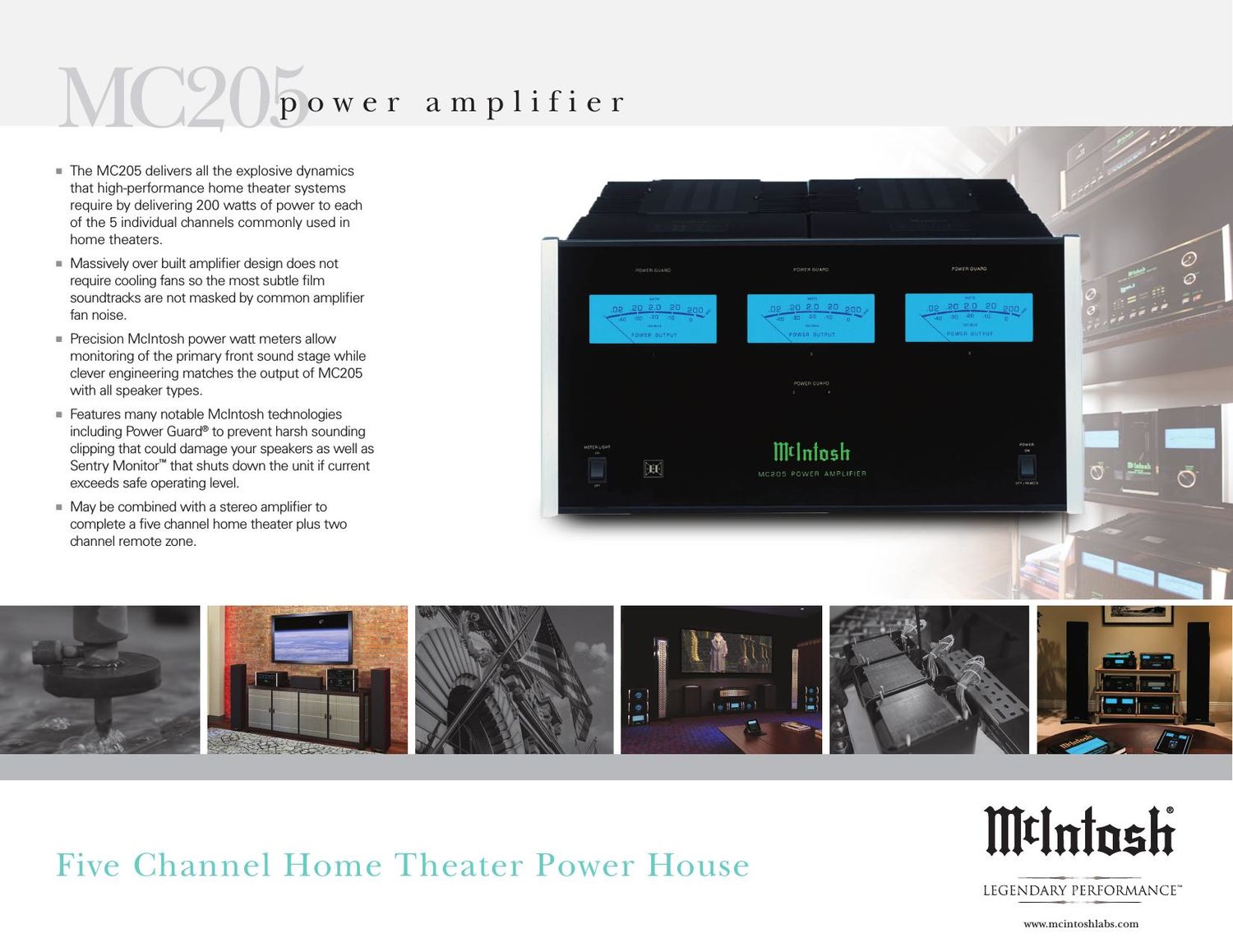

McIntosh MC 205 Brochure

Page 1

www.mcintoshlabs.com Power Output: Minimum sine wave continuous average power output per channel, all channels operating is: 200 Watts into a 4 Ohm or 8 Ohm load. Output Load Impedance: 8 and 4 Ohms Rated Power Band: 20Hz to 20kHz Total Harmonic Distortion: 0.005% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20kHz. Overall Dimensions (W x H x D): 17-1/2" (44.45cm) x 9-7/16" (23.97cm) including feet x 21" (53.3cm) including the front panel and cables Weight: 81 lbs. (44.2kg) net 114 lbs. (51.8kg) in shipping carton Dynamic Power Manager ® (DPM): By matching the characteristics of the output stage to 4 or 8 Ohm loudspeakers, DPM insures the most efficient power transfer, reduces distortion, and promotescool operation; with DPM you get all the power you paid for. Wattmeter: Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy. For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased from an Authorized McIntosh Dealer; and, with certain limited exceptions may only be purchased over-the-counter or delivered and installed by the Authorized McIntosh Dealer. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer, or that have had their serial numbers altered or defaced. Companion Products The McIntosh MX160 A/V Processor, MVP901 Audio Video Player, MR88 AM/FM/HD Tuner, MPC1500 Power Controller, XR100 Loudspeaker, LCR80 Center Channel Loudspeaker, XR50 Bookshelf Loudspeaker and the CS100 Ceiling Loudspeaker are logical companions for the MC205 Power Amplifier. Your authorized dealer can provide additional information. To learn more, please call us at 1.800.538.6576. Exclusive McIntosh Power Assurance System: A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. Power Guard ®: A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion. Sentry Monitor: Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level-resets automatically. 35100202 MC2 05 power amplifier
