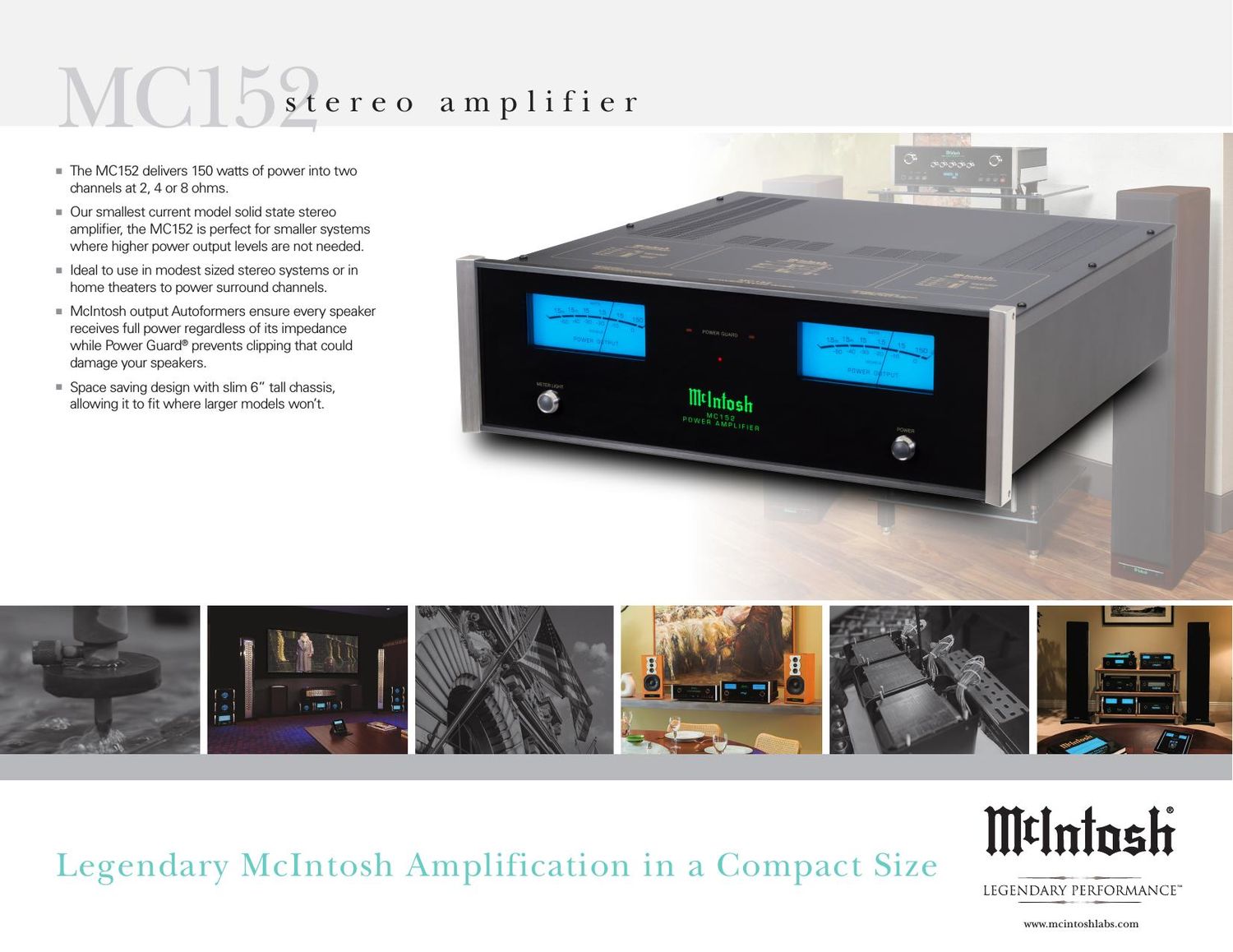

McIntosh MC 152 Brochure

Page 1

www.mcintoshlabs.com Companion ProductsThe McIntosh C48 Preamplifier, MR88 AM/FM/HD Tuner, MCD550 SACD/CD Player, MT5 Turntable, XR100 Loudspeakers, MEN220 Room Correction System and MPC1500 Power Controller are logical companions for the MC152 Stereo Amplifier. Your Authorized Dealer can provide additional information on other McIntosh products. To learn more, please call us at 1.800.538.6576. 35102500 MC152 stereo amplifier Power Output:150 Watts minimum sine wave continuous average power output per channel with both channels operating Output Load Impedance:Terminals for 8, 4 and 2 Ohms Rated Power Band:20Hz to 20kHz Total Harmonic Distortion:0.005% maximum harmonic distortion at any level from 250 milliwatts to rated power output Overall Dimensions (W x H x D):17-1/2 (44.45cm) x 6 (15.24cm) (including feet) x 21 (50.8cm) (including front panel and cables) Weight:75 lbs (34kg) net, 85 lbs (38.6kg) in shipping carton Output Autoformer:Unique McIntosh technology delivers the full rated amplifier output with the least possible distortion into loudspeaker impedances of 2, 4, or 8 Ohms; you get all the power you paid for and the freedom to choose any loudspeaker. Wattmeter:Swift, accurate response reveals program peaks to make staying within the power limits of your loudspeakers is easy. For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. Exclusive McIntosh Power Assurance System:A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. Power Guard ®: A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion. Sentry Monitor:Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level; resets automatically.
