McIntosh MC 1201 Brochure

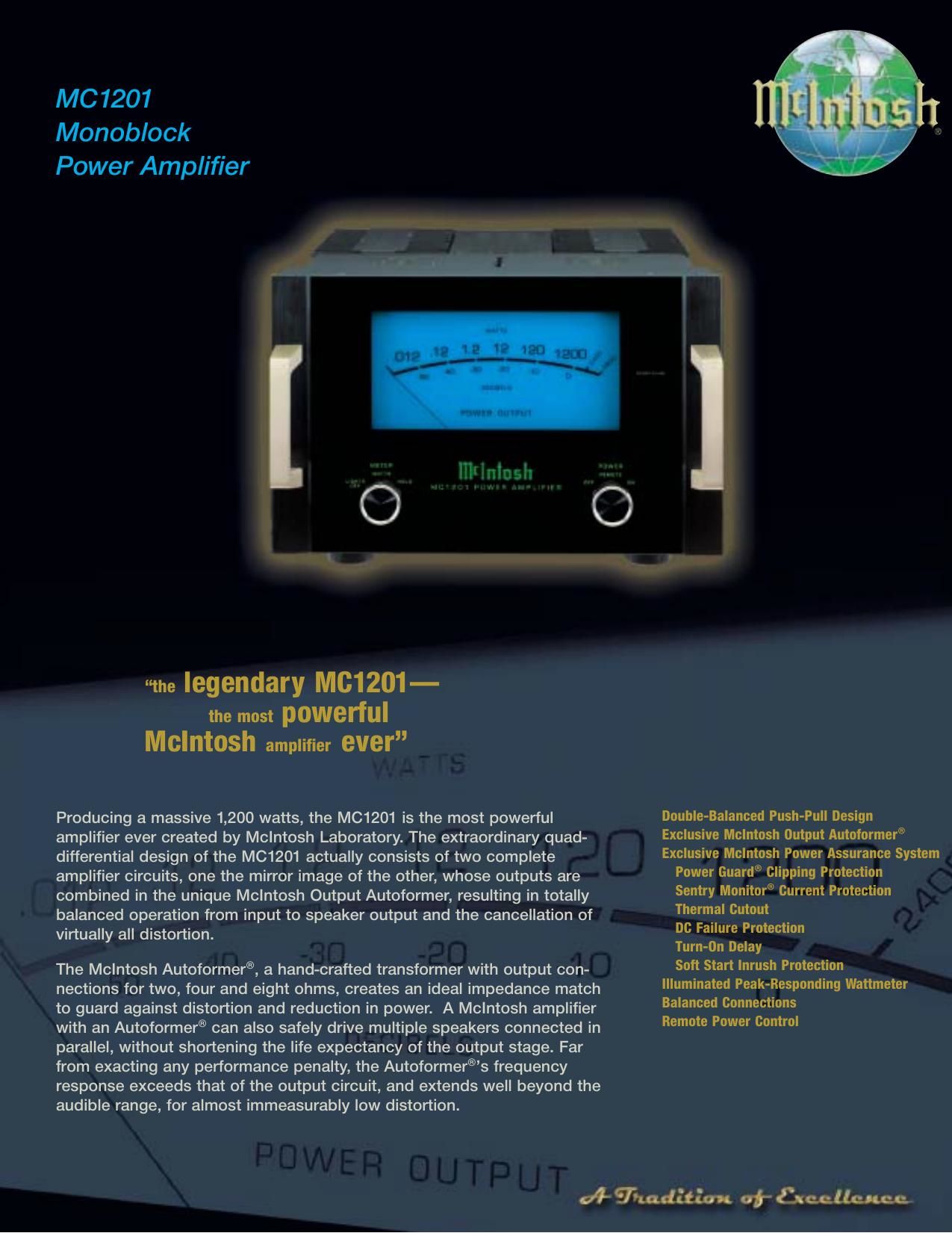

Page 1

McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549- www.mcintoshlabs.com For the Consumers Protection: In order to ensure highest customer satisfaction, new McIntosh products may only be purchased over the counter at Authorized McIntosh Dealers and not by mail, telephone or via the inter- net. Products purchased by mail, telephone or via the internet are presumed to be used and are not covered by any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer or products that have had their serial number altered or defaced. MC1201 Monoblock Power Amplifier EXCLUSIVE MCINTOSH POWER ASSURANCE SYSTEM A collection of technologies that enhance performance and reliability and protect the amp and the loudspeakers. Power Guard
clipping protection A waveform comparson circuit continuously monitors both input and output signals and dynamically adjusts the input level to insure maximum output power while preventing harsh sounding clipping distortion. Sentry Monitor
current protection continually senses the voltage and current of the output stage and confines it to a safe limit, without limiting power output. Thermal cutouts protect your amp from overheating if cooling air is blocked and transistors become too hot. DC failure protectionguards speakers against output circuit failure. The output autoformer prevents DC from reaching the speaker. Turn-on delaydelays operation for about two seconds after turn-on, to silence any pops or thumps generated by other equipment. Soft Start inrush protection eliminates component stress during turn-on. Thermistors in the power transformer act as a cushion against inrush current. Soft Start is one of many details that contribute to the remarkable longevity of McIntosh equipment. Double balanced push-pull design 1 x 1,200 watts (8/4/2 ohms) High output current capability (> 200 amps) Balanced and unbalanced inputs Exclusive McIntosh output autoformer Wide power bandwidth, ultra-low distortion Exclusive McIntosh Power Assurance System Illuminated peak-responding wattmeter with hold Regulated illumination Remote power control Massive gold-plated five-way output binding posts Fanless convection cooling Modular construction with stainless steel chassis 1/2"-thick glass front panel with illuminated nomenclature FREQUENCY RESPONSE 20Hz to 20kHz, +0 / -0.25dB 10Hz to 100kHz, +0 / -3.0dB TOTAL HARMONIC DISTORTION 0.005% max. at any level from 250mW to rated power output INTERMODULATION DISTORTION SMPTE 0.005% maximum if instantaneous peak output does not exceed twice the output rating A-WEIGHTED SIGNAL-TO-NOISE RATIO Bal.: 124dB below rated output Unbal.: 120dB below rated output RMS POWER OUTPUT (8/4/2 OHMS) 1,200W min. sine wave continuous average power output from 20Hz to 20kHz INPUT IMPEDANCE 10k ohms OUTPUT LOAD IMPEDANCE Terminals for 8, 4, or 2 ohms INPUT SENSITIVITY 2.45V unbalanced 4.9V balanced WIDE BAND DAMPING FACTOR 100 (8 ohms) DYNAMIC HEADROOM 2.1dB RATED POWER BAND 20Hz to 20kHz POWER GUARD
Clipping is prevented and THDdoes not exceed 2% with up to14dB overdrive at 1kHz POWER REQUIREMENTS 120V 50/60Hz, 15A DIMENSIONS (H X W X D) inch: 11 x 17.75 x 19.63 cm: 27.9 x 45 x 49.9 Panel clearance required in front of mounting panel is 1 3⁄4inches (4.5 cm) for handles WEIGHT 147 lbs. (66.8kg) net 172 lbs. (78.2kg) boxed 9.02.MC1201.20k.MSP 35001800
