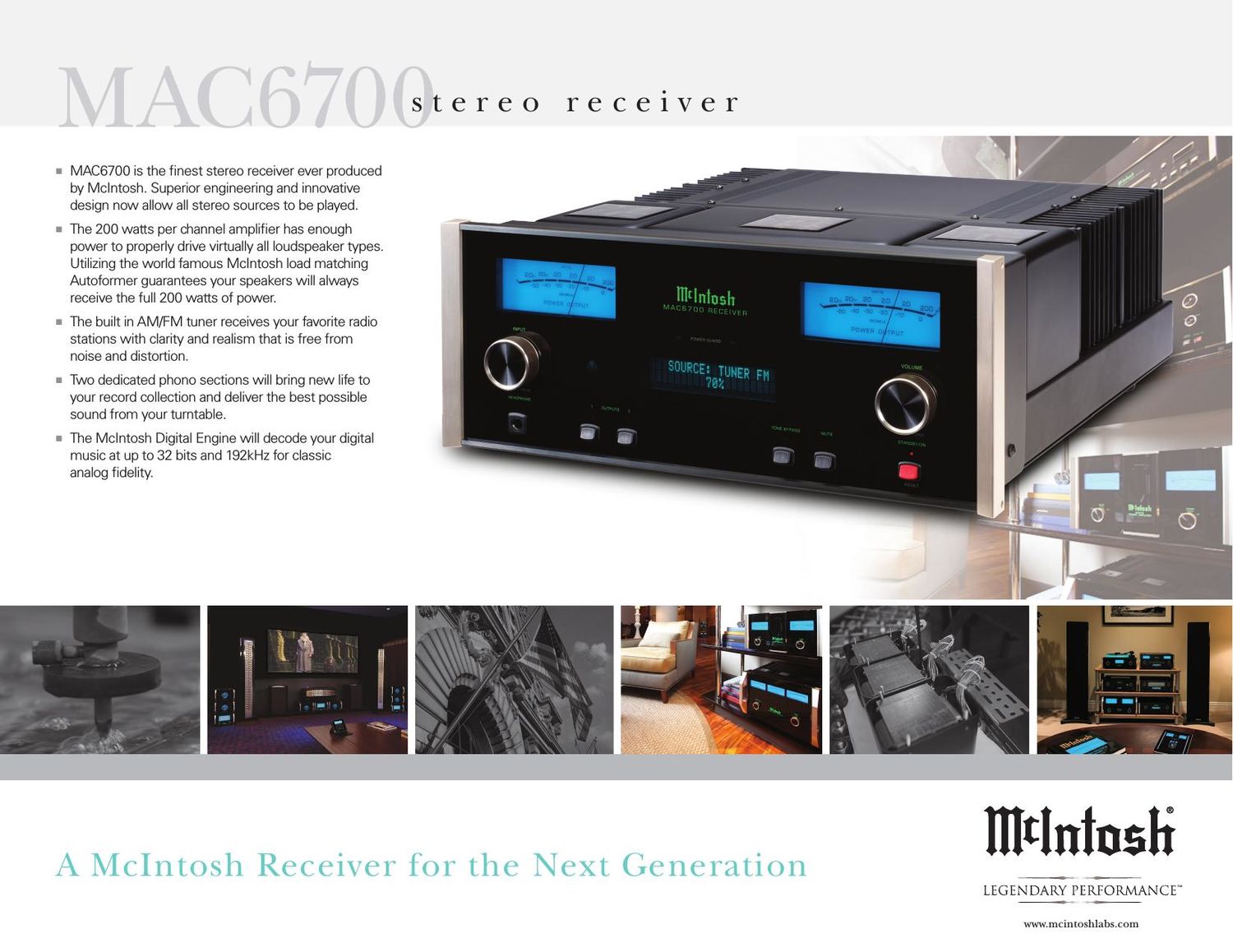

McIntosh MAC 6700 Brochure

Page 1

www.mcintoshlabs.com Amplifier Power Output:200 watts per channel with both channels operating into 2, 4 or 8 Ohms, with Power Meters Total Harmonic Distortion:0.005% maximum from 20Hz to 20kHz Preamplifier Inputs:Five high level unbalancedOne high level balancedTwo Phono: one Moving Coil adjustable loading, one Moving MagnetThree digital inputs Tuner Section:AM/FM features the same performance as a stand alone McIntosh tunerPresets: 20 each for AM and FMIncluded remote AM antenna for the finest AM reception Companion ProductsThe McIntosh MCD550 SACD/CD Player and XR50 Loudspeakers are logical companions for the MAC6700 Receiver. Your authorized dealer can provide additional information. To learn more, please call us at 1.800.538.6576. Digital Section:Three digital inputs: one dedicated USB, and two assignable: one coax and one optical PCMMcIntosh Digital Engine is 32 bit 192kHz, USB 2.0 asynchronous Tone Controls:Bass and Treble, +/- 12dB High Drive Headphone Amplifier:All headphones, from 20 to 600 Ohms Home Theater Pass Through:Allows interfacing with a Home Theater system Overall Dimensions (W x H x D):17-1/2 (44.5cm) x 7-5/8 (19.37cm) x 22 (55.88cm) including knobs, connectors and cables Weight:75 lbs (34.1kg) net,93 lbs (42.3kg) in shipping carton 3 5 1015 01 M AC 670 0 stereo receiver For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. Available in the US and Canada only. Other countries please see the MA6700 Integrated Amplifier with optional tuner.
