McIntosh ma 6900 Voltage Conversion
This is the 9 pages manual for McIntosh ma 6900 Voltage Conversion.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh ma 6900 Voltage Conversion (Ocr-read)

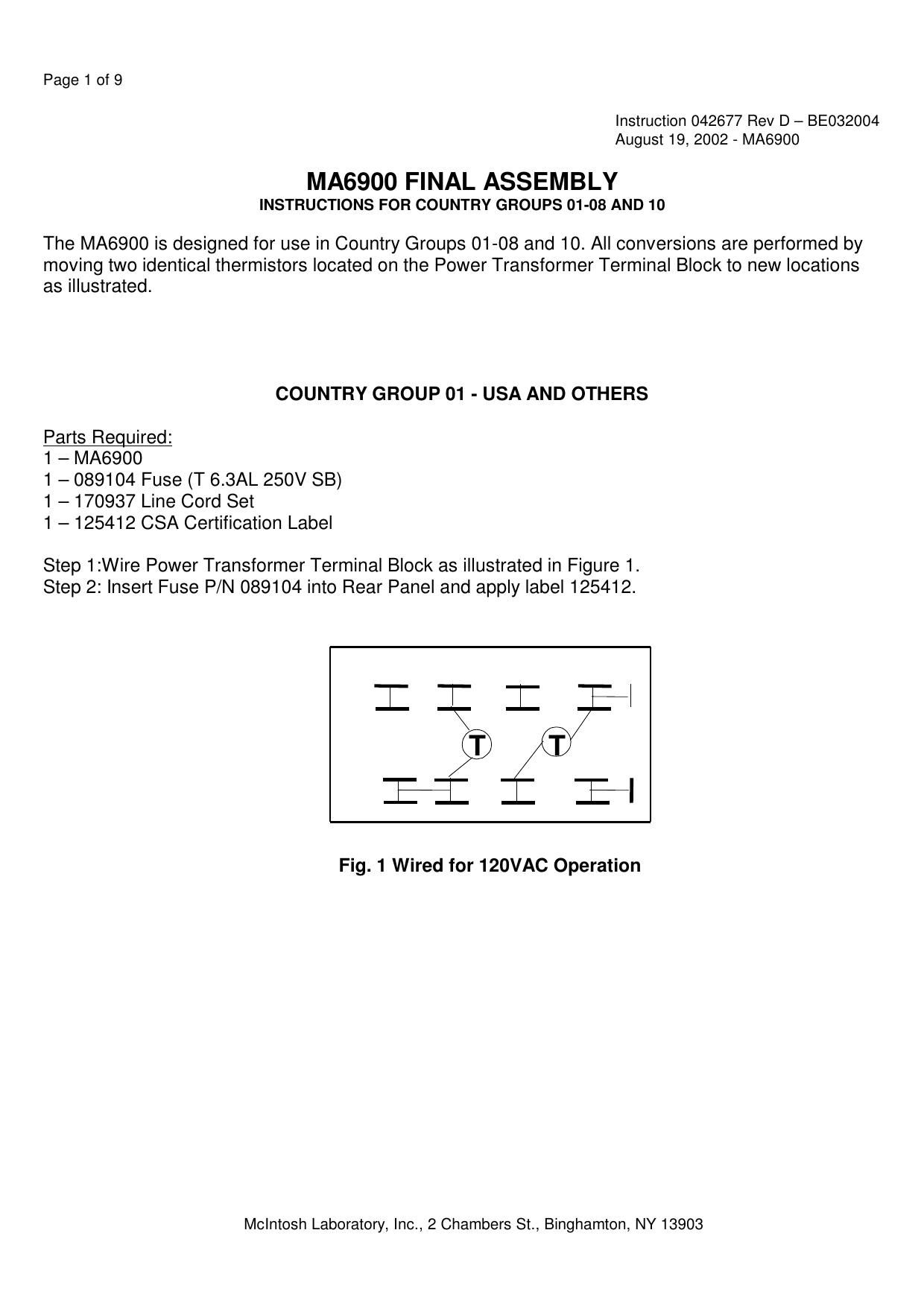

Page 1
Page 2 of 9 McIntosh Laboratory, Inc., 2 Chambers St., Binghamton, NY 13903COUNTRY GROUP 02 - JAPAN Parts Required:1 – MA6900 1 – 126873 Input Rating Decal (100V~ 50/60Hz 5.2A) 1 – 125781 Line Cord Tag (100V) 1 – 170937 Line Cord Set 1 – 089104 Fuse (T 6.3AL 250V SB) Step 1: Wire Power Transformer Terminal Block as illustrated in Figure 2. Step 2: Change the screened Rear Panel Input Rating to 100V~ 50/60Hz 5.2A with P/N 126873. Step 3: Tag Line Cord P/N 170937 with P/N 125781 (100V) and ship with Unit. Step 4: Insert Fuse P/N 089104 into Rear Panel. Fig. 2 Wired For 100VAC OperationT T
Page 2
Page 3 of 9 McIntosh Laboratory, Inc., 2 Chambers St., Binghamton, NY 13903COUNTRY GROUP 03 - TAIWAN Parts Required:1 – MA6900 1 – 125731 Date of Manufacture Decal 1 – 126876 Input Rating Decal (110V~ 60Hz 4.8A) 1 – 126095 Line Cord Tag (110V) 1 – 089104 Fuse (T 6.3AL 250V SB) 1 – 170937 Line Cord Set Step 1: Wire Power Transformer Terminal Block as illustrated in Figure 3. Step 2: Insert Fuse P/N 089104 into Rear Panel and apply Decals. Step 3: Changed screened Rear Panel Input Rating to 110V~ 60Hz 4.8A using P/N 126876. Step 4: Tag Line Cord P/N 170937 with P/N 126095 (110V) and ship with Unit. Fig. 3 Wired for 120VAC OperationTT
