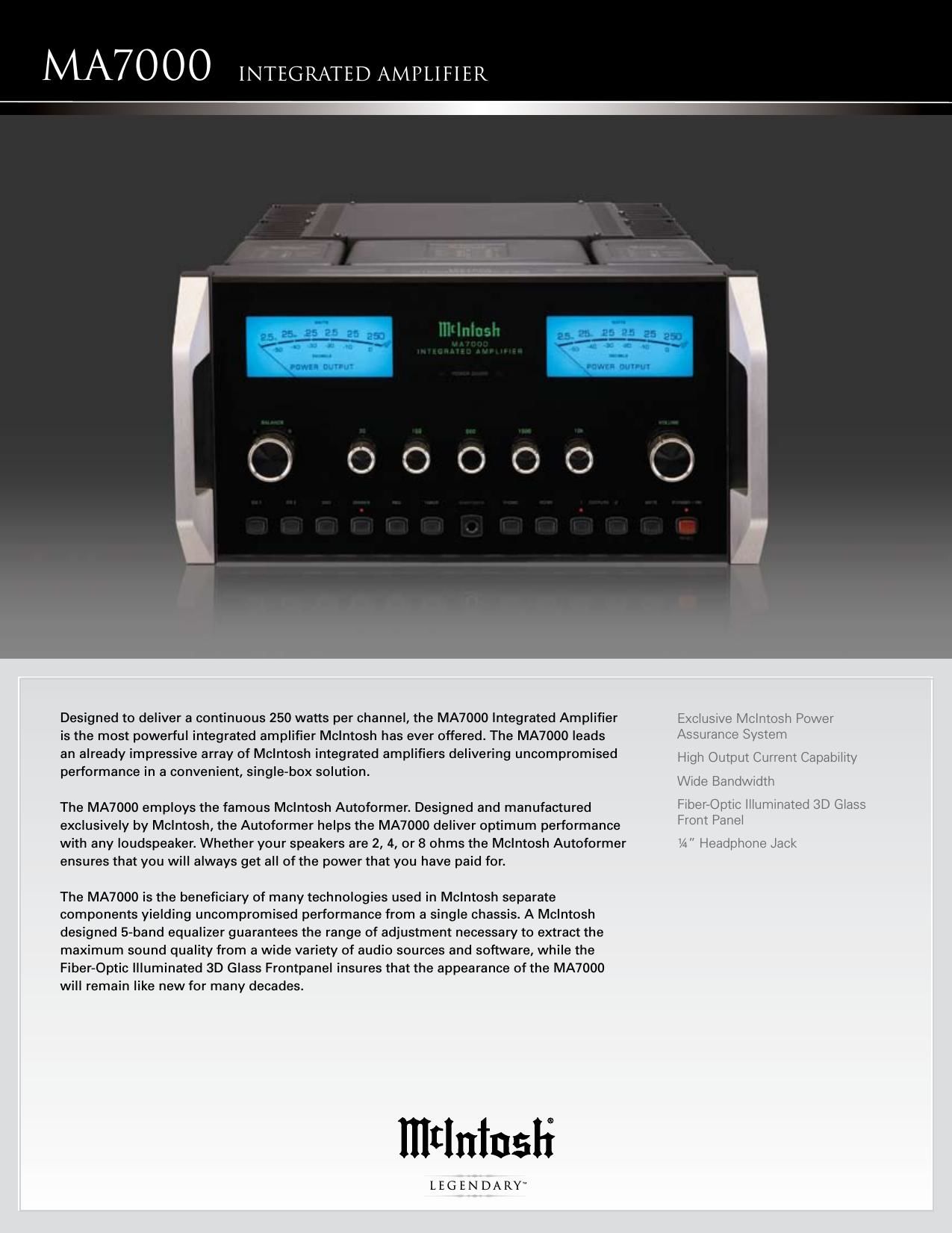

McIntosh MA 7000 Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 www.mcintoshlabs.com 35010400 MA 7000 Ma 7000 integrated amplifier POWER OUTPUT 250 watts is the minimum sine wave continuous average power output per channel, both channels operating OUTPUT LOAD IMPEDANCE 2, 4 or 8 ohms RATED POWER BAND 20Hz to 20,000Hz TOTAL HARMONIC DISTORTION 0.005% maximum with both channels operat- ing from 250 milliwatts to rated power, 20Hz to 20,000Hz DYNAMIC HEADROOM 2.0dB FREQUENCY RESPONSE +0, -0.5dB from 20Hz to 20,000Hz +0, -3dB from 10Hz to 100,000Hz PREAMPLIFIER MAIN OUTPUT (FOR RATED INPUT) 2.5V unbalanced (8V Maximun) 5.0V balanced (16V Maximun) SENSITIVITY (FOR RATED OUTPUT) High Level, 250mV unbalanced, 500mV balanced Phono, 1.2 mV Power Amp In, 2.5V SIGNAL TO NOISE RATIO (A-WEIGHTED) High Level, 100dB below rated output Phono, 84dB below 5mV input Power Amplifier, 115 below rated output INTERMODULATION DISTORTION 0.005% maximum, if the instantaneous peak power is 500 watts or less per channel with both channels operating for any combination of frequencies from 20Hz to 20,000Hz WIDE BAND DAMPING FACTOR Greater than 40 MAIN OUTPUT IMPEDANCE 50 ohmsINPUT IMPEDANCE High Level, 20K ohms Phono, 47K ohms; 65pF Power Amp In, 10K ohms MAXIMUM INPUT SIGNAL High Level, 8V unbalanced, 16V balanced Phono, 45mV Power Amplifier In, 16V POWER GUARD Less than 2% THD with up to 16dB overdrive at 1,000Hz VOLTAGE GAIN High Level to Rec Output: 0dB High Level to Main Output: 20dB Phono to Rec Output: 46dB Phono to Main Output: 66dB Power Amplifier: 25dB EQUALIZER CONTROLS Variable 12dB boost to 12dB cut at 30Hz, 150Hz, 500Hz, 1500Hz and 10,000Hz POWER REQUIREMENTS 100 Volts, 50/60Hz at 8.0 amps 110 Volts, 50/60Hz at 7.2 amps 120 Volts, 50/60Hz at 6.6 amps 220 Volts, 50/60Hz at 3.3 amps 230 Volts, 50/60Hz at 3.3 amps 240 Volts, 50/60Hz at 3.3 amps Standby: Less than 1 watt Note: Refer to the rear panel of the MA7000 for the correct voltage. OVERALL DIMENSIONS (H X W X D) INCLUDING THE FEET AND FRONT PANEL KNOBS AND CABLES Width is 17-1/2 inches (44.45cm) 9-7/16 inches (23.97cm), 17-1/2 inches (44.45cm) x 22 inches (55.88cm) WEIGHT 97.5 pounds (44.3 kg) net 130.5 pounds (59.2 kg) in shipping carton EXCLUSIVE MCINTOSH POWER ASSURANCE SYSTEM A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. POWER GUARD ® A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion. SENTRY MONITOR ® Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level – resets automatically. OUTPUT AUTOFORMER ® Unique McIntosh technology delivers the full rated amplifier output with the least possible distortion into loudspeaker impedances of 2, 4, or 8 ohms; you get all the power you paid for and the freedom to choose any loudspeaker. WATTMETER Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy. FOR THE CONSUMERS PROTECTION In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or prod- ucts that have had their serial number altered or defaced.
