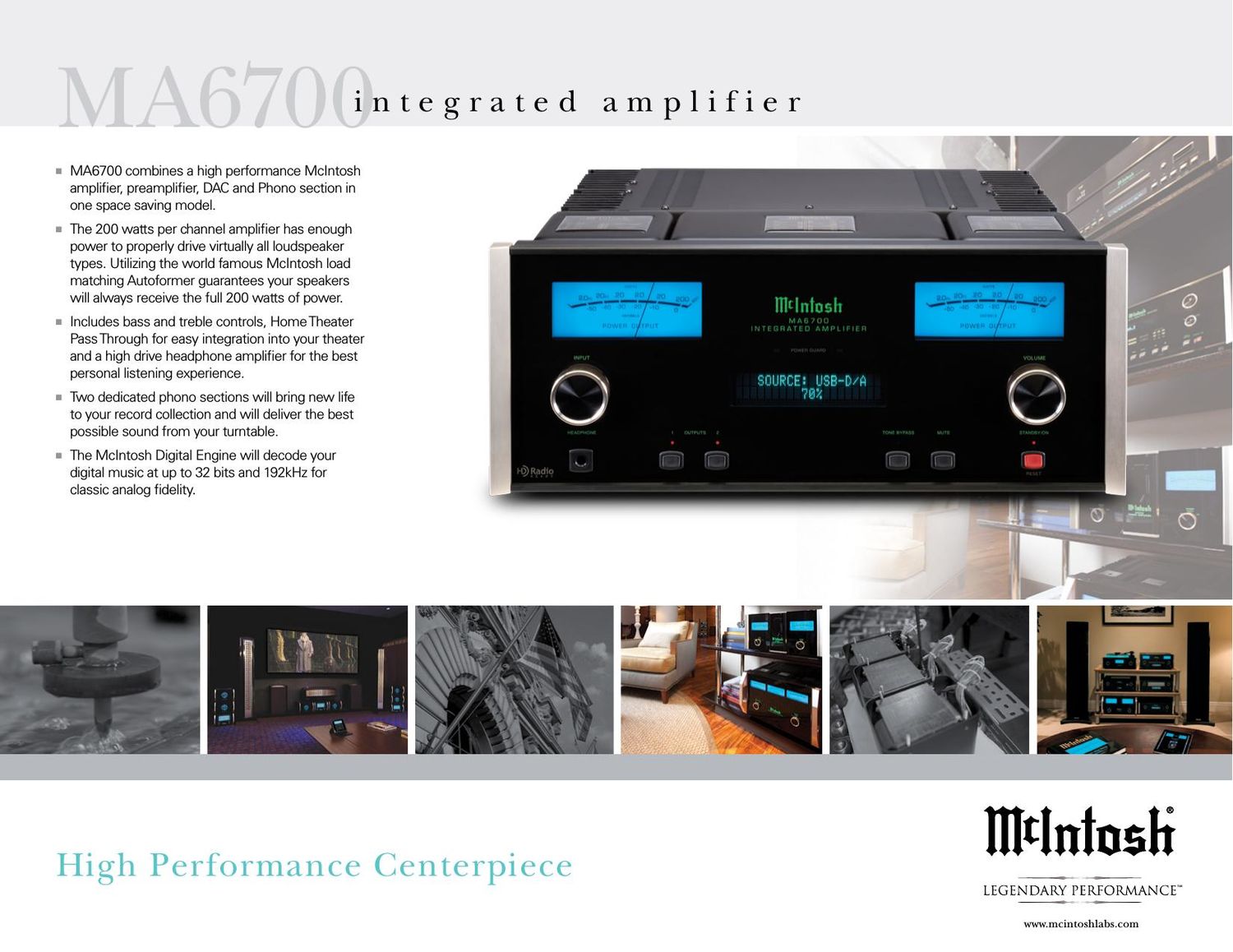

McIntosh MA 6700 Brochure

Page 1

www.mcintoshlabs.com Amplifier Power Output: 200 watts per channel with both channels operating into 2, 4 or 8 Ohms, with Power Meters Total Harmonic Distortion: 0.005% maximum from 20Hz to 20kHz Preamplifier Inputs: Five high level unbalanced One high level balanced Two Phono: one Moving Coil adjustable loading, one Moving Magnet Three digital inputs Digital Section: Three digital inputs: one dedicated USB, and two assignable: one coax and one optical PCM McIntosh Digital Engine is 32 bit 192kHz, USB 2.0 asynchronous Tone Controls: Bass and Treble, +/- 12dB Companion Products The McIntosh MCD301 SACD/CD Player, TM3 Tuner Module and XR50 Loudspeakers are logical companions for the MA6700 Integrated Amplifier. Your authorized dealer can provide additional information. To learn more, please call us at 1.800.538.6576. High Drive Headphone Amplifier: All headphones, from 20 to 600 Ohms Home Theater Pass Through: Allows interfacing with a Home Theater system Tuner Module: Optional module may be added to receive your favorite radio stations with clarity and realism Overall Dimensions (W x H x D): 17-1/2 (44.5cm) x 7-5/8 (19.37cm) x 22 (55.88cm) including knobs, connectors and cables Weight: 75 lbs (34.1kg) net, 93 lbs (42.3kg) in shipping carton 3 5 10110 0 For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. M A670 0 integrated amplifier An optional AM/FM tuner module can be installed into the back for seamless radio functionality. Not available in the US and Canada. Please see the MAC6700 Receiver.
