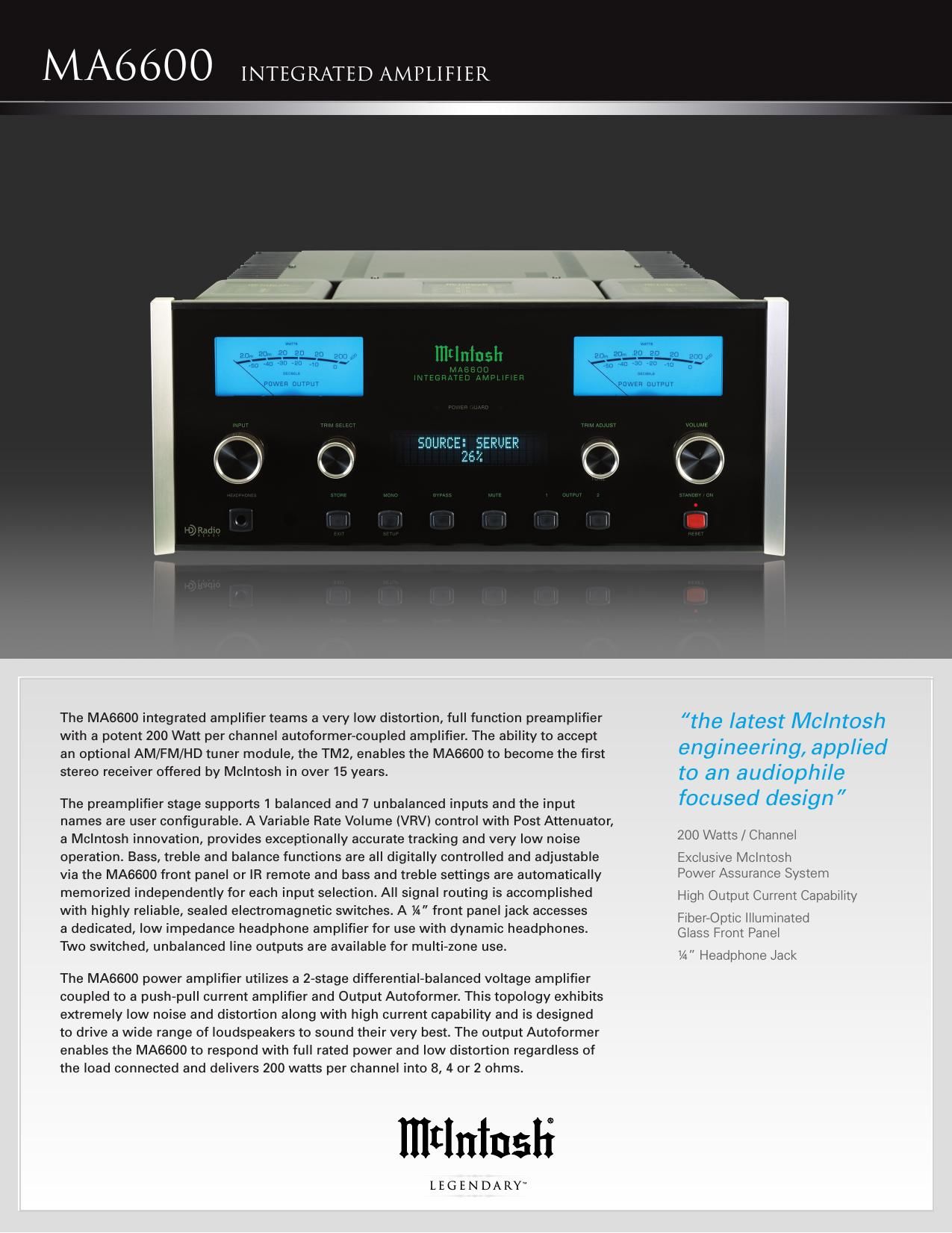

McIntosh MA 6600 Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 www.mcintoshlabs.com 35010300 MA 6600 M a6600 integrated amplifier POWER OUTPUT 200 watts is the minimum sine wave continuous average power output per channel, both channels operating OUTPUT LOAD IMPEDANCE: 2, 4 or 8 ohms RATED POWER BAND: 20Hz to 20,000Hz TOTAL HARMONIC DISTORTION 0.005% maximum with both channels operating from 250 milliwatts to rated power, 20Hz to 20,000Hz DYNAMIC HEADROOM 2.0dB FREQUENCY RESPONSE +0, -0.5dB from 20Hz to 20,000Hz +0, -3dB from 10Hz to 100,000Hz PREAMPLIFIER OUTPUT 1 AND 2 (FOR RATED INPUT): 1.4V unbalanced (8V Maximum) SENSITIVITY (FOR RATED OUTPUT) High Level, 250mV unbalanced, 500mV balanced Phono, 2.5 mV; Power Amp In, 1.4V SIGNAL TO NOISE RATIO (A-WEIGHTED) High Level, 92dB below rated output Phono, 84dB below 5mV input Power Amplifier, 115 below rated output INTERMODULATION DISTORTION 0.005% maximum, if the instantaneous peak power is 400 watts or less per channel with both channels operating for any combination of frequencies from 20Hz to 20,000Hz WIDE BAND DAMPING FACTOR: > 40INPUT IMPEDANCE High Level, 20K ohms Phono, 47K ohms; 65pF Power Amp In, 10K ohms MAXIMUM INPUT SIGNAL High Level, 8V unbalanced, 16V balanced Phono, 80mV: Power Amplifier In, 16V PREAMPLIFIER OUTPUT IMPEDANCE 220 ohms VOLTAGE GAIN High Level to Rec Output: 0dB High Level to Output 1 and 2: 15dB Phono to Rec Output: 40dB Phono to Output 1 and 2: 55dB Power Amplifier: 29dB TONE CONTROLS Bass Control ±12dB (1dB steps) @ 30Hz Treble Control ±12dB (1dB steps) @ 10,000Hz POWER REQUIREMENTS 100 Volts, 50/60Hz at 5.2 amps 110 Volts, 50/60Hz at 4.8 amps 120 Volts, 50/60Hz at 4.4 amps 220 Volts, 50/60Hz at 2.45 amps 230 Volts, 50/60Hz at 2.35 amps 240 Volts, 50/60Hz at 2.25 amps Standby: Less than 1 watt OVERALL DIMENSIONS (H x W x D including front panel, knobs, feet and cables): 9-7/16 (23.97cm) x 17-1/2 (44.45cm) x 22 (55.88cm) WEIGHT 75 pounds (34.1 kg) net, 93 pounds (42.3 kg) in shipping carton EXCLUSIVE MCINTOSH POWER ASSURANCE SYSTEM A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers. POWER GUARD ® A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion. ELECTRONIC SWITCHING AND BALANCED CONNECTIONS The preamplifier uses Logic Circuits controlling Electromagnetic Switches on all inputs and operating functions for reliable, noiseless distortion free switching. There are two Balanced Inputs for connection of source components and a Balanced Preamplifier output for driving an external Power Amplifier POWER CONTROL AND REMOTE CONTROL The power control output connection provides convenient Turn-On/Off of McIntosh Source components. The Data Ports together with the supplied Remote Control provides control of McIntosh Source components connected to the MA6600. WATTMETER Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy. FOR THE CONSUMERS PROTECTION In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
