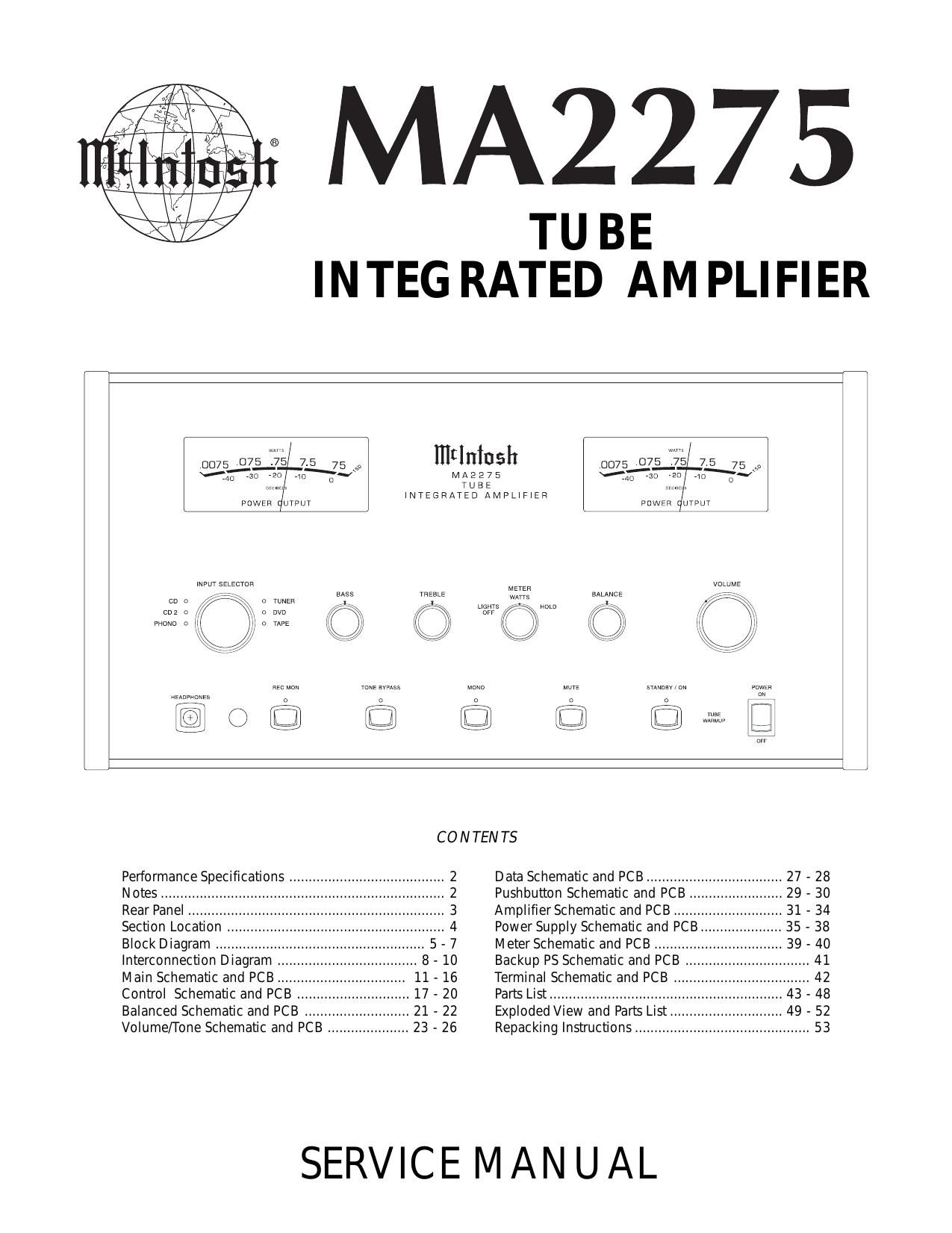

McIntosh MA 2275 Service Manual 2
This is the 28 pages manual for McIntosh MA 2275 Service Manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MA 2275 Service Manual 2 (Ocr-read)
Page 1
PERFORMANCE SPECIFICATIONS 2 1. The heavy lines on the schematic denote the primary signal path. 2. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are +/-10% with respect to ground. A high impedance (10 megaohm) voltmeter must be used. 3. Unless otherwise specified: a. Resistor values are in ohms. b. Capacitor values are microfarads (uF). c. Inductor values are in microhenries (uH).4. On PC board drawings, Square pad indicates: a. Polarized Capacitors - Positive b. Diodes - Cathode c. Others - Pin 1 5.WARNING Parts marked with the symbol have critical characteristics. Use only replacement parts recom- mended by the manufacturer. NOTES Power Output Minimum sine wave continuous average power output per channel, both channels operating is: 75 watts into a 2 ohm load 75 watts into a 4 ohm load 75 watts into an 8 ohm load Rated Power Band 20Hz to 20,000Hz Total Harmonic Distortion Maximum Total Harmonic Distortion at any power level from 250 milliwatts to rated power output is: 0.5% for a 2, 4 or 8 ohm load Frequency Response +0, -0.5dB from 20Hz to 20,000Hz +0, -3dB from 10Hz to 50,000Hz Sensitivity Phono: 4.4mV for 2.5V preamp output High Level: 450mV for 2.5V preamp output Power Amplifier Input: 2.5V for rated output A-Weighted Signal To Noise Ratio Phono Input: 80dB below 10mV input High Level: 97dB below rated output Power Amplifier: 110dB below rated output Intermodulation Distortion Maximum Intermodulation Distortion if instantaneous peak output does not exceed twice the rated output, for any combination of frequencies from 20Hz to 20,000Hz is: 0.5% for a 2, 4 or 8 ohm load Input Impedance Phono: 47k ohms, 65pF High Level: 22k ohms Maximum Input Signal Phono: 90mV High Level: 8V Preamplifier Maximum Voltage Output Phono: 8V High Level: 8V Main Out: 8V at preamp output Voltage Gain High Level to Tape output: 0dB High Level to Preamp output: 15dB Wide Band Damping Factor Greater than 18 Power Requirements 100 Volts, 50/60Hz at 3.6 amps 110 Volts, 50/60Hz at 3.6 amps 120 Volts, 50/60Hz at 3.6 amps 220 Volts, 50/60Hz at 1.8 amps 230 Volts, 50/60Hz at 1.8 amps 240 Volts, 50/60Hz at 1.8 amps Note: Refer to the rear panel of the MA2275 for the correct voltage. Preamplifier Tube Compliment 2 - 12AX7A Phono Circuitry 2 - 12AX7A High Level Circuitry Power Amplifier Tube Compliment 2 - 12AT7 4 - KT88/6550 Overall Dimensions Width is 17-3/4 inches (45.09cm), Height is 10-1/8 inches (25.72cm) including feet, Depth is 18-3/4 inches (47.63cm) including the Front Panel and Knobs Weight 77 pounds (35 kg) net, 110 pounds (50 kg) in shipping carton
Page 2
3 MA2275 TOP AND REAR VIEWS PHONOGND EXT SENSOR POWER AMP IN T 4AL 250V SLO BLO 120V 50/60Hz 3 6A PREAMP TAPEOUTPUTS POWER CONTROL SUM DATA PORTS MAINACC SER AL NUMBER MA2275 Mc NTOSH LABORATORY NC BINGHAMTON NY MADE IN USA CAUTIONRISK OF ELECTR C SHOCK DO NOT OPEN CAUTION FOR CONT NUED PROTECT ON AGA NST FIRE HAZARD REPLACE ONLY WITH SAME TYPE AND RATING FUSE CD INPUT INTEGRATED AMPLIFIER L R L R DVD TUNER CD 2 CD INPUTS TAPE 12 AVISRISQUE DE CHOC ELECTR QUE - NE PAS OUVRIR REMPLACER PAR UN FUS BLE DE MEME TYPE AMPERAGE ET VOLTAGE
