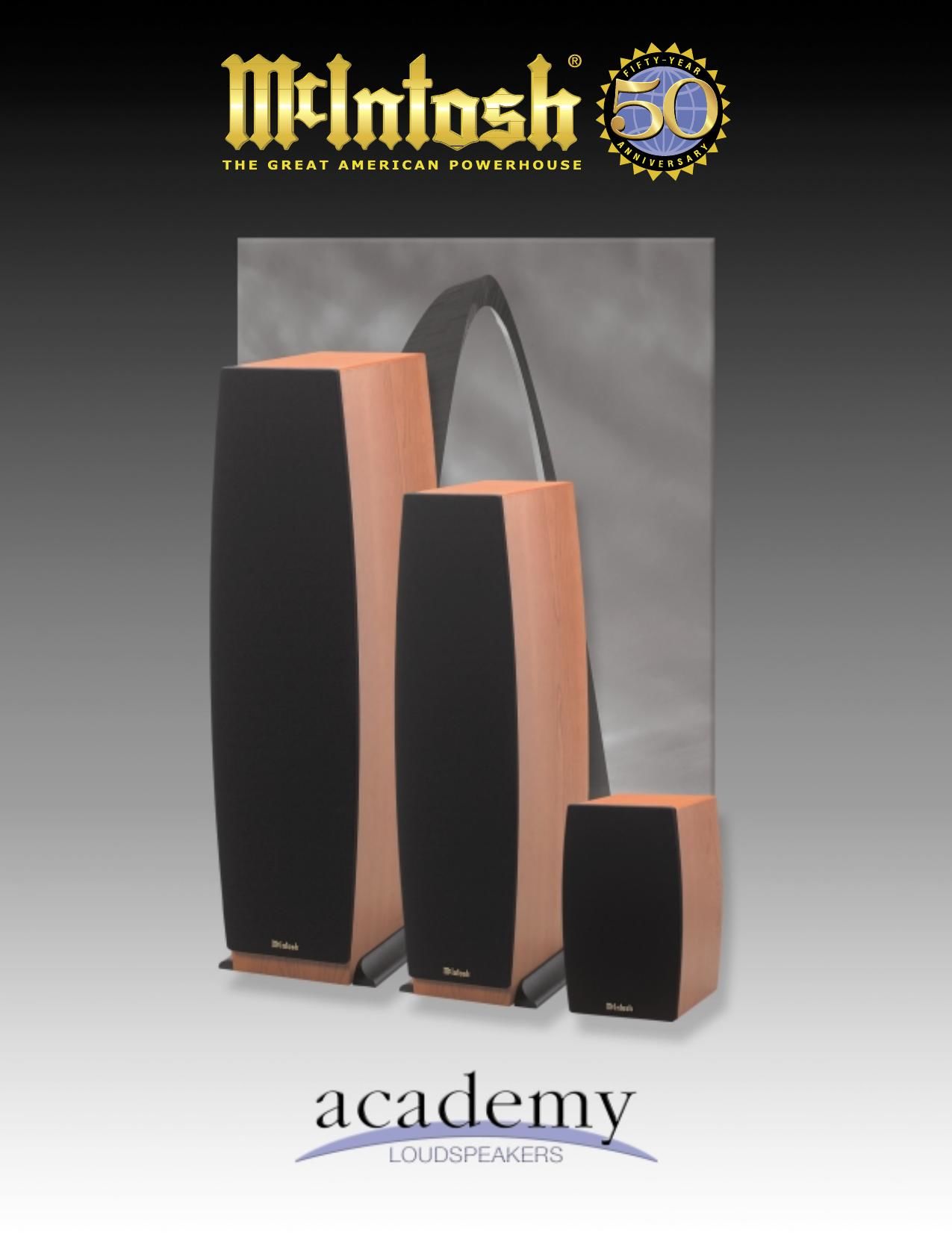

Page 1
O f all audio components, the loudspeaker may seem the least complex. Yet the many trade- offs in loudspeaker design – the give and take between drivers, crossovers, and cabinet volume – call for well-informed subjectivity. McIntosh has been sell- ing loudspeakers since 1970. Make that manufacturing loudspeakers, as fewer and fewer speaker companies actually build or even design what they sell. As a com- pany fixated on musical fidelity, McIntosh is uniquely qualified to make the subjective judgements necessary to create truly musical loudspeakers. The new Academy Series results from the most ambi- tious speaker development project in McIntosh history. Never have McIntosh speakers and electronics enjoyed such harmony of quality, performance, and purpose. The popularity of home theaters has had a dramatic effect on the speaker market. Amid confusion over how many speakers to buy and where to place them is a lin- gering question: Does a good music loudspeaker make a good theater speaker, and vice versa? With the Academy Series loudspeakers, the answers are yes and yes. Because from the very beginning the Academy models have been designed for low-dis- tortion performance, thanks to patented LD/HP® drivers and unique arched bridge truss cabinet construction. Music benefits from smooth, extended response with- out the coloration and fuzzy imaging caused by driver distortion and cabinet vibrations. Movie sound benefits from high power handling and fast, clean dynamic response from the high-output LD/HP drivers. The Academy speakers are a true family, sharing a common tonal quality that allows for great configura- tion flexibility. Virtually any combination of speakers can be used in multichannel applications. High-end loudspeakers in particular are often charac- terized by just one aspect of their performance. It could be bass response, treble transparency, depth of image, cosmetic appearance, or even price. In all of its products,however, McIntosh seeks balance, and so is the case with speakers. The Academy models certainly have an extremely smooth and broad frequency response, and they do measure well in front of a microphone and spectrum analyzer. But in the final analysis, they are distinguished by their sheer musicality, which can only be measured by listening. T he non-parallel, arched sides of the Academy Series cabinets help eliminate resonances and reflections that disrupt a smooth frequency response. The sides are made from several layers of MDF and wood, laminated together for strength. Within the graceful arch shape, internal trusses create an extremely strong and durable cabinet virtually immune to flutter and vibrations that distort sound. Academy Series drivers and crossovers are designed for high efficiency as well as high power handling. For example, the smallest Academy model – the LS320 – will provide a sound pressure level in excess of 100dB using McIntoshs smallestpower amplifier. Shielding around the drivers allows safe placement near video monitors and TV sets. Academy speakers deliver the ultra-realistic dynamics of todays digital movie sound. Yet in contrast to most so-called theater loudspeakers, they also possess the musicality demanded by critical music listeners. W hile you can choose virtually any combina- tion of Academy speakers for a surround- sound theater or listening room, McIntosh dealers will typically recommend one of four Academy Systems. Each system has one or more alternative model choices and expansion options. Chances are that at least one system will match your needs based on the type of system you own, your budget, and the parameters of your theater or listening room.
Page 2
LD/HP ® Drivers In a LD/HP driver, a pair of aluminum shorting sleeves makes the magnetic field more symmetrical and reduces distortion. The sleeves also lower the impedance of the voice coil, permitting greater current flow and hence higher output levels. Arched Cabinet Sides The arch shape creates non-parallel sides, preventing internal resonances that muddy the sound. Internal Trusses Cross-braces span the entire length of the arched sides, creating an extremely rigid cabinet structure that virtually silences unwanted vibrations. Precision Crossovers Designing the optimal crossover for any speaker is a challenge. To do so for several and make them sound like a true family is more like an art. And this is exactly what McIntosh has done. Flared Ports The ports in the LS360, LS340, and PS112 have flares at both ends to minimize air noise with high levels of bass. Bessel Function Tweeter Array In the LS360 and CS350 the indi- vidual tweeter amplitudes and phase relationships are adjusted so that the array acts as a high fre- quency point source with a broad dispersion pattern. The array also greatly increases power handling for high frequencies. Hand-Crafted Drivers Woofer and midrange cones are constructed of polypropylene, which has a high stiffness-to-mass ratio and good damping properties. Rubber surrounds ensure linear cone excursion, and like the cones are immune to decay. Drivers are mounted in proprietary die-cast aluminum frames and undergo rigorous tests in McIntoshs ane- choic chamber.
Page 10
LS360 CS350 PS112 PS112 LS360 LEFT CENTER RIGHT SUB 2 SUB 1 (2) LS360 left & right - (1) CS350 center - (2) WS320 left & right surround (2) LS320 back surround - (2) PS112 subwoofer Alternatives: (2) LS320 left & right surround - (2) LS320 back surround Academy System IV - In-wall, two-way, sealed enclosure - 8" woofer - 1" dome tweeter - Paintable white primer coat finish WS320 - Subwoofer, ported - 12" woofer - 400W McIntosh amp - Beveled glass control panel - Natural Cherry, Red Cherry, and Black Ash finishes PS112 - Three-way, sealed cabinet - Dual 6.5" woofers - 4" midrange - Five 1" dome tweeters in a Bessel Function array - Adjustable tilt bracket - Natural Cherry, Red Cherry, and Black Ash finishes CS350 LS360 - Three-way, dual ports - Dual 10" woofers - 8" midrange - Five 1" dome tweeters in a Bessel Function array - Natural Cherry, Red Cherry, and Black Ash finishes BACK 1 BACK 2 SURROUND LS320 WS320 WS320 LS320 WS320 LS320 SURROUND LS320 WS320 - Two-way, sealed cabinet - 8" woofer - 1" dome tweeter with a special low-diffraction mounting - Natural Cherry, Red Cherry, and Black Ash finishes LS320
