McIntosh CS 100 Brochure

Page 1

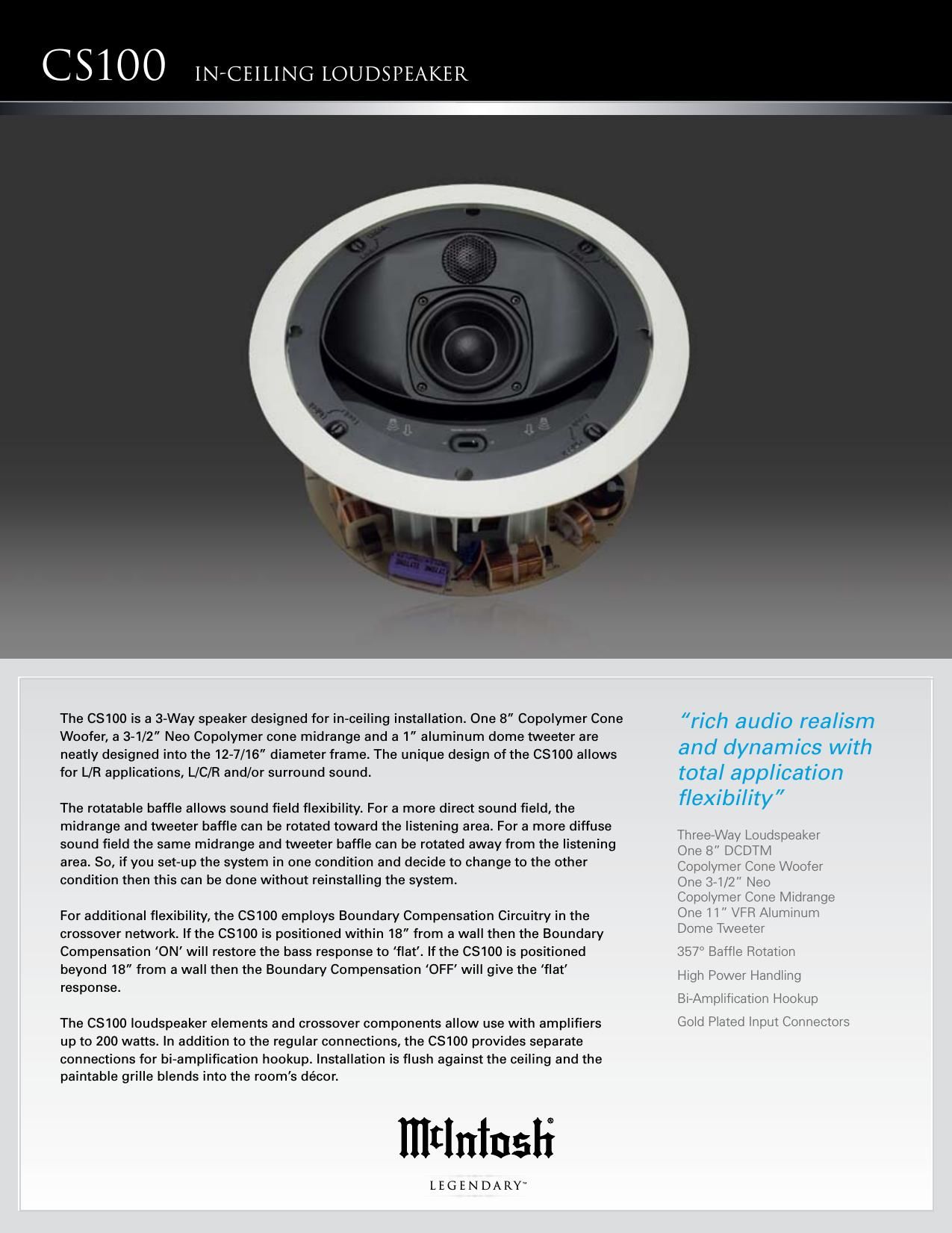

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 35010100 CS 100 To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 l e g e n d a r y www.mcintoshlabs.com 35010100 CS 100 CS100 In-Ceiling Loudspeaker OPERATING TEMPERATURE41° to 95° F (5° TO 35° C) OPERATING HUMIDITY30 to 85% OVERALL DIMENSION (H x W x D)12-7/16 (31.6cm) x 12-7/16 (31.6cm) x 6 (15.2cm) WEIGHT8.3lbs (3.76 kg) net10.5 lbs (4.76 kg) in shipping carton SYSTEM DRIVER COMPLEMENTOne 8 DCDTM Copolymer Cone WooferOne 3-1/2 Neo Copolymer Cone MidrangeOne 1 VFR Aluminum Dome Tweeter IMPEDANCE8-Ohms Nominal FREQUENCY RESPONSE48Hz – 22kHz (+3dB) SENSITIVITY89dB (2.83V/1m equivalent) POWER HANDLING200 Watts Maximum UNIQUE TECHNOLOGY The CS100 Loudspeaker System employs a unique design that permits the baffle to rotate up to 357° to direct the sound toward the listener to maintain proper sound stage. HIGH POWER HANDLING The CS100 loudspeaker elements and crossover components flow for use with amplifiers up to 200 watts. VERSATILE OPERATION In addition to the regular connections, the CS100 provides separate connections for bi-amplification hookups. GOLD PLATED INPUT CONNECTORS The input connectors are gold plated for superior corrosion resistance and high electrical conductivity. FOR THE CONSUMERS PROTECTION In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or prod - ucts that have had their serial number altered or defaced.
