McIntosh CR 10 Service Manual
This is the 38 pages manual for McIntosh CR 10 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh CR 10 Service Manual (Ocr-read)

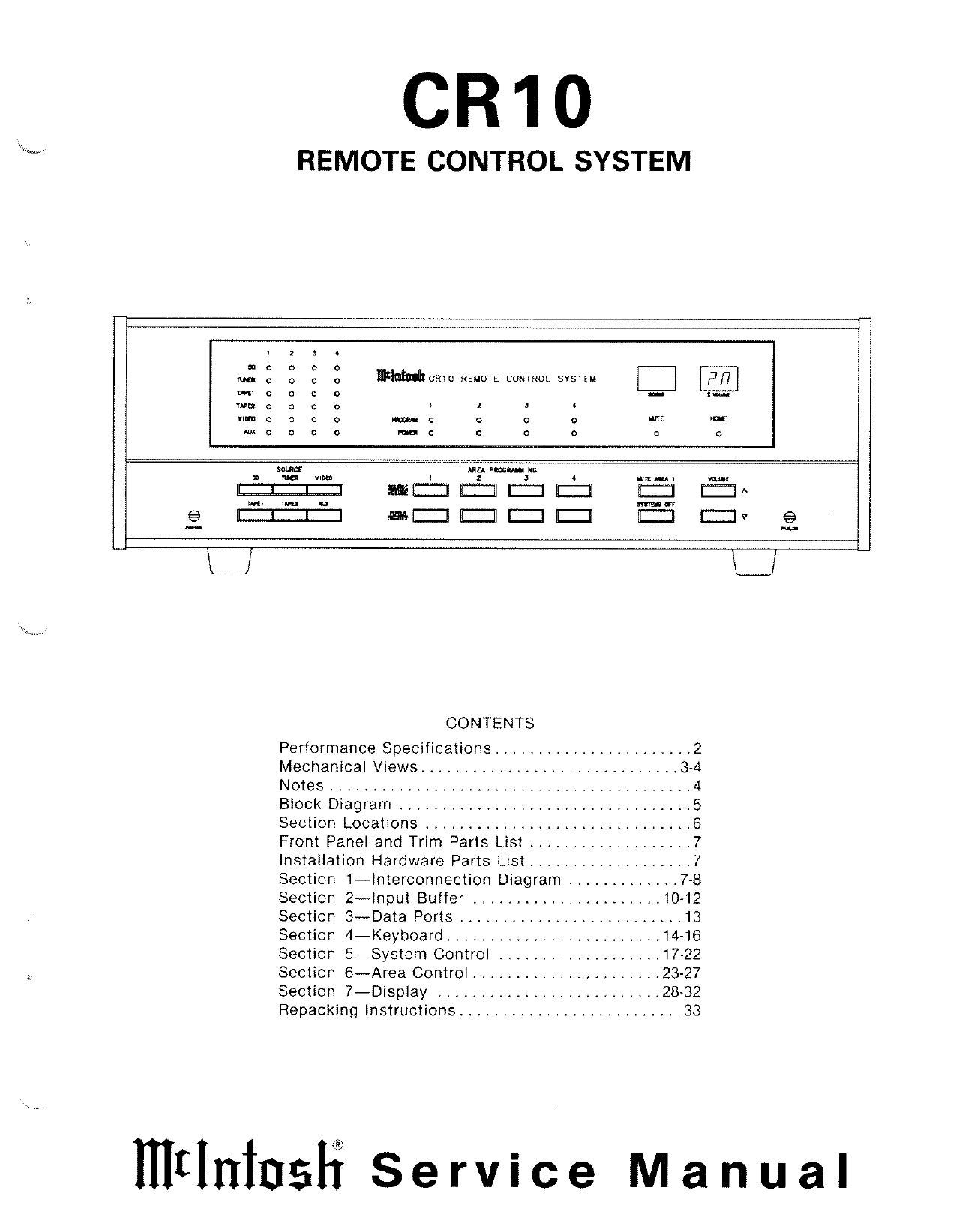

Page 1
CR10
REMOTE CONTROL SYSTEM
i 2 s i
a 0 O O 0
mo 0 O a a m CR10 REMOTE CONTROL SYSYEM E
m o a c o - 1-4-
YIIII 0 O 0 O .3
II a c O 0 nuan- 0 O 0 O E m
"I O O O 0 m 0 D 0 O D 0
ME MIA WWI
w u- vim i 2 a t .m .u . um
l- u r! r"-| |-1 m fl A
mu run :41 m m
8 N L_.l L__.I L_] i_l L_.U L._.l V e
..... ...
CONTENTS
Performance Specifications ....................... 2
Mechanical Views .............................. 34
Notes .......................................... 4
Block Diagram .................................. 5
Section Locations .............................. 6
Front Panel and Trim Parts List ................... 7
Installation Hardware Parts List ................... 7
Section 1-lnterconnection Diagram ............. 7-8
Section 2-lnput Buffer ...................... 10-12
Section 3-Data Ports .......................... 13
Section 4-Keyboard ......................... 14-16
Section 5-System Control ................... 17522
i, Section G-Area Control ...................... 23-27
Section 7-Display .......................... 2882
Repacking Instructions .......................... 33
mIIflUSfi Service Manual
Page 2
Performance
Specifications
FREQUENCY RESPONSE
+0,-0.5dB from 20Hz to 20,000Hz
RATED OUTPUT VOLTAGE
2.5 volts, (8 volts maximum)
SENSITIVITY
ALL inputs; 025 volts for 2.5 volts rated output
TOTAL HARMONIC DISTORTION
0.004% maximum from 20Hz to 20,000Hz at
rated output
SIGNAL T0 NOISE RATIO. A-WEIGHTED
86dB below rated output.
98dB below rated output, (A-Weighted)
MAXIMUM INPUT SIGNAL
8 volts
INPUT IMPEDANCE
22K ohms
MECHANICAL
SIZE
Front Panel: 17.5 inches (44.5cm) wide by 58/8
inches (13.7cm) high. Depth behind the mounting
panel including clearance for connectors is 15-1/2
inches (39.4cm). Clearance required in front of the
mounting panel is 1 inch (2.54cml.
FINISH
The top section of the front panel is glass with
gold/teal nomenclature illumination. The bottom
section is anodized black aluminum.
WEIGHT
16.5 pounds (7.5Kgl net, 28.5 pounds (12.9Kgl
in shipping carton.
