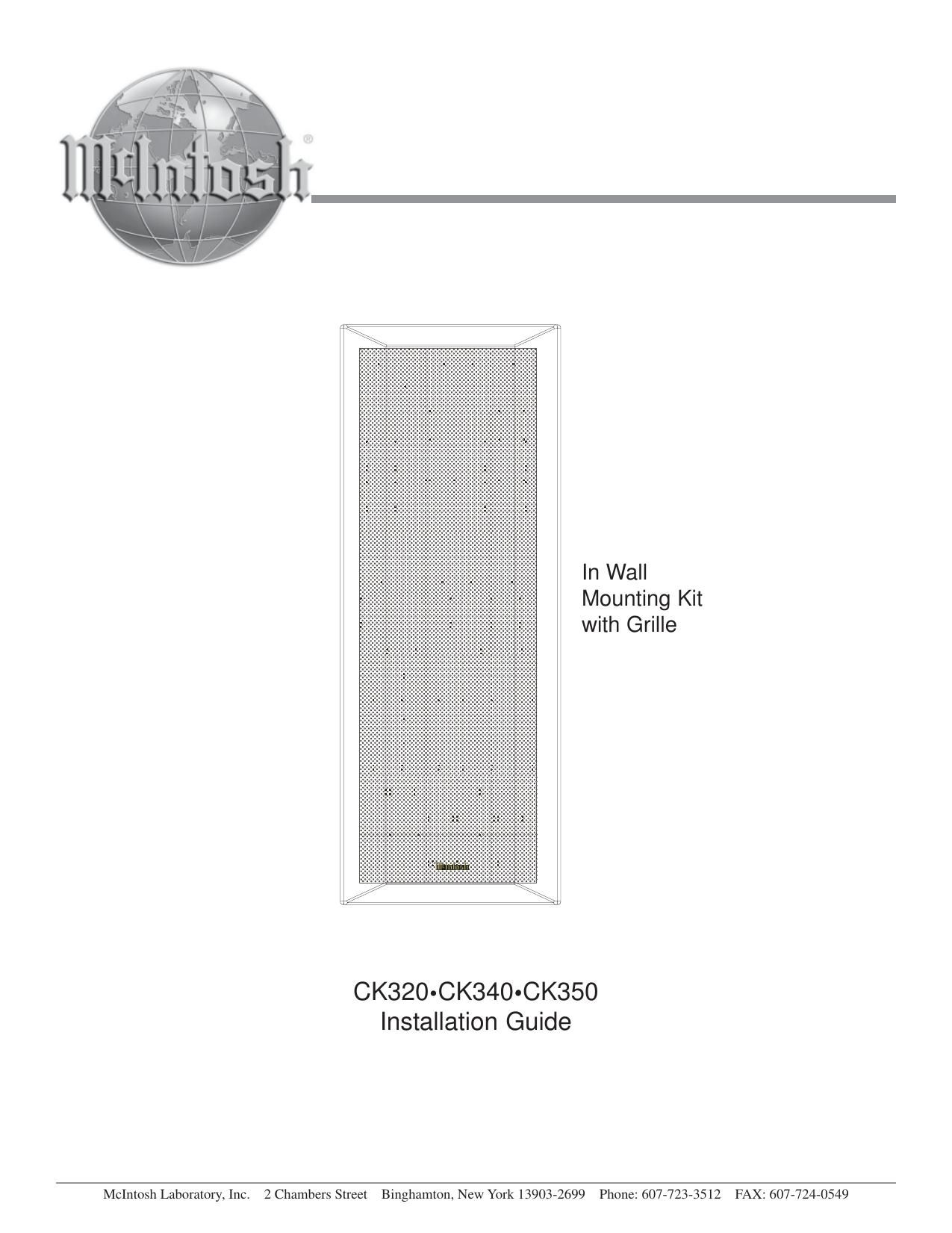

McIntosh CK 320 CK 340 CK 350 Owners Manual
This is the 4 pages manual for McIntosh CK 320 CK 340 CK 350 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh CK 320 CK 340 CK 350 Owners Manual (Ocr-read)
Page 1
2 Installation The following instructions are for installing the XLS320, XLS340, and XCS350 Loudspeaker Systems into the wall using the optional CK320, CK340 and CK350 In Wall Mounting Kits with Grilles. The CK320, CK340 and CK350 Kits share a com- mon mounting procedure with a varying number of mounting brackets and fasteners used to install each Loudspeaker Model. Before proceeding with these instructions refer to the XLS320, XLS340 and XCS350 Owners Manual sections in- cluding Unpacking the Loudspeaker starting on page 10, to Locating the Loudspeaker System on page 18, Tweeter Array Optimization on page 19 and How to Connect starting on page 20, before beginning the Mounting Process. It is recom- mended that the Professionals at your McIntosh Dealer, who are skilled in all aspects of installation and operation, install the Loudspeaker System and any associated audio/video equipment. Caution: Due to the size and weight of the XLS340 and XCS350 Loudspeakers, two or more persons may be required to install them safely. Unpacking the Loudspeaker Unpacking the XLS320, XLS340 and XCS350 Loudspeaker by referring to the instructions contained in the Owners Manual starting on page 10. Then perform the following steps: 1. Place the Loudspeaker System, with the front facing down, on top of the packing material located on top of the shipping carton as illustrated in the Owners Manual. 2. Using the supplied Allen Wrench, re- move the screws at locations illus- trated in figure 1. Note: The XCS350 Loudspeaker requires removal of the Stabilizer Bar and replacement of the three screws used to attach the Stabilizer Bar, with screws of the same type but shorter in length (supplied with the XCS350) to prevent air leaks. Figure 2 Installing the Loudspeaker System The XLS320, XLS340 and XCS350 Loudspeakers Smooth Fre- quency Response may be altered by a large object(s) located in the sound waves path or by locating the Loudspeaker too close to a side wall. There should be an unobstructed area in front of the Loudspeaker of at least 15 degrees either top or bottom from the center axis and 30 degrees side to side for the best performance. Re- fer to figures 2 and 3. 3. Use a suitable wall stud finder or metal detector to verify a proper mounting location for the Loudspeaker System be- fore cutting into the wall. The XLS320 and XLS340 are de- signed for mounting between vertical wall studs with 16 inch (40.64cm) centers. Refer to figure 4. The XCS350 is designed for mounting hori- zontally in a special prepared opening. Refer to figure 5. Note: Make sure there are no Plumbing Pipes, AC Electrical Wiring or Heating/Cooling Ductwork in the wall between the studs where the Loudspeaker is to be mounted. 4. For the XLS320 and XLS340, cut an opening in the existing finished wall using the dimensions in the figure 6 Chart. The In Wall Mounting Bracket(s) can be oriented for anchoring the Bracket to the wall stud either on the left or right hand side of the Loudspeaker. Refer to the Top Inside Views in figures 7 and 8. Note: The In Wall Bracket(s) must be secured to a wall stud on one side, with the other side clamped to the dry wall. In new construction the Loudspeaker Mounting Bracket(s) should be secured to wall studs on both sides. 5. To mount the XCS350 Hori- zontally requires wall con- Figure 5Figure 4 Stud Stud Figure 1 Screw Removal Location XLS340 XLS320 Remove Screws Remove Screws Remove Screws XCS350 Remove Screws Remove Screws Figure 3
Page 2
3 Installation Figure 6 In-Wall kit X Y CK32011- 7/8 inches* 30.16cm 15 -15/16 inches 40.48cm CK34011- 7/8 inches* 30.16cm 44 -5/8 inches 113.36cm CK35034 -5/8 inches 87.96cm 11 -3/16 inches 28.42cm Cut Out Dimensions * For new construction, place studs on a 12-15/16 inch center with a drywall cutout opening of 11-3/16 inches 28.42cm struction of a specially prepared opening with the dimen- sions in the figure 6 Chart. 6. Attach the single bracket for the XLS320 to the rear of the Loudspeaker using the supplied machine screws. Refer to figures 1 and 10. 7. Attach two brackets to the rear XLS340 and XCS350 Loudspeaker using the supplied machine screws. Refer to figures 1 and 11. 8. For the XLS320, attach the wall clamp to the rear of the bracket (left or right side) with the two machine screws, lock washers and flat washers, rotate the screws several turns into the clamp. Refer to figures 10 and 12. Note: If new construction is applicable (with studs on 12- 15/16 inch centers) skip this step and proceed to step 14 on the next page. 9. Position the clamp towards the center of the bracket with the screw heads in the Install position. Refer to figure 9. Note: If you have not already done so, set the Jumpers for Tweeter Array Optimization and connect the hookup cable to the Loudspeaker terminals at this time. 10. For the XLS340 and XCS350, attach the wall clamp to the rear of the brackets (left or right side) with the two machine screws, lock washers and flat washers, rotate the Openings for the screws securing the bracket to the wall stud Openings for the screws securing the bracket to the XLS320 Openings for the screws securing dry wall clamp to the bracket Openings for the screws securing the bracket to the wall stud Openings for the screws securing the grille frame to the bracket Bracket Figure 10 Openings for the screws securing the bracket to the XLS340 and XCS350 Openings for the screws securing the bracket to the wall studOpenings for the screws securing dry wall clamp to the bracket Openings for the screws securing the grille frame to the bracket Openings for the screws securing the bracket to the wall stud Bracket Figure 11 screws several turns into the clamp. Refer to figures 11, 13 and 14. Note: If new construction is applicable (with studs on 12- 15/16 inch centers) skip this step and proceed to step 14. 11. Position the clamp towards the center of the bracket with the screw heads in the Install position. Refer to figure 9. Note: If you have not already done so, set the Jumpers for Tweeter Array Optimization and connect the hookup cable to the Loudspeaker terminals at this time. 12. Place the Loudspeaker, with the attached bracket(s), into the prepared wall opening with the side containing the dry wall clamp first. 13. Secure the bracket(s) through the wall finish material and into the studs, using the supplied wood screws. Refer to figures 10, 11 and 12. 14. On the other side of the bracket, position the clamp to en- gage the inside of the dry wall with the screws moved to the Clamp position and tighten the machine screws Install Clamp Figure 9 Figure 7 Stud and ScrewDrywall Clamp and Screw Top of the Loudspeaker Bracket Bracket Figure 8 Top of the LoudspeakerStud and Screw Drywall Clamp and Screw Bracket Bracket
