McIntosh C8 C8 P Owners Manual
This is the 12 pages manual for McIntosh C8 C8 P Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh C8 C8 P Owners Manual (Ocr-read)
Page 1

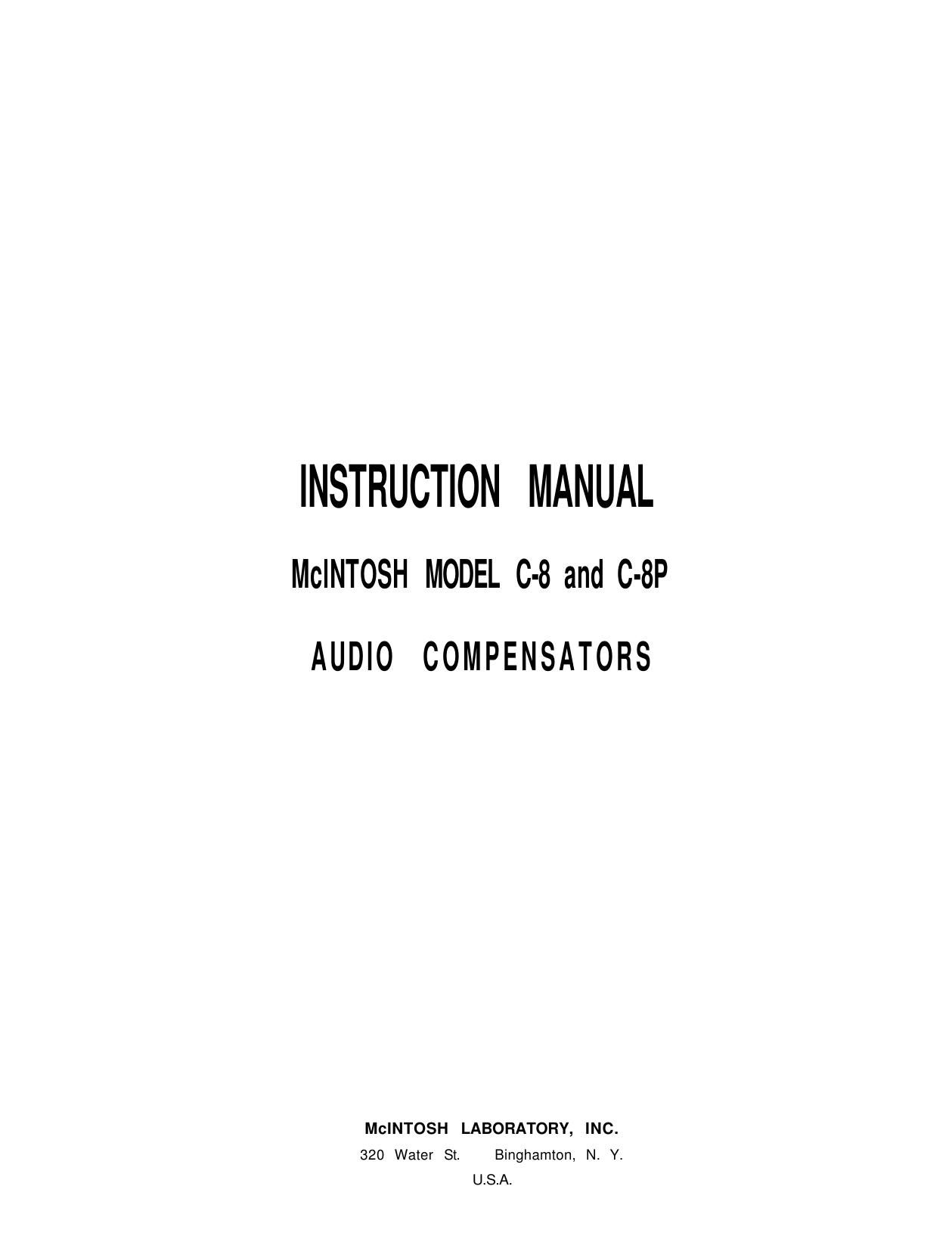

- 1 - INSTRUCTION MANUAL McINTOSH MODEL C-8 and C-8P AUDIO COMPENSATORS The McIntosh Audio Compensator is a complete control unit for professional or home entertainment systems. The Model C-8 derives its power from any McIntosh power amplifier: the Model C-8P is self-powered. Five input channels are provided: three which produce constant amplifica- tion over the audio spectrum of 20-20, 000 cycles, and two which are equalized for magnetic phonograph cartridges. THE AUDIO COMPENSATOR IS A COMPLETE PRE-AMPLIFIER AND RECORD COMPENSATOR: THEREFORE, THE USE OF AN AUXILIARY EQUAL- IZER OR PRE-AMPLIFIER WITH THIS UNIT IS NOT RECOMMENDED. INSTALLATION OF MODEL C-8 and C-8P, AUDIO COMPENSATORS The C-8 and C-8P Audio Compensator may be mounted in any type equip- ment cabinet, relay rack panel, door, wall, etc., or in its own cabinet for chair side operation. It is not necessary to disassemble the Audio Compensator for mounting. Cut a rectangular hole in the panel to be used for mounting, insert the Audio Compensator, and secure with wood or machine screws. Mounting tem- plates are provided with this manual for the C-8 and C-8P. When installing the C-8P, the power supply section should be mounted at least two feet from the Audio Compensator. After these units have been secured in their desired location, proceed as follows: 1. Connect speaker to output of power amplifier. 2. Insert power amplifier line cord into one of the Auxiliary A.C. receptacles provided at the rear chassis of the Audio Compensator.
Page 2
- 2 - 3. C-8: Connect inter-unit cable to socket labeled "PRE-AMP. INPUT" on McIntosh power amplifiers. CAUTION: THE INTER-UNIT CABLE MUST NOT BE REMOVED FROM THE C-8. C-8P: Insert cable of D-8 power supply into socket labeled "INTER- UNIT CABLE" on C-8P. Connect audio cable provided between RETMA pin jack labeled "MAIN OUTPUT" on C-8P and 2.5V input of power amplifier. (Socket labeled "PRE-AMP INPUT" on McIntosh power amplifiers.) 4. The Audio Compensator delivers 2.5 volts of audio signal at full output. The gain control of the power amplifier should be adjusted as outlined in the amplifier instruction manual for this sensitivity. 5. Turn the volume control on the Audio Compensator to "OFF". 6. Insert power cord of the Audio Compensator into a 117 V.A.C. power outlet. 7. Turn the Selector switch on the Audio Compensator to "5" and Bass control fully clockwise. 8. Turn the volume control on the Audio Compensator clockwise until the power switch is activated. Allow thirty seconds for warm-up, then advance the volume control to "10". 9. C-8: Adjust the hum reducing potentiometer on the power amplifier for minimum hum. C-8P: Adjust the hum reducing potentiometer on the power supply for minimum hum. 10. Turn the volume control on the Audio Compensator to off. 11. Insert inputs into their proper jacks at the back of the Audio Compensator, and all A.C. power cords into the A.C. outlets provided.
