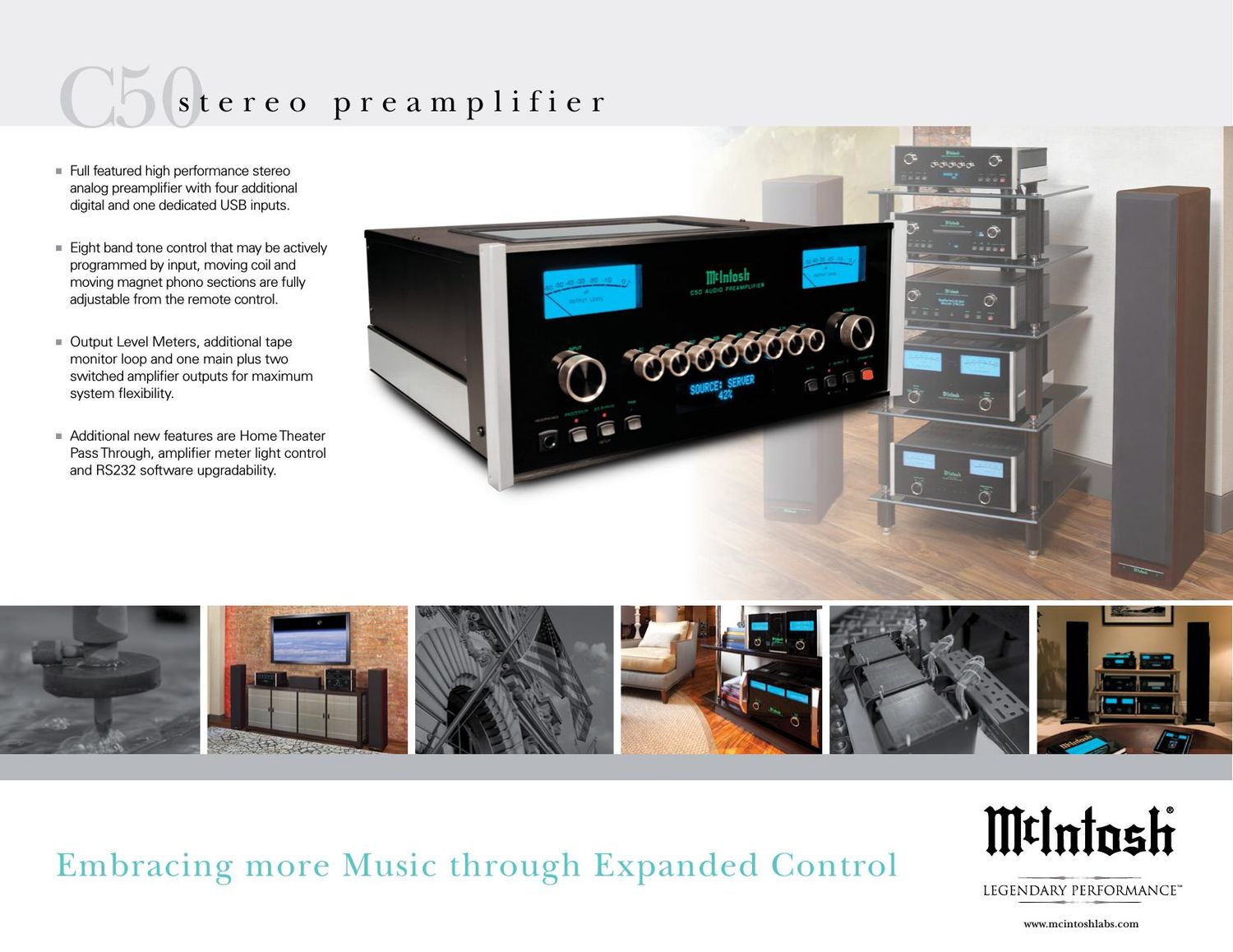

McIntosh C50 Brochure

Page 1

www.mcintoshlabs.com Frequency Response: +0, -0.5dB from 20Hz to 20kHz +0, -3.0dB from 15Hz to 100kHz Total Harmonic Distortion: 0.002% maximum from 20Hz to 20kHz Rated Output Voltage: Unbalanced Main & Outputs 1 & 2 : 2.5 Vrms Balanced Main & Outputs 1 & 2: 5 Vrms Maximum Voltage Output: Unbalanced Main & Outputs 1 & 2: 8 Vrms Balanced Main & Outputs 1 & 2: 16 Vrms Overall Dimensions (W x H x D): 17-1/2 (44.45cm) x 7-5/8 (19.37cm) including feet x 18 (45.72cm) including the front panel, knobs and cables Weight: 28.5 lbs (12.9kg) net, 44 lbs (20kg) in shipping cartonVRV (Variable Rate Volume) Digital Controlled Attenuator: The output attenuator controls volume over 214 steps of 0.5dB each with accuracy within 0.1dB. The volume vs. rotation rate varies as preamplifier gain varies and attenuation changes occur at the zero crossings of the audio signal to prevent audible artifacts during adjustment. For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. Companion Products The McIntosh MC452 Power Amplifier, MR88 AM/FM/HD Tuner, MCD500 SACD/CD Player, MT10 Turntable, XR200 Loudspeakers, MEN220 Room Correction System and MPC1500 Power Controller are logical companions for the C50 Stereo Preamplifier. Your Authorized Dealer can provide additional information on other McIntosh product combinations. To learn more, please call us at 1.800.538.6576. Inverted Double-Chassis Design: All analog signals and amplification are nestled into the top section, protected from any noise generated by the power supply or digital circuits that are contained in the bottom section. This achieves the performance of a dual-box component with the convenience of a single-chassis component and provides for ultra-short cabling between sections. Silent Electromagnetic Switching: Signal routing is accomplished through digital controlled electromagnetic switching devices. Precision switch contact, isolated from environmental contamination inside inert gas-filled tubes, provide the most reliable, quietest and lowest distortion switching possible. 35012401 C50 stereo preamplifier
