Mcintosh c 41 brochure
This is the 2 pages manual for mcintosh c 41 brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from mcintosh c 41 brochure (Ocr-read)

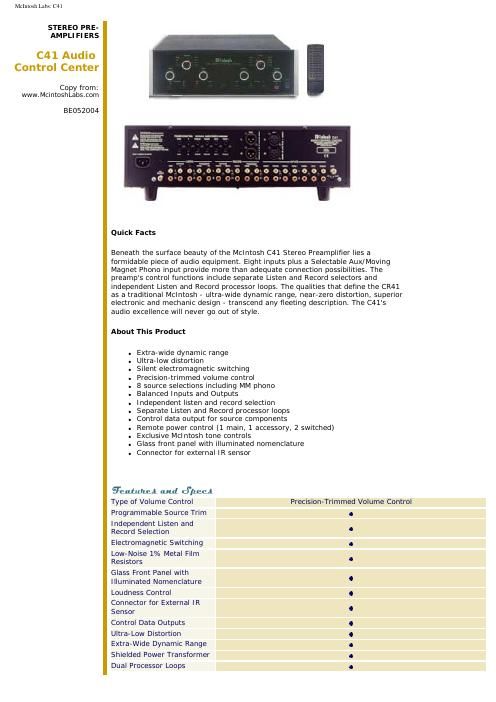

Page 1
McIntosh Labs: C41 Balanced Input(s) Phono Input Moving Magnet Phono Input Balanced Output(s) Type of Amplifier Solid State Headphone Jack Gold Plated Terminals Frequency Response 20 Hz to 20 KHz +0 / -0.5 dB Rated Output Voltage 2.5 Vrms Maximum Unclipped Output 8 Vrms Output Impedance 250 ohms balanced / 250 ohms unbalanced Total Harmonic Distortion .002 % Input Sensitivity 250 mV Maximum Input Signal 10 v Signal to Noise Ratio 103 dB Input Impedence 22k ohms Bass Control +/- 12 dB at 100 Hz Treble Control +/- 12 dB at 10 KHz Warranty (parts) 36 month(s) Warranty (labor) 36 month(s) Dimensions 5.44 in. H x 17.5 in. W x 17.5 in. D (13.8 cm. H x 44.5 cm. W x 44.5 cm\ . D) Weight 23 lbs. (10.5 kg.)
