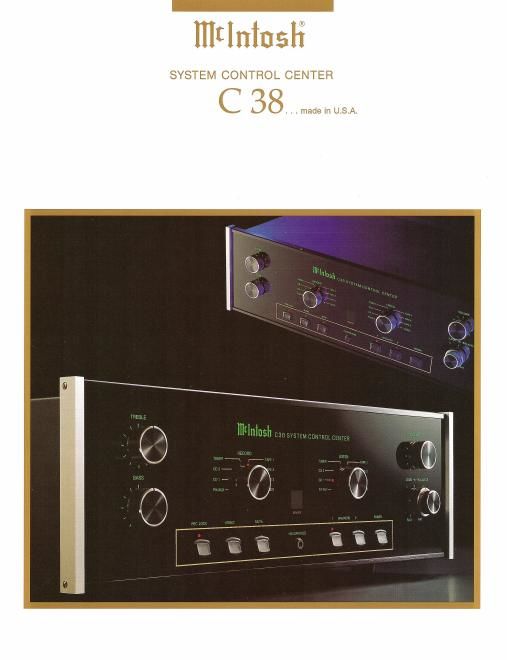

Mcintosh c 38 brochure

Page 1

C 38 REMOTE SYSTEM CONTROL CENTER Remote Control ForTwo Areas The Model C38System Control Center hasbuilt-in capability tocon- trol two separate areas.TheListen cir- cuit corresponds tothe main areaA, and theRecord circuitremote areaB. Interfaces WithTheCR10Remote Control System The C38 includes aconnector to allow itto interface withtheCR10 Remote Control System.TheC38 becomes themain area,andtheCR10 allows fouradditional remoteareasto be added. logic Driven Electromagnetic Switching DIGITAL LOGICintegrated circuits drive ELECTROMAGNETIC SWITCHES for the most reliable, lowestdistortion switching systemavailable. Nine Program SourceSelections PHONO/AUX, CD1,CD2, TUNER, SPECIfiCATIONS PERFORMANCE LIMITS FREQUENCY RESPONSE +0, -05dB from20Hz to20,000Hz RATED OUTPUT 2.5 volts atMain andswitched 1and 2 and Area BOutputs OUTPUT IMPEDANCE 600 ohms atMain, Switched 1and 2 and Area B MAXIMUM VOLTAGEOUTPUT Main andSwitched 1and 2Out- puts, 8volts from 20Hz to20,000Hz TOTAL HARMONIC DISTORTION 0.002% maximum from20Hz to 20,000Hz atrated output SENSITIVITY Phono: 2.5mVfor25V rated output, (O.5V IHF) High Level: 250mV for2.5V rated output, (50mVIHF) SIGNAL TONOISE RATIO, A-WEIGHTED Phono: 90dBbelow 10mVinput, TAPE1, TAPE2, TAPE3,andVIDEO are available forboth Listen andRecord functions. New Features Balanced outputjacksarenow includ- ed. Nine Serial DataPorts allow transfer ofdata tocompatible ac- cessory equipment aswell asthe HC-1 Home Controller. TwoCDcon- trol connectors areprovided fortwo CD players oraplayer andaCD changer. ATuner Control connector is also provided. Separateswitched AC outlets areprovided forarea Aand area Bpower amplifiers. Familiar PopularMcintosh Features The most popular Mcintosh features include anActive Variable Loudness Control, dualsignal processor loops, area muting andswitched outputsfor additional poweramplifiers. (84dB IHF) High Level: 105dB below ratedout- put, (95dB IHF). MAXIMUM INPUTSIGNAL Phono: 90mV High Level: 10V INPUT IMPEDANCE Phono: 47Kohms and65pF capacitance High Level: 22Kohms VOLTAGE GAIN Phono toTape: 40dB Phono toMain: 60dB High LeveltoTape: OdB High LeveltoMain: 20dB TONE CONTROLS Bass andTreble variable 12dBboost to 12dB cut FOUR ACPOWER OUTlETS 1 switched foraccessories, 1switched for area Apower amplifier, 1switched for area Bpower amplifier and1 unswitched The continuous improvement ofits products isthe policy ofMcintosh Laboratory Incorporated whoreserve the right toimprove designwithout notice. Use With TheOptional HC-1 Home Controller The optional Mcintosh ModelHC1 Home Controller canbeadded to allow control ofother devices inthe home suchaslights ormotors. Forex- ample, youcould raiseorlower a motorized TVscreen. Remote Accessories An optional ModelWK-1,wall mounted keypadcanbeused ineach area. Uptofour IRsensors or keypads canbewired oneach remote circuit. Expandable AudiolVideo Switching Five additional AudiolVideo inputscan be added andcontrolled byuse of the optional ModelMVS-3 AudiolVideo Switcher. All Glass FrontPanel The "Classic Mcintosh" allglass front panel hasallnomenclature illumi- nated, including thepushbuttons. POWER REQUIREMENTS 120 volts, SO/60Hz, 25watts MECHANICAL INFORMATION SIZE Front Panel: 171/2 inches (44.5cm) wide, by53/8 inches (13.7cm) high. Depth behind frontpanel including clearance forconnectors is16 7/8 inches (43cm). Knobclearance re- quired infront ofthe mounting panel is 13/8 inches (3.5cm). FINISH Front panel isglass withGoldlTeal nomenclature illumination.The chassis isblack. WEIGHT 23 pounds (10.4Kg)net,35pounds (15.9Kg) inshipping carton. MciNTOSH LABORATORY INC. 2 CHAMBERS ST.,BINGHAMTON, NY13903-2699 607-723-3512
