Mcintosh c 36 brochure

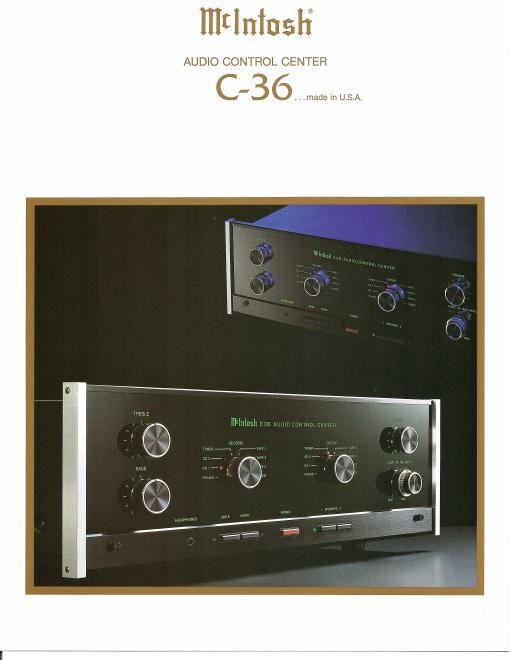

Page 1

C-36 AUDIO CONTROL CENTER logic Driven Electromagnetic Switching DIGITAL lOGICintegrated circuits drive ELECTROMAGNETIC SWITCHES for the most reliable, lowestdistortion signal switching availabletoday. Separate listenandRecord Input Switching Two independent selectorsallowfor recording fromonesource while listening toanother. Gold Plated InputandOutput Jacks Gold plating ischosen because of superior corrosion resistance. Nine Program SourceSelections PHONO/AUX, CD1,CD2, TUNER, TAPE 1,TAPE 2,TAPE 3,and VIDEO for both LISTEN andRECORD. SPECIFICATIONS PERFORMANCE LIMITS FREQUENCY RESPONSE +0, -O.5dB from20Hz to20,000Hz RATED OUTPUT 2.5V atMAIN andSWITCHED 1and 2 Outputs OUTPUT IMPEDANCE Main 600ohms MAXIMUM VOLTAGEOUTPUT Main andSwitched 1and 2outputs, 8V from 20Hz to20,000Hz TOTAL HARMONIC DISTORTION 0.002% maximum from20Hz to 20,OOOHz atrated output SENSITIVITY Phono: 2.5mVfor2.5V rated output, (O.5mV IHF) High Level: 250mV for2.5V rated output (50mVIHF). SIGNAL TONOISE RATIO, A-WEIGHTED Phono: 90dBbelow 10mVinput, (84dB IHF). Exclusive Mcintosh ToneControl Circuits The tone control circuits provide 12dB of BASS orTREBLE boostorcut. Atthe center ordetent control positions, all tone control circuitcomponents are removed fromthesignal pathandthe frequency responseisflat. Active Variable loudness Compensation Loudness compensation canbeadded at any setting ofthe VOLUME control making itindependent ofprogram level. Its circuit elements areremoved fromthe signal pathwhen thecontrol isfully counterclockwise. Dual Processor loops Separate processors canbeused for RECORD andLISTEN. Precision VolumeControl Left and Right sections ofthe volume control haveaccurate channelbalance at all setti ngs. High Level: 105dB below ratedout- put (95dB IHF). MAXIMUM INPUTSIGNAL Phono: 90mV High Level: 10V INPUT IMPEDANCE Phono: 47Kohm and65pF capacitance High Level: 12Kohms VOLTAGE GAIN Phono toTape: 40dB Phono toMain: 60dB High LeveltoTape: OdB High LeveltoMain: 20dB TONE CONTROLS Bass andTreble variable 12dBboost to 12dB cut AC POWER OUTPUTS 8 Switched, and1unswitched POWER REQUIREMENTS 120 Volts, SO/60Hz, 15watts The continuous improvement ofits products isthe policy ofMcintosh Laboratory Incorporated whoreserve the right toimprove designwithout notice. Double Shielded PowerTransformer Copper andsteel shielding eliminate hum pickup fromthepower transformer. Electronically RegulatedPowerSupply Regulators maintainnormaloperation even during powerlinevoltage fluctuations. Auto Muting The outputs aremuted for2seconds during poweruptoprevent hearing annoying clicksandpops generated by other equipment. Extra Switched Outputs Extra switched audiooutputs arepro- vided tofeed additional amplifiersfor remote areas. Headphone Jack A HEADPHONE JACKandamplifier are provided forprivate listening. SIZE Front Panel, 171/2 inches (44.5cm) wide, by53/8 inches (13.7cm) high. Depth behind mounting panelin- cluding clearance forconnectors is 15 1/2 inches (40cm). Knobclearance required infront ofmounting panelis 1 3/8 inches (3.5cm). FINISH The topsection ofthe front panel is glass withgold/teal nomenclature il- lumination. Thebottom section is anodized blackaluminum. The chassis isblack. MOUNTING Exclusive Mcintosh developed pro- fessional PANLOC. WEIGHT 18 pounds (8.2kg)net,30pounds (13.6kg) inshipping carton. MciNTOSH LABORATORY INC. 2 CHAMBERS ST.,BINGHAMTON, NY13903·2699 607-723-3512
