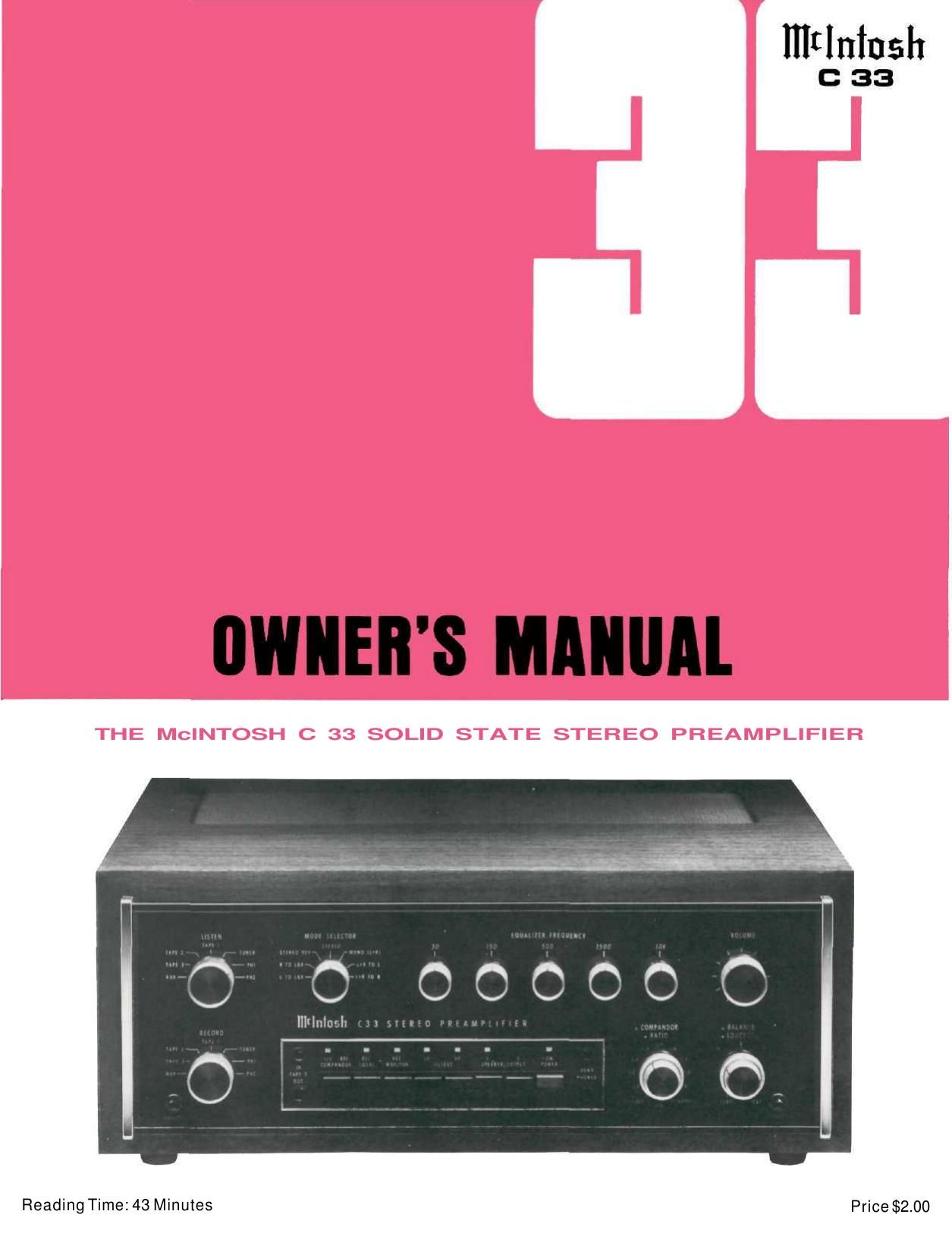

McIntosh C33 Owners Manual

This is the 28 pages manual for McIntosh C33 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 28
McIntosh C33 Owners Manual

Extracted text from McIntosh C33 Owners Manual (Ocr-read)


Page 1

VARIOUS REGULATORY AGENCIES REQUIRE THAT WE BRING THE FOLLOWING INFORMATION TO YOUR ATTENTION. PLEASE READ IT CAREFULLY. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. The Mclntosh you have purchased is a Model C 33. It has a serial number located on the rear panel of the chassis. Record that serial number here: Serial Number The model, serial number and purchase date are im- portant to you for any future service. Record the pur- chase date here: Purchase date Upon application, Mclntosh Laboratory provides a Three-Year Service Contract. Your Mclntosh Authorized Service Agency can expedite repairs when you provide the Service Contract with the instrument for repair. To assist, record your Service Contract number here: Service Contract Number

Page 2

Your C 33 Stereo Preamplifier is designed to perform to its specifications for many years. If you have any questions, please contact: CUSTOMER SERVICE Mclntosh Laboratory Inc. 2 Chambers Street Binghamton, New York 13903-9990 Phone: 607-723-3512 Take Advantage of 3 years of Contract Service... Fill in the Application NOW. Contents INTRODUCTION 2 SIMPLIFIED BLOCK DIAGRAM 3 INSTALLATION 4 SIMPLIFIED CONNECTING DIAGRAM 6 HOW TO CONNECT 7 USING THE FRONT PANEL CONTROLS 12 USING THE PUSHBUTTONS 15 TOP PANEL INFORMATION AND SECONDARY CONTROLS 17 PERFORMANCE LIMITS AND RATINGS 18 PERFORMANCE CHARTS 19 TECHNICAL DESCRIPTION 22 BLOCK DIAGRAM 24 MclNTOSH THREE YEAR SERVICE CONTRACT An application for A THREE YEAR SERVICE CONTRACT is included with this manual. The terms of the contract are: 1. Mclntosh will provide all parts, materials and labor needed to return the measured performance of the instrument to the original performance limits. The SER- VICE CONTRACT does not cover any shipping costs to and from the authoriz- ed service agency or the factory. 2. Any Mclntosh authorized service agency will repair Mclntosh instruments at nor- mal service rates. To receive service under the terms of the SERVICE CON- TRACT, the SERVICE CONTRACT CER- TIFICATE must be presented when the instrument is taken to the service agency. 3. Always have service done by a Mclntosh authorized service agency. If the instrument is modified or damaged as a result of unauthorized repair, the SERVICE CONTRACT will be cancelled. Damage by improper use or mishandl- ing is not covered by the SERVICE CONTRACT. 4. The SERVICE CONTRACT is issued to you as the original purchaser. To pro- tect you from misrepresentation, this contract cannot be transferred to a se- cond owner. 5. To receive the SERVICE CONTRACT, your purchase must be made from a Mclntosh franchised dealer. 6. Your completely filled in application for the SERVICE CONTRACT must be post- marked within 30 days of the date of purchase of the instrument. 7. To receive the SERVICE CONTRACT, all information on the application must be filled in. The SERVICE CONTRACT will be issued when the completely filled in application is received by Mclntosh Laboratory Incorporated in Binghamton, New York. 8. Units in operation outside the United States and Canada are not covered by the Mclntosh SERVICE CONTRACT, re- gardless of the place of purchase. Nor are units acquired outside the U.S.A. and Canada, the purchasers of which should consult with their dealer to ascertain what, if any, service contract or warranty may be available locally. Copyright 1982 © by Mclntosh Laboratory Inc. -1-

Page 6

use a file to square the corners and smooth any ir- regularities in the cut edges, 5. Install the Mounting Strips In the hardware package you will find two mounting strips and two sets of machine screws. For panels that are less than ½ inch (12.7 mm) thick, use the ¾ inch (19.1 mm) screws; for panels that are more than ½ inch (12.7 mm) thick, use the 1¼ inch (31.8 mm) screws. Starting at the right-hand side of the panel, insert a screw of proper length into the center hole in the panel, marked B on the template. On the back of the panel, align a mounting strip with the holes in the panel and tighten the screw in the center hole until the screwhead is pulled slightly into the wood. Repeat this procedure to attach the mounting strip to the left side of the panel. 6. Attach the PANLOC Brackets Using two screws of proper length in the A holes on each side, attach the PANLOC brackets to the cabi- net panel; the short flange is mounted against the front (face) of the cabinet panel. The screws pass through the PANLOC bracket flange, the cabinet panel, and then through the mounting strips previously mounted. 7. Install the Instrument Guide the AC power cord through the panel opening to the back of the cabinet; then, slide the instrument into the opening carefully so that the rails on the bottom of each side of the chassis engage the tracks on the mounting brackets. Continue to slide the instrument into the cabinet until it is stopped by the adjust position latches. Press the latches in- ward, this permits the instrument to slide into the cabinet until its front panel is flush with the cabinet panel. Depress the PANLOC buttons at the lower left and right corners of the instrument panel to lock the unit firmly in the cabinet. Depressing the PANLOC buttons again will unlock the instrument so that it can slide forward to the adjust position; if you press inward on the adjust position latches then you can remove the instrument from the cabinet. -5-
