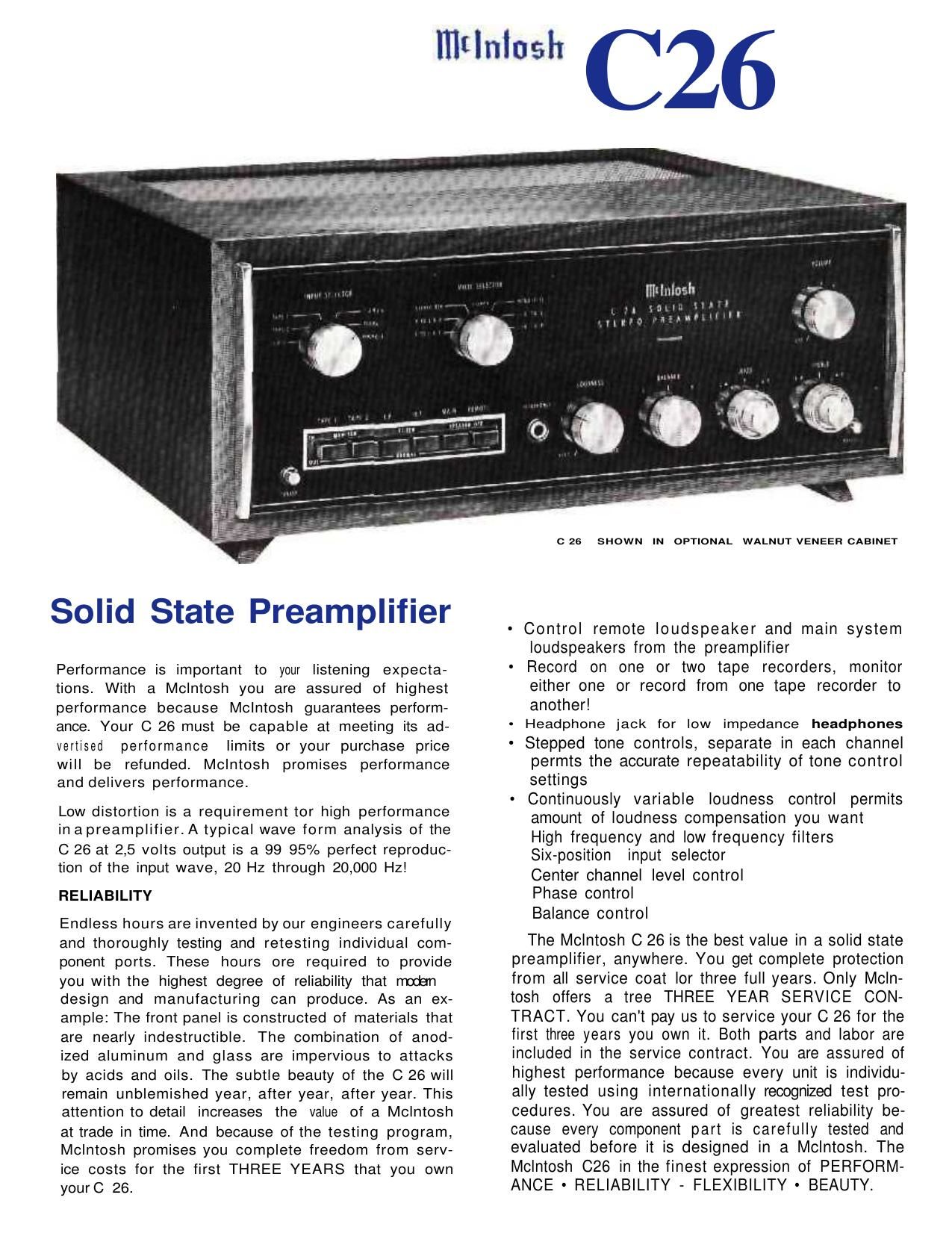

Performance Limits Performance Limits are the maximum deviation from per- fection permitted for a Mclntosh Instrument. We promise you that the C26 you buy must be capable of performance at or exceeding these limits or you gal your money back. Mclntosh is the only manufac- turer that makes this guarantee. FREQUENCY RESPONSE: +0-0.5 dB 20 Hz to 20,000 Hz. DISTORTION: Will not exceed 0.1% at rated output level, 20 Hz to 20,000 Hz. INPUT SENSITIVITY AND IMPEDANCE: AUXILIARY, TUNER, TAPE 1, TAPE 2 0.25 volts at 250.000 ohms. PHONO 1 and PHONO 2 2 millivolts at 47.000 ohms (1,000 Hz), HUM AND NOISE: AUXILIARY, TUNER, TAPE 1, TAPE 2 85 dB be- low rated output. PHONO 1, PHONO 2 74 dB below 10 millivolts input, equivalent to less then 2 microvolts at the Input terminals. OUTPUT LEVEL AND IMPEDANCE: MAIN OUTPUT 2.5 volts with ralert input, 200 ohms source Impedance, to operate into 47.000 ohms or greater. TAPE OUTPUT 0.25 volts from low level inputs, 200 ohms source impedance, to operate into 47,000 ohms or greater, CENTER CHANNEL OUTPUT (L - R) 2.5 volts with rated input to both channels. 1,200 ohms source impedance to operate into 47.000 ohms or greater. A level control adjusts the CENTER CHANNEL out- put from 6 dB to -6 dB with respect to MAIN out- put VOLTAGE AMPLIFICATION: AUXILIARY, TUNER, TAPE 1 and TAPE 2 to MAIN OUTPUT 20 dB To TAPE OUTPUT 0 dB PHONO 1 and PHONO 2 (at 1,000 Hz) to MAIN OUTPUT 62 db to TAPE OUTPUT 42 dB AC POWER OUTLETS: 1 unswitched (Red) 4 switched POWER REQUIREMENT: 120 volts. 50/60 Hz, 15 watts FACILITIES AND FEATURES BASS 11 position rotary switch for each channel, TREBLE: 11 position rotary switches for each channel. LOUDNESS: Flat response, or continuously variable VOLUME: Precision "tracked" at all listening levels The AC power ON/OFF switch is coupled with this control. LF FILTER (Rumble Filter) Flat or roll-off 6 dB per octave below 50 Hz, down to 12 dB at 20 Hz. HF FILTER (Scratch Filter) Flat or roll-off 6 dB per octave above 6.000 Hz, down 12 dB at 20,000 Hz. SPEAKER MAIN - Switch MAIN loudspeaker system. REMOTE-Switch REMOTE loudspeaker system. TAPE MONITOR: Two pushbutton switches. Either of two tape re- corders can be monitored. TRANSISTOR COMPLEMENT: 18 silicon-planar transistors and 3 silicon diodes. MECHANICAL INFORMATION SIZE: Front panel: 16 inches wide (40.64 cm) by 5-7/16 inches high (13.81 cm). Chassis: 15 inches wide (38.1 cm) by 5 inches high (12.7 cm) by 13 inches deep (33.02 cm) including PANLOC mount- ing brackets and back panel connectors. Knob clearance required is 1½ inches (3.81 cm) in front of the mounting panel. FINISH: Front panel is anodized gold and black with special McIntosh gold/teal panel nomenclature illumination. Chassis is black. MOUNTING: Exclusive Mclntosh developed profess- ional PAN-LOC. WEIGHT: 18 pounds (8.16 kg) net, 33 pounds (14.97 kg) In shipping carton. FRANCHISED DEALER LABORATORY INC. 2 Chambers St., Binghamton, N.Y. 13903 Phone area 6D7 723-3512 Made In USA 038-877 B
