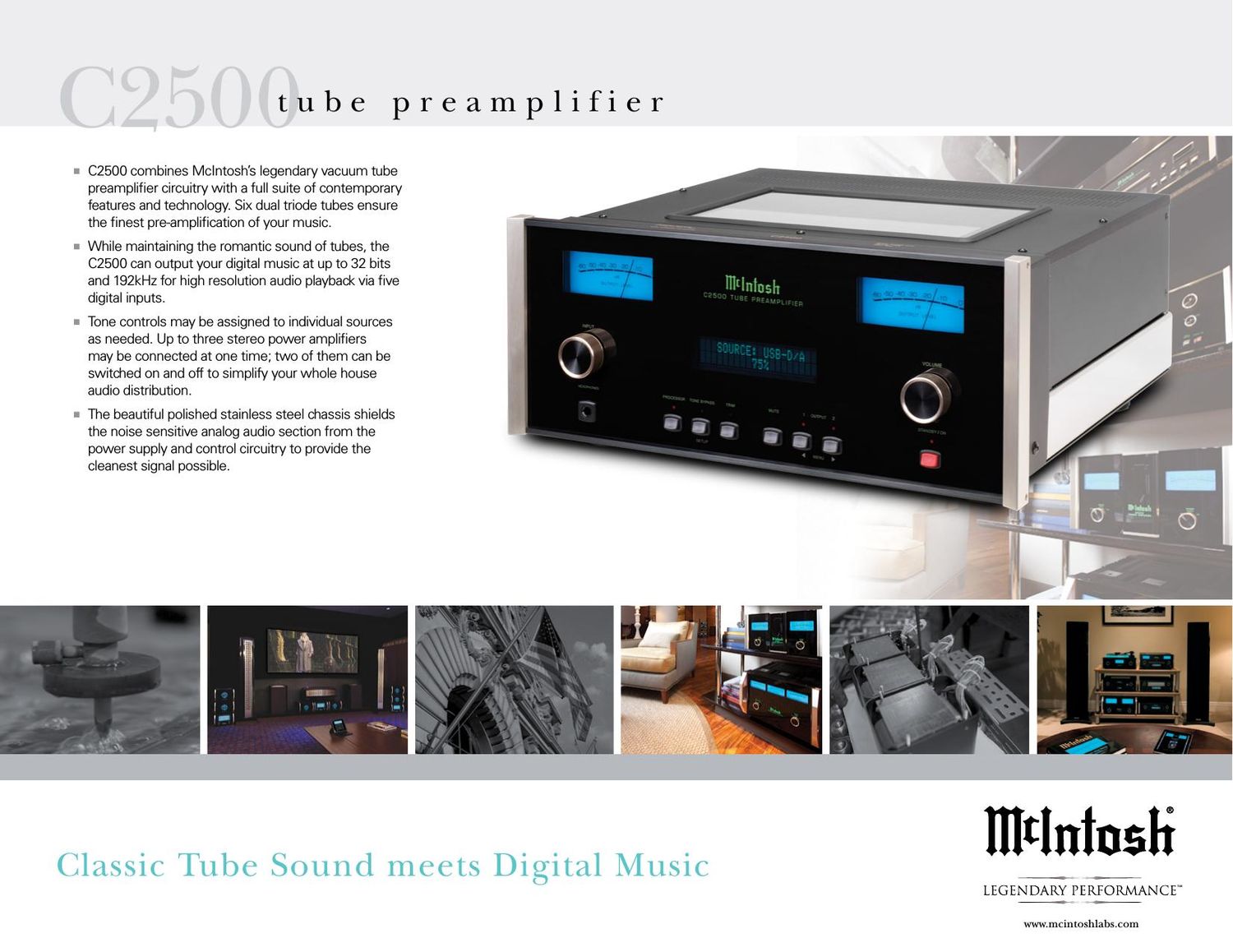

McIntosh C2500 Brochure

Page 1

www.mcintoshlabs.com Frequency Response: +0, -0.5dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz Total Harmonic Distortion: 0.08% Maximum from 20Hz to 20kHz Inputs: Six high level unbalanced Two high level balanced Two Phono: one Moving Coil adjustable, one Moving Magnet Five digital inputs Maximum Output Voltage: Unbalanced Main and Outputs 1 & 2: 8 Vrms Balanced Main and Outputs 1 & 2: 16 Vrms Digital Section: Two Coax, Two Optical assignable and one dedicated USB Audio McIntosh Digital Engine is 32 bit 192kHz, USB 2.0 asynchronous Companion Products The McIntosh MC2301 Tube Amplifier, MCD500 SACD/CD Player, MR88 AM/FM/XM/HD Tuner, MEN220 Room Correction System and XRT1K Loudspeakers are logical companions for the C2500 Tube Preamplifier. Your authorized dealer can provide additional information. To learn more, please call us at 1.800.538.6576. Tone Controls: Bass and Treble, +/- 12dB High Drive Headphone Amplifier: All headphones from 20 to 600 Ohms Home Theater Pass Through: Allows interfacing with a Home Theater system Overall Dimensions (W x H x D): 17-1/2 (44.45cm) x 7-5/8 (19.37cm) x 18 (45.72cm) Weight: 30.5 lbs (13.8kg) net, 46 lbs (20.9kg) in shipping carton 35101300 C2500 tube preamplifier For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
