Mcintosh C22 Service Manual 1

This is the 14 pages manual for Mcintosh C22 Service Manual 1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 14
Mcintosh C22 Service Manual 1

Extracted text from Mcintosh C22 Service Manual 1 (Ocr-read)

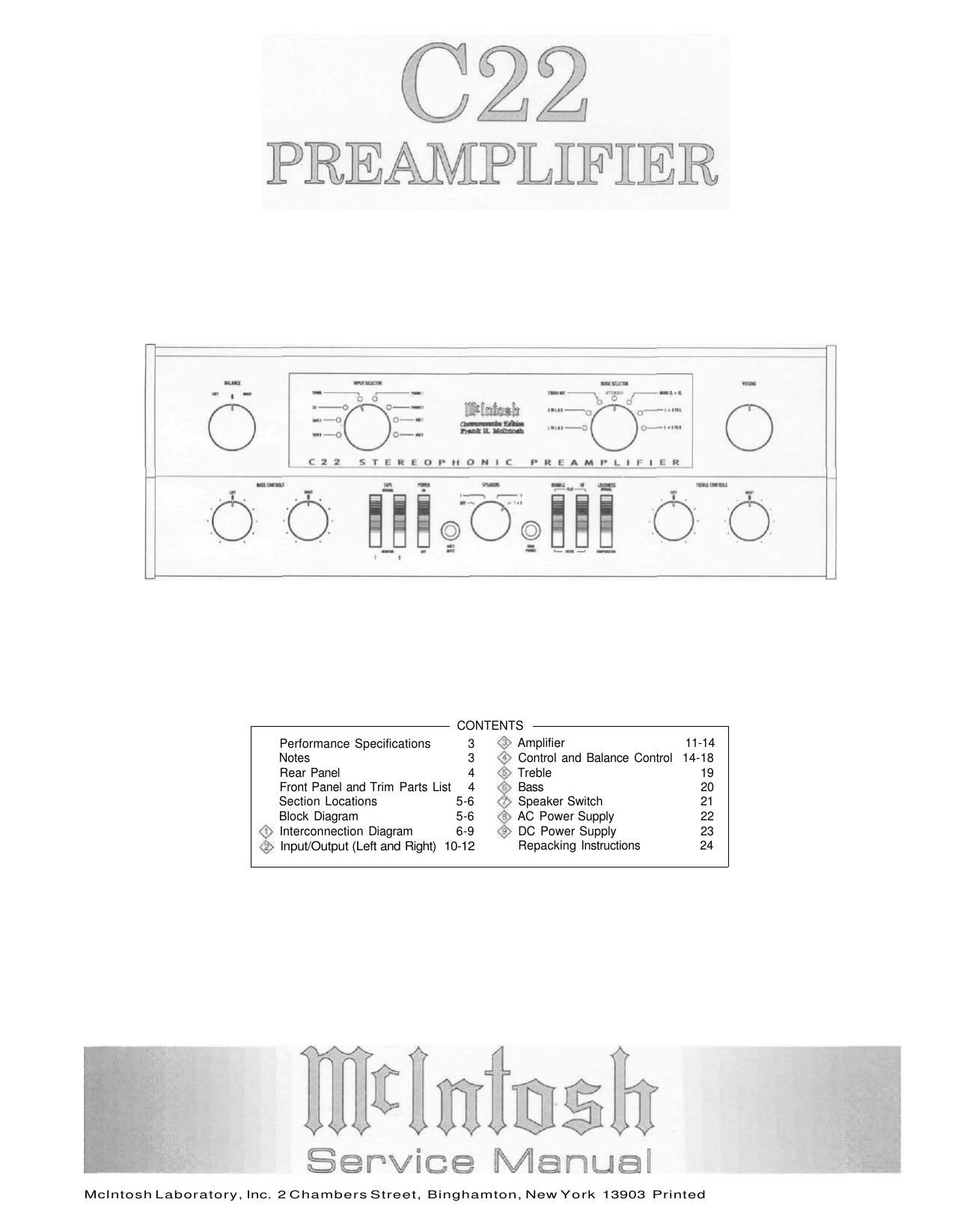

Page 1

Performance Specifications FREQUENCY RESPONSE + 0, -0.5dB from 20Hz to 20,000Hz RATED OUTPUT 2.5V at MAIN and SWITCHED 1 and 2, and BALANCED OUTPUTS MAXIMUM VOLTAGE OUTPUT More than 8V at all outputs TOTAL HARMONIC DISTORTION 0.002% maximum IHF, 0.2% maximum from 20Hz to 20,000Hz at rated output SENSITIVITY Phono: 2.2mV for 2.5V rated output, (0.45mV IHF) High Level: 250mV for 2.5V rated output, (50mV IHF) SIGNAL-TO-NOISE RATIO, A-WEIGHTED Phono: 80dB below 10mV input High Level: 90dB below rated output VOLTAGE GAIN Phono To Tape: 41 dB at 1000Hz Phono To Main: 61 dB at 1000Hz High Level To Tape: 0dB High Level To Main: 20dB INPUT IMPEDANCE Phono: 47K ohms and 65pF Capacitance High Level: 22K ohms TONE CONTROLS Bass and Treble stepped, 20dB boost to 20dB cut AC POWER OUTLETS 4 switched and 1 unswitched, Total capacity 1400 watts POWER REQUIREMENTS 120V, 50/60Hz, 37 watts DIMENSIONS Front Panel: 16 inches (40.6cm) wide by 5-7/16 inches (13.8cm) high. Chassis depth behind mount- ing panel, including clearance for connectors: 14 inches (35.6cm). Knob clearance required in front of mounting panel: 1-1/2 inches (3.8cm). FINISH Anodized gold and black front panel, chassis is black. WEIGHT 16 pounds (7.3Kg) net, 25 pounds (11.4Kg) in shipping carton Notes 1. The four types of heavy lines on the schematics denote the primary signal path in the following manner: = LEFT CHANNEL = RIGHT CHANNEL = LEFT BALANCED = RIGHT BALANCED 2. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are ±10% with respect to ground. A high impedance (10 megohm)voltmeter must be used. 3. Unless otherwise specified: a. Resistor values are in ohms.b. Capacitor values are in microfarads (uF). 4. The voltages enclosed in a box are signal voltages that are measured with a 2.2mV, 1kHz signalconnected to both channels at the PHONO 1 INPUT JACKS. FRONT PANEL CONTROLS are set at: BALANCE CENTER DETENT BASS and TREBLE CENTER DETENT INPUT SELECTOR PHONO 1 LOUDNESS NORMAL MODE STEREO POWER ON VOLUME CLOCKWISE TAPE MONITOR 1 and 2 NORMAL RUMBLE and HF FILTERS FLAT SPEAKERS 1&2 5. On PC Board Drawings, Square Pad Indicates: a. Polarized Capacitors - Positive b. Diode - Cathode c. Others - Pin 1 6. WARNING: Parts marked with the symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. 3

Page 2

Rear Panel Fig. 1 Rear view FRONT PANEL and TRIM PARTS LIST Symbol 016340 016334 018511 018512 018520 018521 C22-FrontPanel 090242 090243 090244 101035 104143 104144 Description Indicator GlassFront Panel Glass Top Panel Extrusion Lower Panel Extrusion End Cap Left End Cap Right Front Panel Complete W/Glass Input/Mode Knob Balance/Volume KnobBass/Speaker/Treble Knob Screw, 4-40 x 5/16 Fill Head Felt Washer 3/4" Dia Felt Washer 5/8" Dia 4
