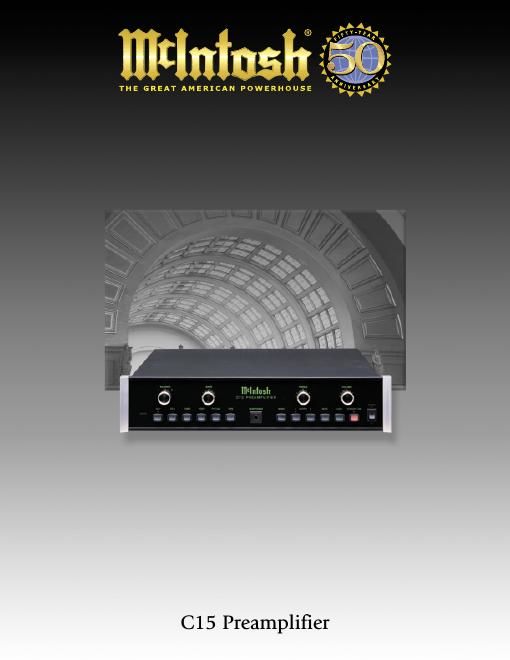

Mcintosh c 15 brochure
This is the 4 pages manual for mcintosh c 15 brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from mcintosh c 15 brochure (Ocr-read)
Page 1
See SYSTEMS ENGINEERING in main brochure for more on McIntosh system architectures. C15 Preamplifier Featured Technologies N othing about the performance and features of the C15 suggest that it is the most affordable McIntosh Control Center. The C15s extensive capabilities make it the ideal centerpiece for what may begin as a pure stereo system and evolve into a multizone audio/video system. SILENT ELECTROMAGNETIC SWITCHING. In a conventional preamp, an input signal travels to a switch, and then travels to the input circuitry. Unfortunately, the farther a signal must travel, the more distorted it becomes. And this says nothing of what detritus a dirty switch can add to the signal. McIntosh Silent Electromagnetic Switching literally brings the switch to the input. The distortion-free switch consists of a glass tube containing oxygen-free gas and two signal leads separated by mere thousandths of an inch. The tube sits in a multilayer copper coil and the entire assembly is encased in shock-absorbent plastic. When DC voltage is applied to the coil in response to a switching command, current flow creates a magnetic field that causes the leads to bend and contact one another, completing the circuit. The inert gas eliminates corrosion of the contacts, ensuring a low-resistance, distortion-free switch that never needs cleaning. Another benefit is that non-selected inputs are truly off, eliminating potential sources of interference. The input selectors on McIntosh Control Centers actually control state-of-the-art silent electromagnetic switches. leadcoil sealed glass tube circuit completes when leads touch lead switching command causes DC voltage at coil
Page 2
C15 Companions About the C15 Companion Products The McIntosh products shown at right are logical companions for the C15. Separate literature is available. Check with your McIntosh dealer for any late additions. McIntosh speaker systems are also covered in detail in separate literature. MC162 Power Amplifier. In terms of power and flexibility, the MC162 is a smart choice for a C15-based system thats expected to grow. If power needs go up, the MC162 can be bridged, upping power to 500W from 160W (4Ω). And its affordability makes it a reasonable choice to also power a second music zone via the C15s additional switched output. MR7084 AM/FM Tuner. A natural companion, the MR7084 tuner is a thoroughly engineered broadcast monitor that reveals the upper limits of AM and FM performance. MVS3 A/V Selector. The MVS3 connects to the C15s VIDEO data output and accommodates five additional A/V sources, resulting in a very capable A/V Control Center. RCT3 Remote Translator. The Translator allows non-McIntosh components to be operated with a McIntosh handheld remote or keypad controller. It connects to the data outputs on the C15 or the MVS3. PC4 AC Power Controller. The PC4 provides five AC outlets (four switched) for turning non- McIntosh components on and off automatically when it is connected to the power control output of a Control Center or Integrated Amplifier. HC1 Home Controller. The HC1 connects to the C15s HOME data output and allows operation of other home devices such as lights and movie screens via a McIntosh handheld remote or key- pad controller. WK2 Keypad Controller or R649 IR Sensor. With switching for two power amplifiers and a connector for an external IR sensor, the C15 can supply music to a second zone, with operation via keypad or IR sensor. M ost consumer electronics products are necessarily viewed as short-term investments because either they dont last or they quickly become obsolete in some way. Coincidentally, manufacturers supply a steady stream of new-and-improved products that you can buy. Again. Behind every McIntosh is a fifty-year heritage of excellence, proudly carried forward by every employee. No productionlines, no price-point engineering, no planned obsolescence. McIntosh equipment is made to sound better and last longer. When McIntosh products are presented to customers, the criteria they have been conditioned to overlook – reliability, longevity, craftsmanship, ease-of-use, adaptability, pride of ownership – suddenly leap to the top of their list. The choice becomes clear: There is nothing like a McIntosh. As seen on the inside surface of this demonstration piece, the screening processfor a McIntosh glass panel entails as many as 12 individual layers. The glass panels are cut using a computer-controlled high-pressure water jet. MC162 POWER AMPLIFIER MR7084 AM/FM TUNER MVS3 A/V SELECTOR RCT3 REMOTE TRANSLATOR PC4 AC POWER CONTROLLER HC1 HOME CONTROLLER WK2 KEYPAD CONTROLLER R649 IR SENSOR PRECISION-TRIMMED VOLUME CONTROL. Level differences among channels in a stereo or surround system compromise sound imaging. The left and right sections of the C15s volume control are electronically trimmed for superior tracking. EXCLUSIVE MCINTOSH TONE CONTROLS. Judicious use of well-designed bass and treble controls can compensate for acoustical irregularities. The C15s tone controls offer ±12dB adjustments with fine resolution, yet in the flat position are completelyremoved from the signal path. CONTROL DATA OUTPUTS. To facilitate system integration, the C15 outputs control data for sourcecomponents. This allows remote operation of non-McIntosh components either by direct connection to compatible data inputs or via a McIntosh Remote Translator, a learning device that makes it possible to operate virtually any component with the C15s remote. REMOTE POWER CONTROL. This enables the C15 to turn connected power amps on/off. Featured Technologies (contd.)
