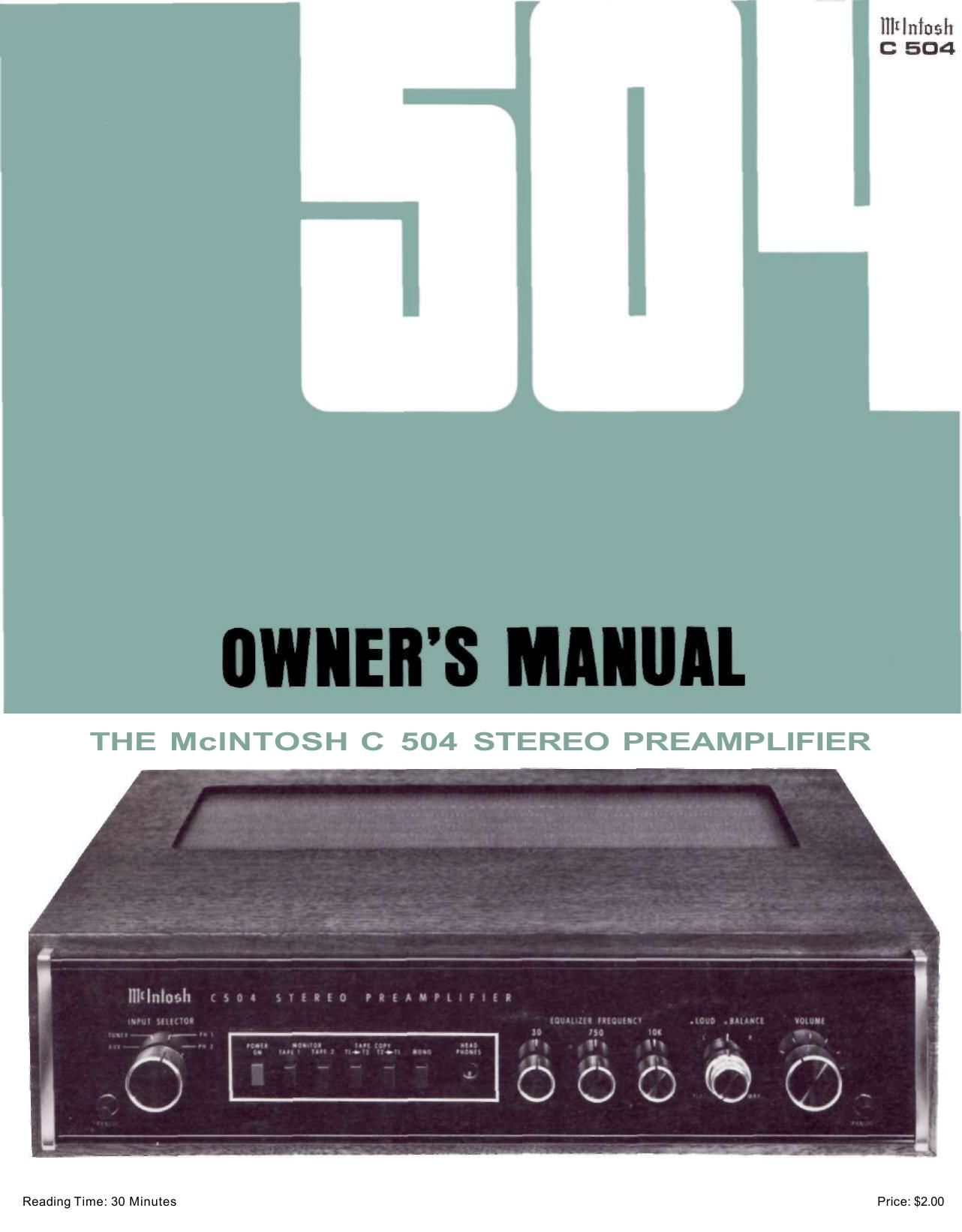

McIntosh C 504 Owners Manual
This is the 16 pages manual for McIntosh C 504 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh C 504 Owners Manual (Ocr-read)
Page 1
Serial Number Purchase date Service Contract Number VARIOUS REGULATORY AGENCIES REQUIRE THAT WE BRING THE FOLLOWING INFORMATION TO YOUR ATTENTION. PLEASE READ IT CAREFULLY. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. The Mcintosh you have purchased is a Model C 504. It has a serial number located on the rear panel of the chassis. Record that serial number here: The model, serial number and purchase date are important to you for any future service. Record the purchase date here: Upon application, Mcintosh Laboratory provides a Three-Year Service Contract. Your Mcintosh authoriz ed Service Agency can expedite repairs when you pro vide the Service Contract with the instrument for re pair. To assist, record your Service Contract number here:
Page 2
Your C 504 Stereo Preamplifier will give you many years of pleasant and satisfactory performance. If you have any questions, please contact: CUSTOMER SERVICE Mcintosh Laboratory Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3512 Take Advantage of 3 years of Contract Service- Fill in the Application NOW. An application for A THREE YEAR SERVICE CONTRACT is included with this manual. The terms of the contract are: 1. Mcintosh will provide all parts, materials and labor needed to return the measured performance of the instru ment to the original performance limits. The SERVICE CONTRACT does not cover any shipping costs to and from the authorized service agency or the factory. 2. Any Mcintosh authorized service agency will repair Mcintosh insturments at nor mal service rates. To receive service under the terms of the SERVICE CON TRACT, the SERVICE CONTRACT CER TIFICATE must be presented when the instrument is taken to the service agency. 3. Always have service done by a Mcintosh authorized service agency. If the instrument is modified or damaged as a result of unauthorized repair, the SERVICE CONTRACT will be cancelled. Damage by improper use or mishan dling is not covered by the SERVICE CONTRACT. 4. The SERVICE CONTRACT is issued to you as the original purchaser. To pro tect you from misrepresentation, this contract cannot be transferred to a se cond owner. 5. To receive the SERVICE CONTRACT, your purchase must be made from a Mcintosh franchised dealer. 6. Your completely filled in application for the SERVICE CONTRACT must be postmarked within 30 days of the date of purchase of the instrument. 7. To receive the SERVICE CONTRACT, all information on the application must be filled in. The SERVICE CONTRACT will be issued when the completely filled in application is received by Mcintosh Laboratory Incorporated in Binghamton, New York. Copyright 1980 by Mcintosh Laboratory Inc. -1- Contents INSTALLATION 2, 3 HOW TO CONNECT AND BACK PANEL INFORMATION 4 FRONT PANEL INFORMATION AND USE OF CONTROLS 6, 7 PERFORMANCE LIMITS 8 PERFORMANCE CHARTS 9 TECHNICAL DESCRIPTION 10 BLOCK DIAGRAM 12, 13 MclNTOSH THREE YEAR SERVICE CONTRACT
