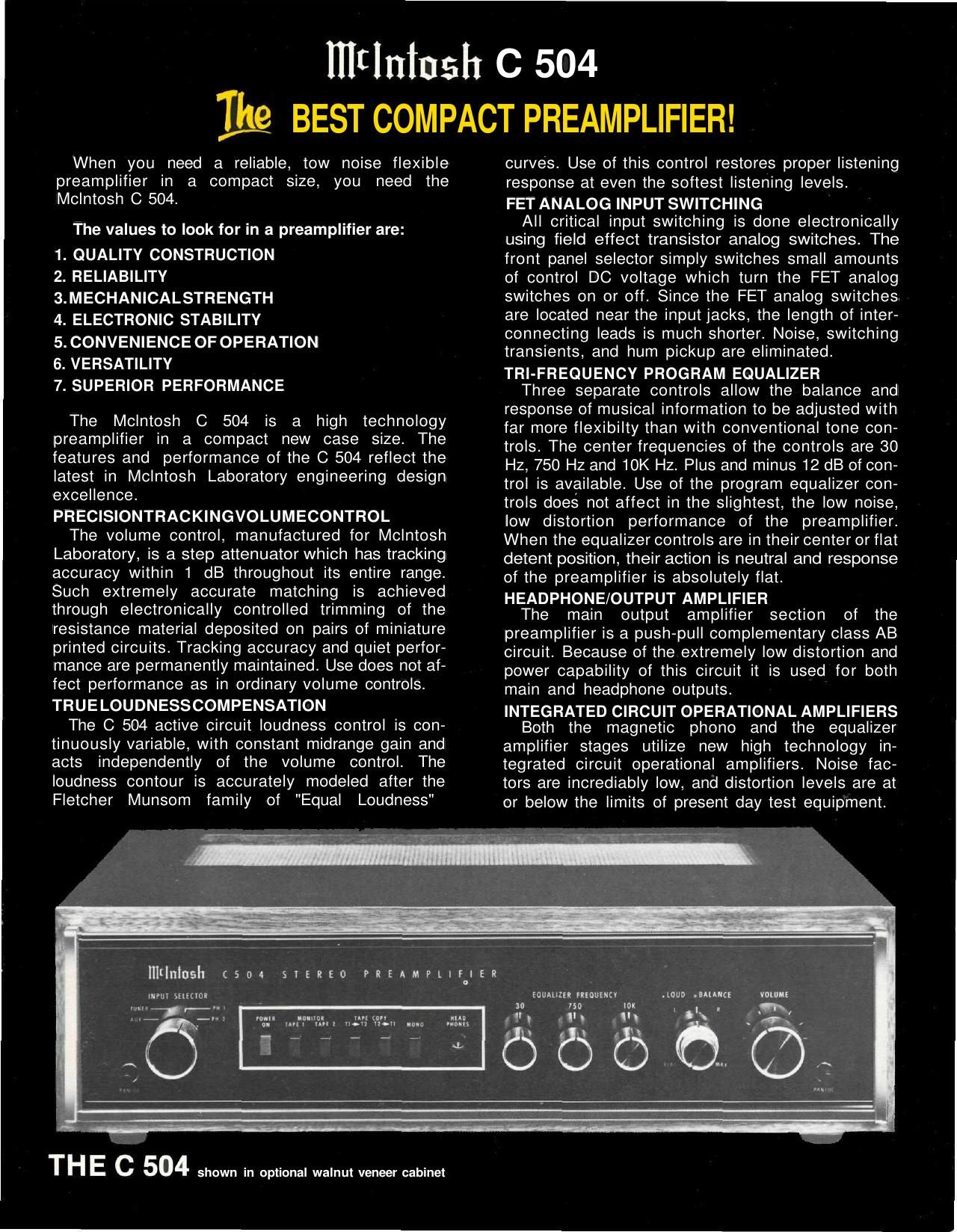

C 504 Performance Limits PERFORMANCE GUARANTEE Performance limits are the maximum deviation from perfec- tion permitted for a Mclntosh instrument. We promise you that when you purchase a new C 504 from a Mclntosh Franchised dealer it will be capable of performance at or exceeding these limits or you can return the unit and get your money back. Mclntosh is the only manufacturer that makes this statement. FREQUENCY RESPONSE + 0 -0.5 db from 20Hz to 20 kHz OUTPUT LEVELS Main Out Headphone Tape Out 2.5V 750mV 250mV DISTORTION 0.02% maximum at 2.5V output from 20 Hz to 20 kHz INPUT SENSITIVITY AND GAIN Input to Main Out Phone 1 and 2 Tuner, Aux, Tape 1 and 2 Input to Headphone Out Phono 1 and 2 Tuner, Aux, Tape 1 and 2 Input to Tape Out Phono 1 and 2 Tuner, Aux, Tape 1 and 2 2.2mV in for 2.5V out (61.1 dB gain at 1 kHz) 250mV in for 2.5V out (20 dB gain at 1 kHz) 2.2mV In for 750mV out (50.7 dB gain at 1 kHz) 250mV in for 750mV out (9.5 dB gain at 1 kHz) 2.2mV in for 250mV out (41.1 dB gain at 1 kHz) 250mV in for 250mV out (0 dB gain at 1 kHz) SIGNAL TO NOISE Phono 1 and 2 -90 dB IHF A-weighted, below 10mV input -80 dB unweighted, below 10mV input Tuner, Aux, Tape 1 and 2 - 100 dB IHF A-weighted, below 250mV input -90 dB unweighted, below 250mV input INPUT IMPEDANCE Phono 1 and 2 47kW and 50pF Tuner, Aux, Tape 1 and 2 47kW OUTPUT IMPEDANCE Main Out Headphone Tape Out less than 100W (to operate into 5kW or greater) 8W less than 200W (to operate into 5kW or greater) EQUALIZER CONTROL RESPONSE Center Fre- quencies Boost and Cut 30, 750, and 10 kHz ±12 dB GENERAL INFORMATION POWER REQUIREMENT 120 Volts 50/60 Hz, 25 Watts SEMI CONDUCTOR COMPLEMENT 15 Transistors 14 Field Effect Transistors 11 Silicon Diodes 11 Integrated Circuits MECHANICAL INFORMATION SIZE: Front panel measures 16 inches wide (40.6 cm) by 3 5/8 inches high (9.2 cm). Chassis measures 14 3/4 inches wide (37.5 cm) by 2 3/8 inches high (6.0 cm) by 14 1/2 inches deep (36.8 cm), including connectors. Knob clearance required is 1 1/4 inches (3.2 cm) in front of mounting panel. FINISH: Front panel is anodized gold and black with special gold/teal nomenclature illumination. Chassis is black. MOUNTING: Exclusive Mclntosh developed professional PANLOC WEIGHT: 14 pounds (6.4 kg) net, 25 pounds (11.3 kg) in ship- ping carton. FRANCHISED DEALER The continuous improvement of its products is the policy of Mclntosh laboratory incorporated, who reserves the right to improve design without notice. Printed in U.S A 039252 MCINTOSH LABORATORY INC. 2 CHAMBERS ST., BINGHAMTON, N.Y. 13903 607-723-3512
