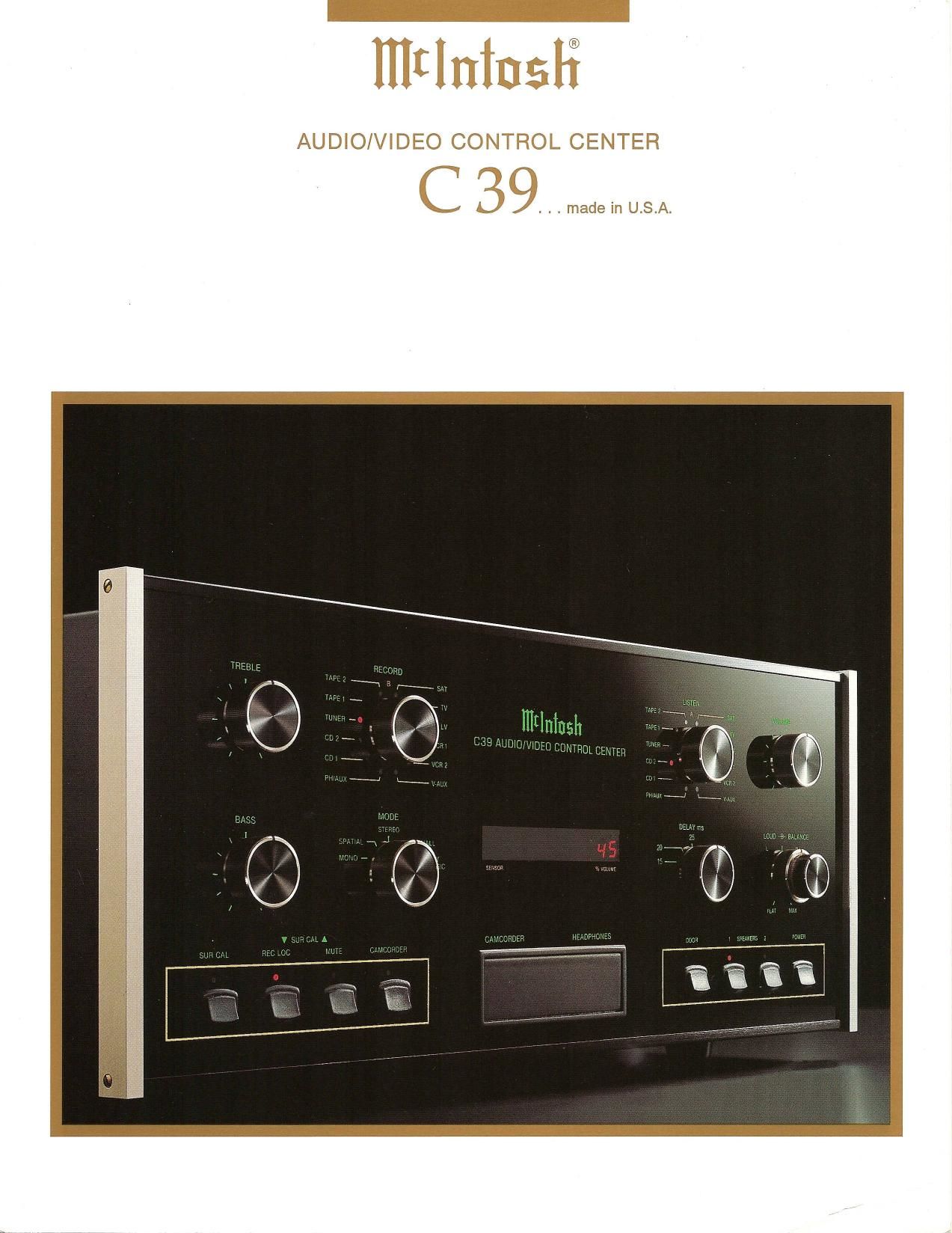

McIntosh C 39 Brochure

This is the 2 pages manual for McIntosh C 39 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
McIntosh C 39 Brochure

Extracted text from McIntosh C 39 Brochure (Ocr-read)


Page 2

FEATURES AND BENEFITS

Remote Control For Two Areas

The Model C39 Audio/Video Control
center has built-in capability to con-
trol two separate areas, The Listen cir-
cuit corresponds to the Main area A,
and the Record circuit remote area B.

Dolby Pro LogicN Built~ln

The Dolby Pro LogicW Surround
Sound decoder circuits are included
in the C39, together with the various
required outputs. The C39 will make
an excellent master Audio/Video con-
trol center for a Home Theater
system.

Interfaces With The CR 10

The C39 includes a connector to
allow it to interface with the CR10
Remote Control System. The C39
becomes the Main area and the CR10
allows four additional remote areas to
be added.

SPECIFICATIONS

PERFORMANCE LIMITS

FREQUENCY RESPONSE
+0, ~05dB from 20Hz to 20,000Hz

RATED OUTPUT
25V at Main and Switched 1 and 2
Outputs

OUTPUT IMPEDANCE
Main, 600 ohms

MAXIMUM VOLTAGE OUTPUT
8V at Main and Switched 1 and 2
Outputs, from 20HZ to 20,000HZ

TOTAL HARMONIC DISTORTION
0.002% from 20Hz to 20,000Hz at
rated output -

SENSITIVITY

Phono: 2.5mV for 2.5V rated output,
(0.5V IHF)

High Level: 250mV for 2.5V rated
output, (SOmV IHF)

C 39 AUDIO/ VIDEO CONTROL CENTER

Six Audio And Six Audio/Video
Program Source Selections
PHONO/AUX, CD1, CDZ, TUNER,
TAPE1 and TAPE2, (Audio only),
Satellite, TV, LV (Laser Vision), VCR1,
VCRZ and VIDEO/AUX, (Audio/Video),
are available for both Listen and
Record functions.

New Features

Front panel Audio/Video Camcorder
inputs are included. These inputs are
hidden behind a small front panel
with a motor driven cover. Other
features include Dolby Pro Logicw
Delay and Calibration controls, as well
as 13 serial data ports for accessories.
Balanced Output connectors are pro-
vided for the Main Outputs. Control
connectors for two CD players, Tuner
and SCR switcher are also included.

Familiar And Popular
McIntosh Features
The popular McIntosh designed

SIGNAL TO NOISE RATIO

Phono: 90dB below 10mV input,
(84dB IHF)

High Level: 105dB below rated out-
put, (95dB IHF)

MAXIMUM INPUT SIGNAL
Phono: 90mV
High Level: 10V

INPUT IMPEDANCE
Phono: 47K ohms and 65pF
capacitance
High Level: 22K ohms

VOLTAGE GAIN
Phono to Tape: 40dB
Phono to Main: 60dB
High Level to .Tape: OdB
High Level to Main: 20dB

TONE CONTROLS
Bass and Treble variable, 12dB boost
to 12dB cut

features include the Active Variable
Loudness Control, Bass and Treble
controls, area muting, signal processor
loop and switched outputs for addi-
tional power amplifiers.

Optional HC-1 Home Controller
The optional McIntosh Model HC-1
Home Controller can be added to
allow control of other devices in the
home such as lights or a TV screen
motor.

Remote Accessories

An optional Model WK-1 wall
mounted keypad can be used in any
area to control the system. Up to four
IR sensors or keypads can be wired
on each remote circuit.

All Glass Front Panel

The Classic McIntosh all glass front
panel has all nomenclature il-
luminated, including the pushbuttons.

AC POWER OUTLETS

One switched for area A power
amplifier, one switched for area B
amplifier and one unswitched

POWER REQUIREMENTS
120 volts, 50/60Hz, 25 watts

MECHANICAL INFORMATION

SIZE

Front panel measures 17 1/2 inches
(44.5cm) wide, by 7 1/8 inches (18.1cm)
high. Depth behind mounting panel
including clearance for connectors is
15 1/2 inches (39.4cm). Knob clearance
required in front of the mounting
panel is 1 3/8 inches (35cm)

FINISH
The front panel is glass with

Gold/Teal nomenclature illumination.
The chassis is black.

Franchised Dealer

039905

MclNTOSH LABORATORY INC.
2 CHAMBERS ST., BINGHAMTON, NY 13903-2699
607-723-3512

Copyright we: r by Mclmosh uhonlon m.
Printed in the us A
