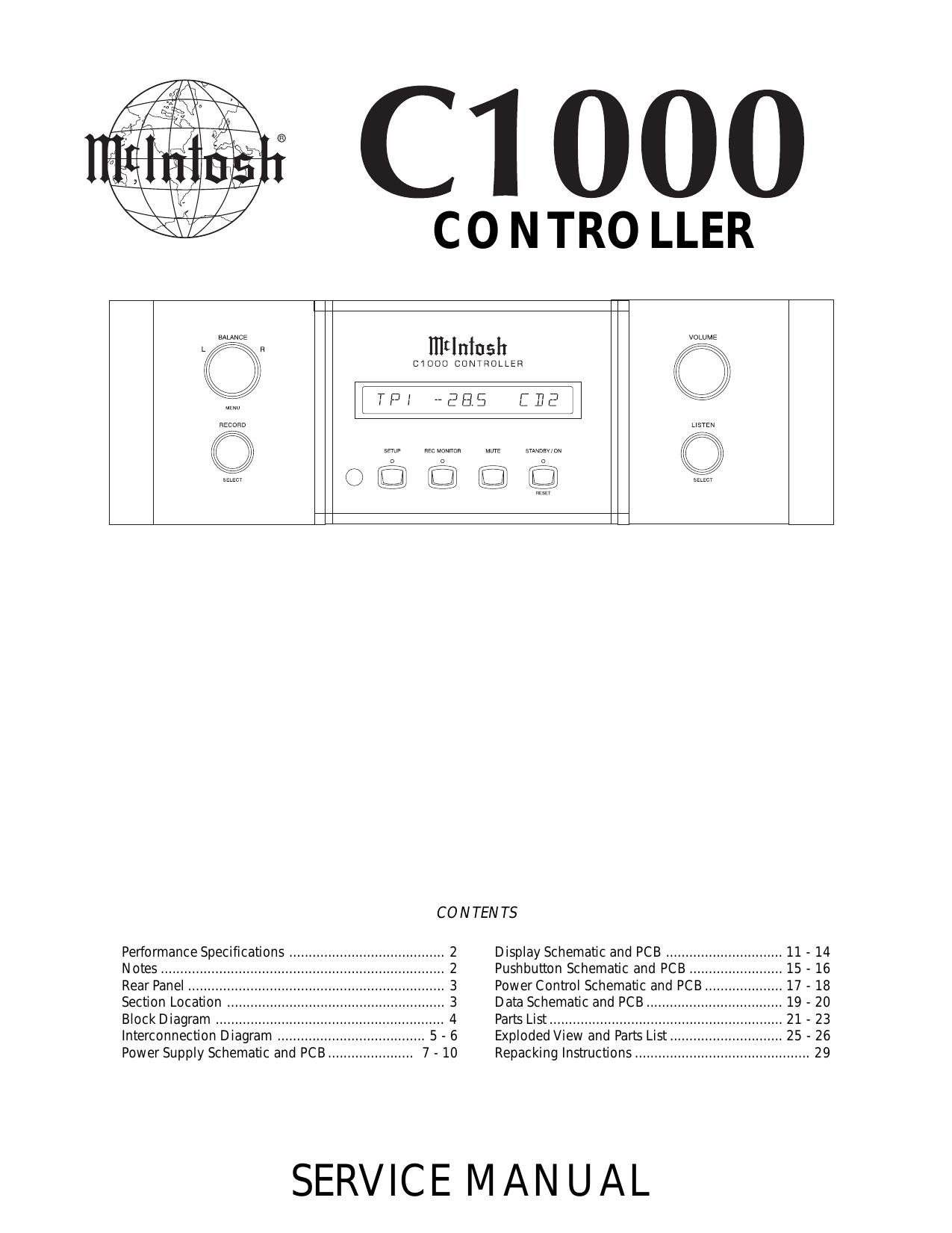

McIntosh C 1000 Service Manual
This is the 20 pages manual for McIntosh C 1000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh C 1000 Service Manual (Ocr-read)
Page 1
PERFORMANCE SPECIFICATIONS 2 1. The heavy notes on the schematic denote the primary signal path. 2. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are +/-10% with respect to ground. A high impedance (10 megaohm) voltmeter must be used. 3. Unless otherwise specified: a. Resistor values are in ohms. b. Capacitor values are microfarads (uF). c. Inductor values are in microhenries (uH).4. On PC board drawings, Square pad indicates: a. Polarized Capacitors - Positive b. Diodes - Cathode c. Others - Pin 1 5.WARNING Parts marked with the symbol have critical characteristics. Use only replacement parts recom mended by the manufacturer. 6. Use McIntosh Remote Control Model HR052 with the MVP861. NOTES General Specifications Power Requirements 100 Volts, 50/60Hz at 120 watts 110 Volts, 50/60Hz at 120 watts 120 Volts, 50/60Hz at 120 watts 220 Volts, 50/60Hz at 120 watts 230 Volts, 50/60Hz at 120 watts 240 Volts, 50/60Hz at 120 watts Note: Refer to the rear panel of the C1000 Controller for the correct voltage. Overall Dimensions C1000C: Width is 17-1/2 inches (44.45cm) Height is 6 inches (15.24cm) including feet Depth is 24 inches (61.0cm) including the Front Panel, Knobs and Interconnect Cables 1 C1000P: Width is 17-1/2 inches (44.45cm) Height is 6 inches (15.24cm) including feet Depth is 24 inches (61.0cm) including the Front Panel and Interconnect Cables 1 C1000T: Width is 17-1/2 inches (44.45cm) Height is 6 inches (15.24cm) including feet Depth is 24 inches (61.0cm) including the Front Panel and Interconnect Cables 1 Weight C1000C - 39.0 pounds (17.7 kg) net 61.4 pounds (27.9 kg) in shipping carton C1000P - 33.0 pounds (15.0 kg) net 53.6 pounds (24.3 kg) in shipping carton C1000T - 34.0 pounds (15.4 kg) net 54.6 pounds (24.8 kg) in shipping carton 1 Interconnect Cables are supplied with the C1000 Preamplifier and C1000 Tube Preamplifier. They are used to connect Preamplifier(s) to the C1000 Controller.
Page 2
CONTROLLER C1000 3 REAR PANEL SECTION LOCATIONS TOP VIEW WITH COVER REMOVED
