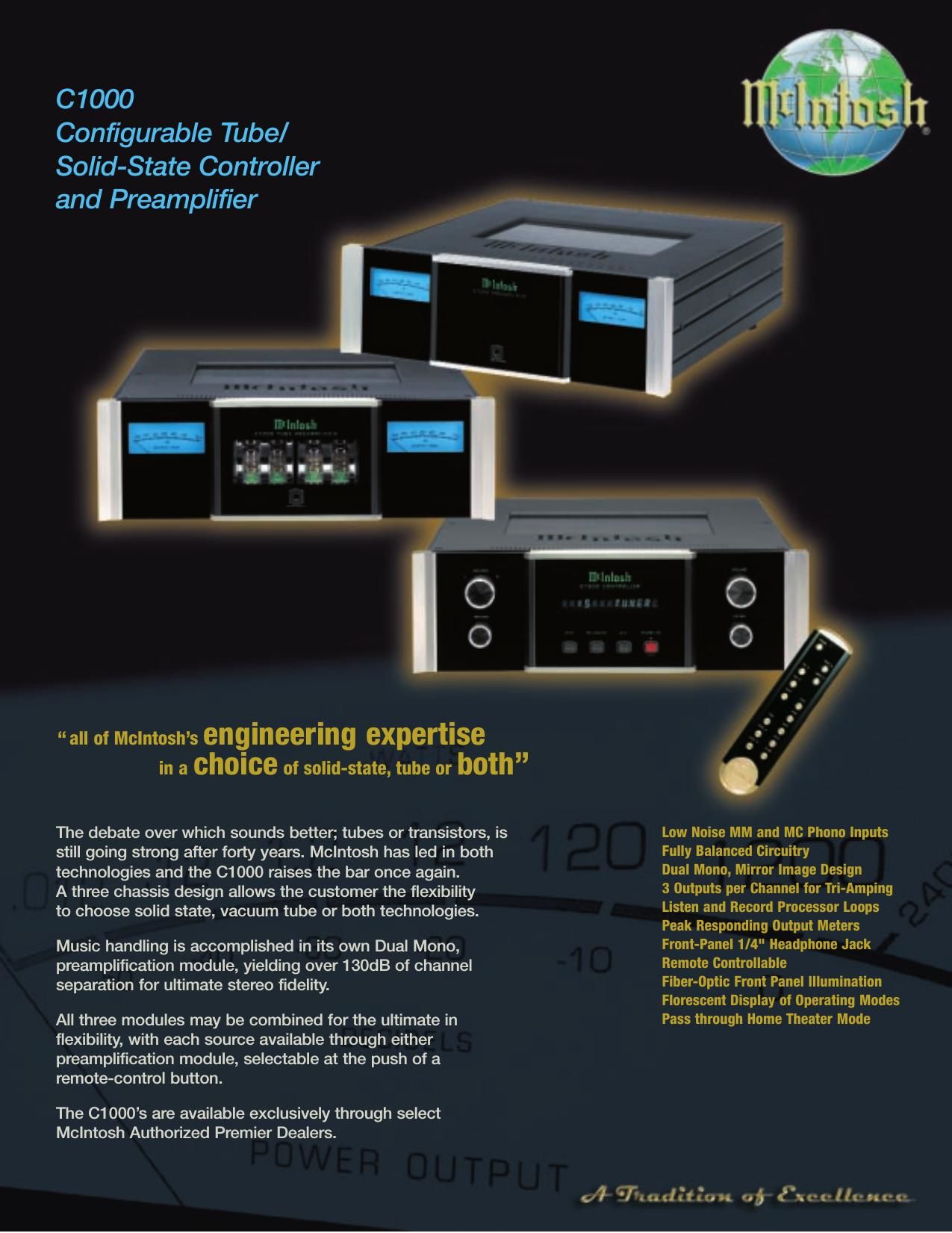

McIntosh C 1000 Brochure

Page 1

For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. 9.05.C1000.5K.JCP 35008300 McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com C1000 Controller Preamp TRI-AMPLIFICATION All three balanced outputs carry the same signal and bypass switching when the TRI-MODE is programmed. This allows tri-amplification of a speaker set, while the unbalanced outputs will still switch to control a remote amplifier. VRV (VARIABLE RATE VOLUME) DIGITALLY CONTROLLED ATTENUATOR The output attenuator controls volume over 214 steps of .5dB each with accuracy within .1dB. The volume versus rotation rate varies as preamplifier gain varies and attenuation changes occur at the zero crossings of the audio signal to prevent audible artifacts during adjustment. ELECTROMAGNETIC SWITCHING Signal routing is accomplished through digitally controlled electromagnetic switching devices. Precision switch contacts, isolated from environmental contamination inside inert gas-filled tubes, provide the most reliable, quietest and lowest distortion switching possible. PHONO SECTION FLEXIBILITY Moving Magnet has adjustable capacitance from the remote to allow flexibility in matching your favorite turntable. Moving Coil offers adjustable resistance also from the remote control for the same flexibility. FREQUENCY RESPONSEC1000P: +0, -0.5dB from 10Hz to 40kHz C1000T: +0, -0.5dB from 10Hz to 20kHz TOTAL HARMONIC DISTORTIONC1000P: 0.002% max from 20Hz to 20kHz C1000T: 0.8% from 20Hz to 20kHz RATED OUTPUTC1000P and C1000T: Balanced: 5VRMS at MAIN, SPKR1 and SPKR2 Unbalanced: 2.5VRMS at MAIN, SPKR1 and SPKR2 MAXIMUM VOLTAGE OUTPUTC1000P: 12V RMS Unbalanced, 25V RMS Balanced C1000T: 8V RMS Unbalanced, 16V RMS Balanced INPUT IMPEDANCEC1000P and C1000T: High Level, 22k ohms Phono MM, 47k ohms; 50 to 750pF, in 50pF steps Phono MC, 25, 50, 100, 200, 400 or 1,000 ohms; 100pF OUTPUT IMPEDANCEC1000P and C1000T: 220 ohms SENSITIVITYC1000P: High Level, 450mV for 2.5V rated output Phono MM, 4.5mV for 2.5V rated output Phono MC, 0.45uV for 2.5V rated output C1000T: High Level, 450mV for 2.5V rated output Phono MM, 4.5mV for 2.5V rated output Phono MC, 0.45mV for 2.5V rated output SIGNAL-TO-NOISE RATIOC1000P: High Level 100dB; Phono 88dB C1000T: High Level 93dB; Phono 80dB CHANNEL SEPARATIONC1000P and C100T: Greater than 130dB MAXIMUM INPUT SIGNALC1000P and C1000T: High Level, 5V Unbalanced, 10V Balanced Phono MM, 50mV; Phono MC, 5mV VOLTAGE GAINC1000P and C1000T: Phono, MC to Record Out: 60dB Phono, MM to Record Out: 40dB High Level to Record Out: 0dB High Level to Main Out: 15dB POWER REQUIREMENTS100 Volts, 50/60Hz, 120 Watts 110 Volts, 50/60Hz, 120 Watts 120 Volts, 50/60Hz, 120 Watts 220 Volts, 50/60Hz, 120 Watts 230 Volts, 50/60Hz, 120 Watts 240 Volts, 50/60Hz, 120 Watts TUBE COMPLIMENT C1000THigh Level: 4-12AX7A Phono: 4-12AX7A OVERALL DIMENSIONS (H x W x D including knobs, connectors and feet) C1000C, C1000P and C1000T: 6" (15.24cm) x 17-1/2" (44.45cm) x 24" (61cm) WEIGHTC1000C: 39 lbs. (17.7kg) net; 61.4 lbs. (27.9kg) in shipping carton C1000P: 33 lbs. (15kg) net; 53.6 lbs. (24.3kg) in shipping carton C1000T: 34 lbs. (15.4kg) net; 54.6 lbs. (24.8kg) in shipping carton.
