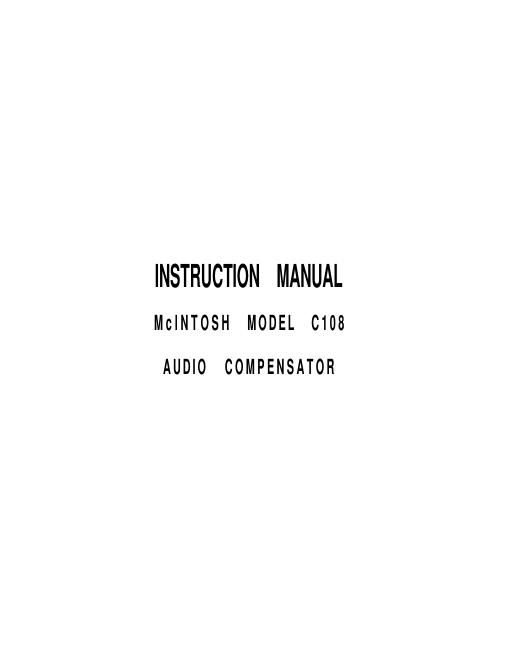

- 1 - INSTRUCTION MANUAL McINTOSH MODEL C-108 AUDIO COMPENSATOR The McIntosh Audio Compensator is a complete control unit for professional and home entertainment systems. Five input channels are provided; three which produce constant amplification over the audio spectrum of 20 cycles to 20, 000 cycles, and two which are equalized for use with magnetic phonograph cartridges. The C-108 Audio Compensator requires an external power source. A McIntosh 50W-2, 20W-2, or A-116 Power Amplifier, or D-101 power supply may be used for this purpose. PHYSICAL SPECIFICATIONS UNIT C-108 C-108a (C-108 in wooden enclosure) C-108h (C-108 with cabinet mounting panel 11" x 4-1/4") DIMENSIONS 10" x 3-1/2" x 7-1/2" 11-1/2" x 4-1/4" x 8" 10" x 3-1/2" x 7-1/2" WEIGHT 6 lbs. 7 lbs. 6 lbs. INSTALLATION WITH McINTOSH AMPLIFIERS 1. Connect speaker to output of amplifier. 2. Insert Power Amplifier line cord into socket labeled "PWR AMP" on C-108. 3. Insert inter-unit cable of C-108 into socket labeled "PRE-AMP" on power amplifier.
