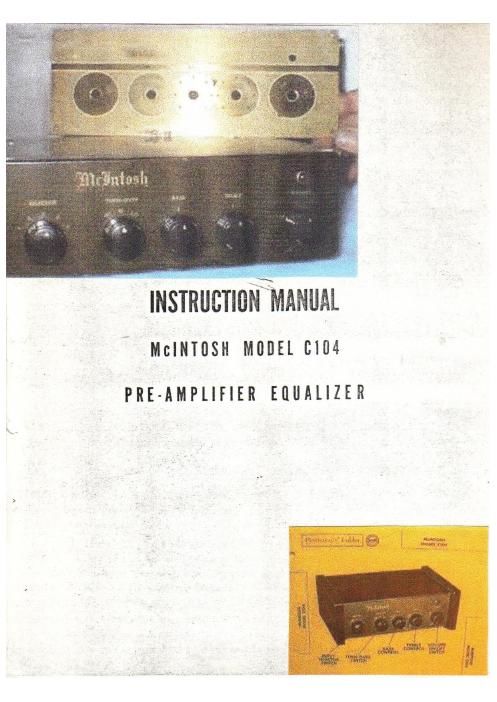

INSTligCTION MANUAL

McINTOSH MODEL C -104

PRE -AMPLIFIER EQUALIZE R

(Serial Nos. 3500 and higher)

The McIntosh Pre- -Amplifler Equalizer is a complete control unit for
professional and home entertainment systems. Five input channels are provided;
three which produce constant amplification over the audio spectrum of 20 cycles
to 20, 000 cycles, and two which are equalized {or use with magnetic phonograph

cartridges.

The C- 10% Pre- -Ampli.fier Equalizer requires an external power source.
A McIntosh 59W- 2, 20W- 2, or A- 116 Power Amplifier, or the D- 101 power
supply may he used for this purpose as shown in Figures 1 and 2.

PHYSICAL SPECIFICATIONS

UNIT OVER-ALL DIMENSIONS WEIGHT

10" x 3-1/2" x 7-1/2" 4 Lbs.
11-1/2" x 4-1/4" x a" 5 Lbs.

Silver engraved panels (L-109) and mahogany engraved panels (L-lOSa.) are
available {or cabinet mounting of the C-104. These panels are supplied with
mounting has-done and measure 11" x 4-1/4.

ESTALLATION WITH Mam AMPLIFIERS (Fig. 1L

1. Connect speaker to output of amplifier.

2; Insert Power Amplifier line cord into socket labeled
PWR AMP" on c-1o4.

3. Insert inter-unit cable of C404 into socket labeled
"PBS-AMP" on power amplifier.
