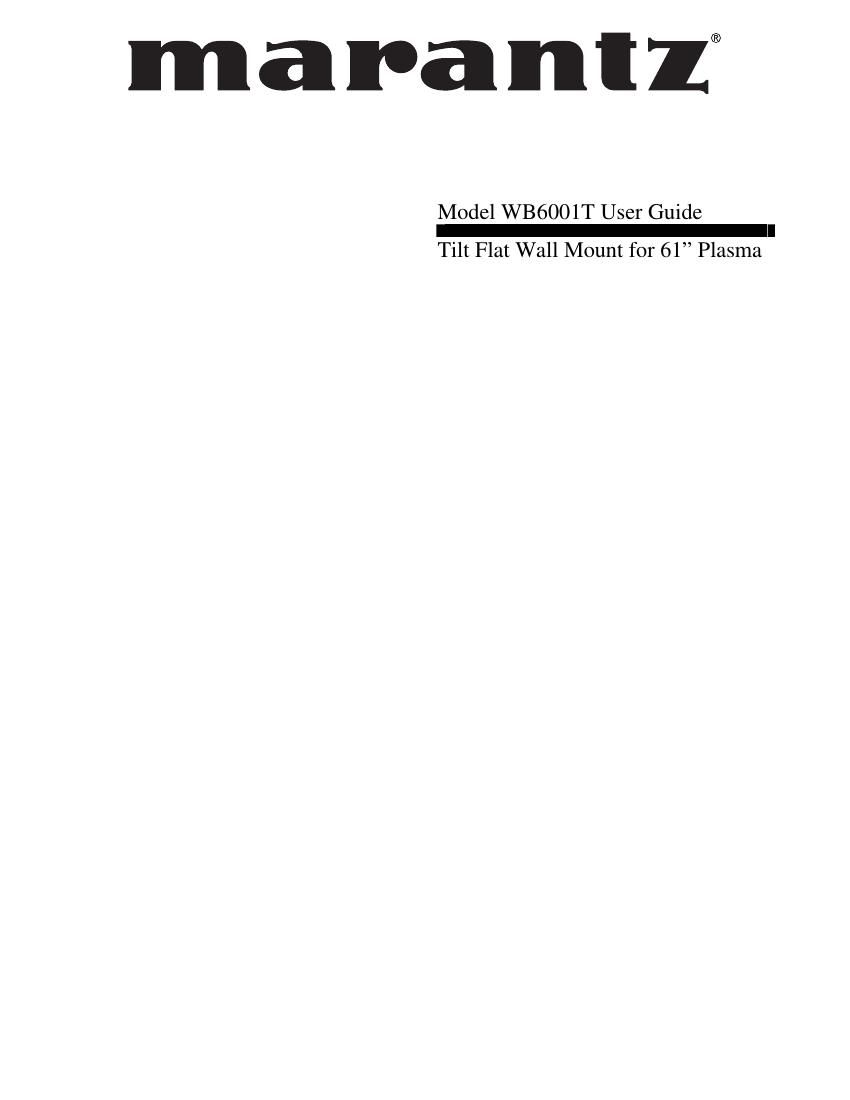

Marantz WB 6001 T Owners Manual
This is the 14 pages manual for Marantz WB 6001 T Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz WB 6001 T Owners Manual (Ocr-read)
Page 1
Warning Statements WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING 160 LBS. IF NOT, THE WALL STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH. WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION PROCEDURE TO PREVENT PERSONAL INJURY. WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. Indicates that the power plug is to be disconnected from the power outlet. Contact Marantz with any questions - (630)-741-0300. Safety precautions must be taken at all times. Warning and Caution statements. Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result in damage to the flat panel display and/or damage to the mounting surface. Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat energy. Failure to do so may result in damage to the flat panel display and could increase the risk of fire. At least two qualified people should perform the installation procedure. Injury and/or damage can result from dropping or mishandling the flat panel display.
Page 2
- 3 - Table of Contents Warning Statements .............................................................................................................................................. - 2 - 1.0 PARTS LIST ............................................................................................................................................. - 4 - 1.1 Installation Tools .....................................................................................................................................- 4 - 2.0 FINDING THE CENTER OF THE DISPLAY ........................................................................................... - 5 - 3.0 POSITIONING THE MOUNTING BRACKETS ....................................................................................... - 6 - 4.0 SECURING THE MOUNTING BRACKETS ............................................................................................- 7 - 5.0 WOODEN STUD LOCATION ................................................................................................................... - 8 - 6.0 FLAT PANEL INSTALLATION ............................................................................................................. - 12 - 7.0 LATERAL SHIFT ADJUSTMENT .......................................................................................................... - 12 - 8.0 TECHNICAL SPECIFICATIONS ............................................................................................................ - 13 -
Page 9
- 10 - Step 12 – Wooden Stud Installation Level and secure the lower plate to the wall with the reference arrow facing up to the ceiling. Secure the plate using the four (4) 5/16" lag bolts and flat washers (supplied) – (Figure 12). Repeat Step 5 to secure the upper wall plate to the wall (Figure 12). CAUTION : Do not over tighten the lag bolts. NOTE : Use a minimum diameter of 5/16 x 3 long wood screws Figure 12 Figure 13 Wall Plate
