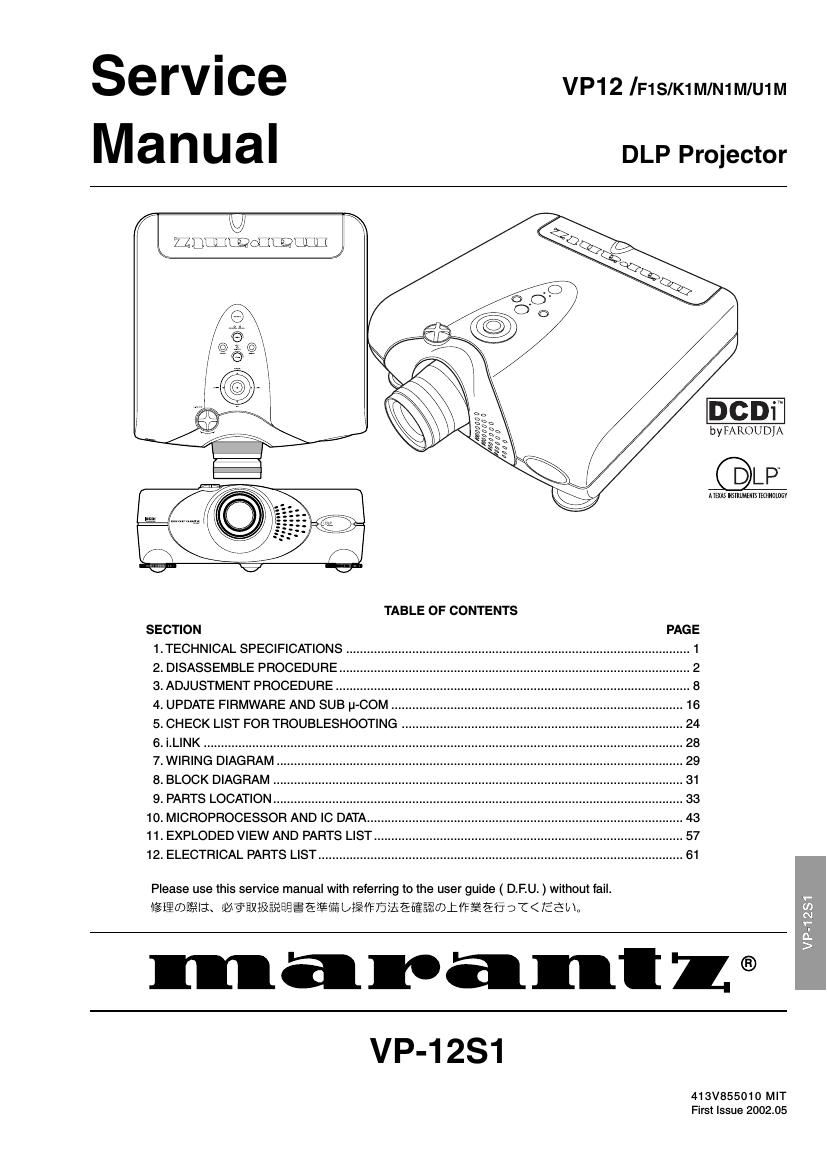

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 020326MIT SUPERSCOPE TECHNOLOGIES, INC. USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 AUSTRALIAQualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALANDWILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 21457677 FAX : +60 3 - 21458180 AMERICAS MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078 HONG KONG Jolly ProAudio Broadcast Engineering Ltd. UNIT 2, 10F, WAH HUNG CENTRE, 41 HUNG TO ROAD, KWUN TONG, KLN., HONG KONG PHONE : 852 - 21913660 FAX : 852 - 21913990 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936
Page 2
1 Optical characteristics Panel ............................................................... 0.85inch 16:9 ........................................................ 1,280 x 720 pixels ....................................... Digital Micromirrory Device TM Lamp......................................... Super High Pressure 150 W Lens ..................................................... f: 26.5 to 30.7 / F: 3.0 Projection size .............................................40 to 250 inches Light output .................................... 700 ANSI LUMEN typical INPUT/OUTPUT VIDEO IN ..................................................................RCA x 1 ............................NTSC-3.58 / PAL-4.43 / SECAM ...................... Composite video 1.0 Vp-p / 75 Ohm S-VIDEO IN ................................................. S-Connector x 1 .......................NTSC-3.58 / PAL-4.43 / SECAM ............................................................. S-Video COMPONENT IN......................................................RCA x 3 ...................................... Y, CB/PB, CR/PR RGB/HD IN .............................................. D-sub M 15 pin x 1 ........................................................ Analog RGB ......................................... HD:1080i, 720p, 480p REMOTE CONTROLLER IN ......................Mini jack type x 1 REMOTE CONTROLLER OUT ..................Mini jack type x 1 AC IN .............................................. 3 Prong Grounding Type TRIGGER OUT................................................. Mini Jack x 2 .................................Output : DC 12 V or 0 V RS-232C .................................. RS-232C receptacle plug x 1 AUX. IN ............................. IEEE1394 AV receptacle plug x 1 COAXIAL Digital AUDIO OUTPUT ........... COAXIAL audio data output x 1 OPTICAL Digital AUDIO OUT .................. OPTICAL audio data output x 1GENERAL Power requirement (F) ............................. AC 100V, 50/60 Hz (K/N/U)... AC 100-120V / 220-240V, 50/60 Hz Power consumption ..................................................< 250 W Standby consumption ................................................< 3.3 W Chassis isolation........................................................ Class-1 Safety ....................................................................... UL6500 ............................................................... CSA E60065 ..................................................................... EN60950 ........................................................................ J60065 .................................................................... IEC60950 EMC..................................................... FCC Part-15 Class-B .......................................................... EN55022 Class-B ........................................................................ EN55024 ...............................................................EN61000-3-2,3 Dimensions ............................405(W) x 471(D) x 155(H) mm Net weight..................................................................... 13 kg Operating Temperature .......................................... 5 to 35 °C Operating humidity ................................................ 30 to 85% Storage Temperature .......................................... -20 to 60 °C Storage humidity.................................................... 30 to 85% Accessories ..................................................... Lens cap x 1 ......................................... Remote controller x 1 ....................................................... Batteries x 2 ................................................... Mains code x 1 ................................................... User Guide x 1 ........................................ Control Adapter cable ........................................ (Mini jack to RCA) x 1 ................................................. Ferrite cores x 2 1. TECHNICAL SPECIFICATIONS
