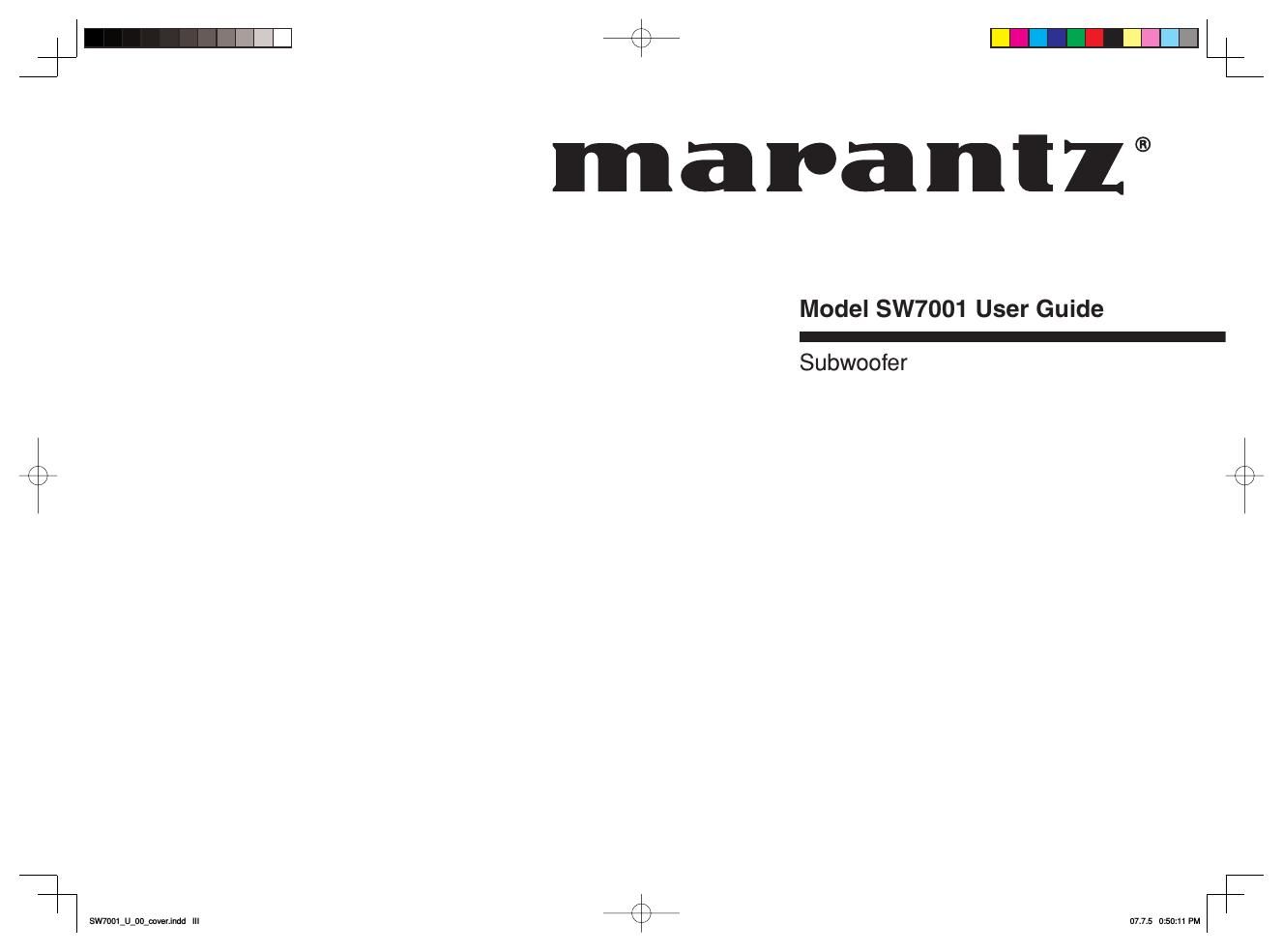

Marantz SW 7001 Owners Manual
This is the 7 pages manual for Marantz SW 7001 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz SW 7001 Owners Manual (Ocr-read)
Page 1
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of suf cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON- DANTE DE LA PRISE ET POUSSER JUSQUAU FOND. IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli ers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories speci ed by the manufacturer. SW_070305U2 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Additional Safety Information! This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer s instructions have been adhered to. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. When the switch is in the OFF position, the apparatus isnt completely switched-off from the MAINS. The equipment shall be installed near the Socket-Outlet and shall be easily accessible. 4 8 @ 6 @ @ D P W F S J O E E * 7 4 8 @ 6 @ @ D P W F S J O E E * 7 1 . 1 .
Page 2
1 ENGLISH CONTENTS Thank you for purchasing the Marantz SW7001 Subwoofer. Before using this unit, please read the User Guide carefully to ensure proper operation of the unit, and retain it together with the supplied warranty. 7 Accessories Check Before use, check the below accessories were included in the package. Audio cable Remote control cable User Guide (This manual) Warranty Card (USA x 1, Canada x 1) BEFORE USING .......................................................................................... 1 NAMES AND FUNCTIONS OF PARTS ....................................................... 2 FRONT PANEL .................................................................................................... 2 FRONT PANEL .................................................................................................... 2 CONNECTIONS ........................................................................................... 3 INSTALLATION ............................................................................................ 3 SPECIFICATIONS ....................................................................................... 4 OTHERS ...................................................................................................... 4 This section must be read before any connection is made to the mains supply. 7 Equipment mains working setting Your Marantz product has been prepared to comply with the household power and safety requirements that exist in your area. This unit can be powered by 120V AC only. 7 Copyright Recording and playback of any material may require consent. For further information refer to the following: – Copyright Act 1956 – Dramatic and Musical Performers Act 1958 – Performers Protection Acts 1963 and 1972 – Any subsequent statutory enactments and orders 7 Do Not Locate in the Following Places To ensure long-lasting use, do not locate the unit where: Exposed to direct sunlight. Near to sources of heat such as heaters. Highly humid or poorly ventilated. Dusty. Subjected to mechanical vibrations. On wobbly, inclined or otherwise unstable surfaces On a high place such as on a TV set BEFORE USING To ensure proper heat radiation, ensure the below clearance from walls and other equipment. Rear 4 ins. (0.1 m) or more 7 Keep Objects Off Keep objects off the unit. 7 Do not touch hot spots during and immediately after use During and immediately after use, the unit is hot in areas other than the controls and rear panel connection jacks. Do not touch hot spots and especially the rear panel. Contact with hot areas can cause burns. 7 Cautions on handling power cord Do not touch the power cord with wet hands. When disconnecting the power cord, always make sure that you take hold of the plug. Yanking out or bending the cord can damage it and/or cause electric shocks or a fire. Get into the habit of disconnecting the power plug before leaving home. 4 8 @ 6 @ @ & O H J O E E 4 8 @ 6 @ @ & O H J O E E 1 . 1 .
