Marantz ST 450 L Owners Manual

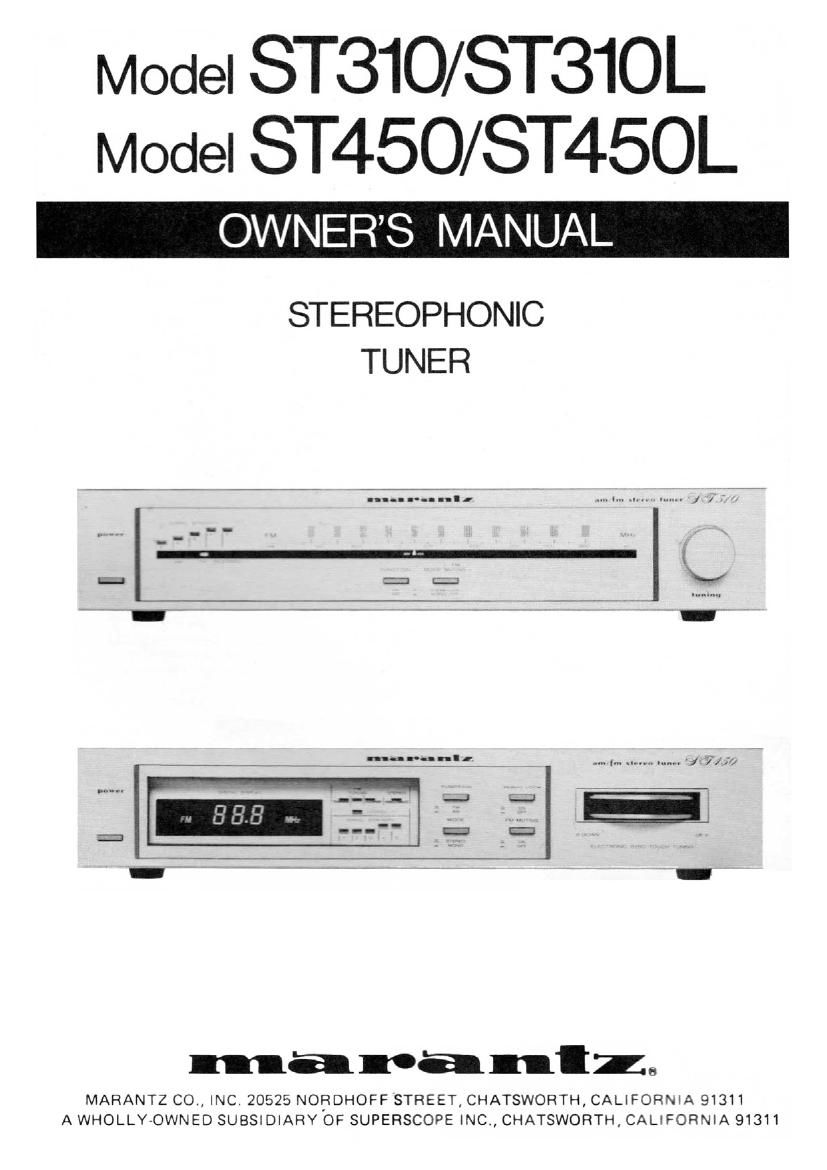

Page 1

Model ST310/ST31OL

Model ST450/ST45OL
STEREOPHONIC
TUNER

Page 2

FOREWORD

To obtain maximum performance and en4
joyment from your Stereophonic Tuner,
please study these instructions carefully.
Installing and operating the Tuner is not
complicated, but the flexibility provided
by its numerous operating features merits
your becoming familiar with its controls and
connections.

This is a multilingual handbook designed to
provide instructions in English, French, and
German for the different versions of this
tuner sold worldwide.

Your Marantz product has been specially
prepared to comply with the household
power and safety requirements that exist in
your locale. Please check the alphabetical
suffix following the serial number of your
Marantz product. Refer to the following
table to note the differences that exist
between your unit and the unit pictured
and described in this manual.

A - Operating Voltage: 240V AC.
No external fuse.

C - Operating Voltage: 120V AC.
Unit cannot be converted to operate
on other voltages.

N - Operating voltage: 220V AC, The
voltage selector on the rear panel
makes it possible to convert this unit
to 110V AC.

T- Operating voltage: 240V AC. The
voltage selector on the rear panel
makes it possible to convert this unit
to 220V AC.

P 7 Operating Voltage: 120V AC.

Should it become necessary to convert this
unit to a different operating voltage, be sure
to unplug the cord from the wall outlet.

FOR UNITS SOLD IN THE UNITED
KINGDOM:

Brown

/W/
IMPORTANT

The wires in this mains lead are coloured in
accordance with the following code:

Blue - Neutral
Brown - Live

As the colours of the wires may not cor-
respond with the terminal identification in
your plug, proceed as follows:

0 Connect brown wire to the terminal
marked "L" or coloured brown or red.

0 Connect blue wire to the terminal
marked "N" or coloured blue or black,

0 Connect green»and-yel|ow wire to the
terminal marked "E" or by safety earth
symbol é- or coloured green-and-

yellow.

For 13A plugs, conforming to BS 1363, use
a 3A fuse.

For other plugs, use a 5A or lower fuse in
the plug or adaptor or at the distribution
board.
