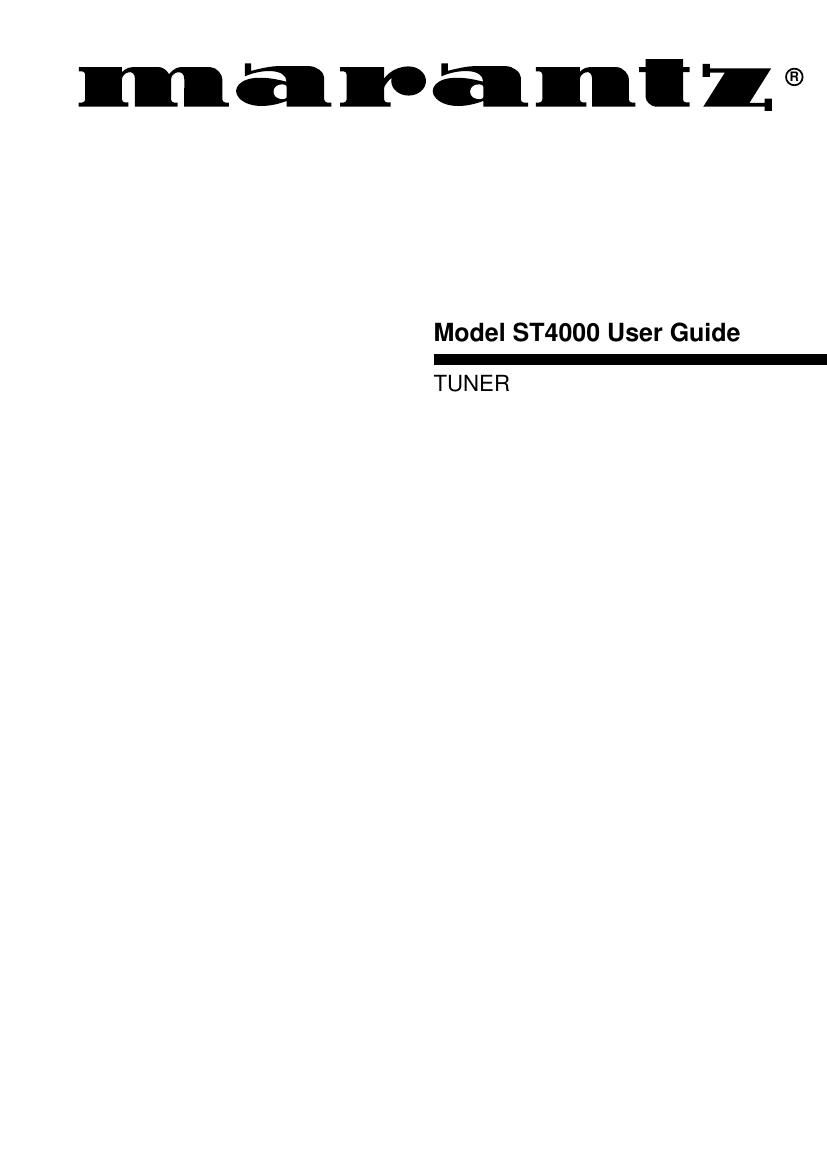

Marantz ST 4000 Owners Manual
This is the 9 pages manual for Marantz ST 4000 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz ST 4000 Owners Manual (Ocr-read)
Page 1
3 ENGLISH FRANaIS DEUTSCH NEDERLANDS ESPA„OL ITALIANO PORTUGUæS SVENSKA DANSK FOREWORD Be sure to read this section before any connection to the mains supply. WARNINGS Never expose the equipment to rain or moisture. Never remove the equipmentÕs cover. Never insert anything into the equipmentÕs vents. Never handle the mains lead while your hands are wet. EQUIPMENT MAINS WORKING SETTING This Marantz product is available in two different variations, depending on geographical area. One variation has a preset mains voltage (230V for General Europe model and U.K. model), while the other variation features variable voltage that can be selected using a voltage selector on rear panel (115V/230V). The voltage selector must be set for your local mains voltage before any connection to the mains supply. If you need to change its voltage setting, consult your dealer your local Marantz service provider. IMPORTANT: (FOR U.K. MODEL) This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1.Remove fuse cover and fuse. 2.Fix new fuse which should be a BS1362 5A, A.S.T.A. or BSI ap- proved type. 3.Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A. NOTE:The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere. HOW TO CONNECT A PLUG (FOR U.K. MODEL) The wires in the mains lead are coloured in accordance with the follow- ing code: BLUEÑ ÒNEUTRALÓ (ÒNÓ) BROWNÑÒLIVEÓ (ÒLÓ) 1.The BLUE wire must be connected to the terminal which is marked with the letter ÒNÓ or coloured BLACK. 2.The BROWN wire must be connected to the terminal which is marked with the letter ÒLÓ or coloured RED. 3.Do not connect either wires to the earth terminal in the plug which is marked by the letter ÒEÓ or by the safety earth symbol ú or coloured green or green-and-yellow. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the leadÑnot simply over the two wires. COPYRIGHT Recording and playback of any material may require previous consent. Refer to the following for further information. Ñ Copyright Act 1956 Ñ Dramatic and Musical Performers Act 1958 Ñ Performers Protection Acts 1963 and 1972 Ñ Any subsequent statutory enactments and orders INTRODUCTION Thank you for selecting the Marantz ST4000 FM/AM Stereo Tuner for your system. Please read these operating instructions carefully. We recommend that you read the entire user guide before you attempt to connect or operate the Tuner. After you have reviewed the contents of this manual, we suggest that you make all system connections before you attempt to operate the unit. Refer to the figures on the pages at the back of this userÕs guide. The callout numbers on the figures correspond to those found in the text. All references to the connections and controls that are printed in BOLD type are as they appear on the unit. INSTALLATION Remember the following important points when installing the Tuner. ¥ Do not expose the component to rain or moisture, as this may cause damage to the Tuner. ¥ Prevent extra heat from reaching the unit. Never put the Tuner in the full glare of the sun or near a heat source. PRECAUTIONS The following precautions should be taken when operating the equip- ment. GENERAL PRECAUTIONS When installing the equipment ensure that: Ñ air is allowed to circulate freely around the equipment. Ñ it is placed on a vibration-free surface. Ñ it will not be exposed to excessive heat, cold, moisture or dust. Ñ it will not be exposed to direct sunlight. Ñ it will not be exposed to electrostatic discharges. In addition, never place heavy objects on the equipment. If a foreign objector water does enter the equipment, contact your near- est dealer or service center. Do not pull out the plug by pulling on the mains lead; grasp the plug itself. It is advisable when leaving the house, or during a thunderstorm, to disconnect the equipment from the AC outlet. ST4000 FEATURES ¥ 60-station (FM30, AM30) preset memory with auto preset memory function. ¥ Up to 120-minute sleep timer. ¥ Radio Data System. (Europe version only) ¥ Timer ON/OFF.
Page 2
4 ENGLISH FRANaIS DEUTSCH NEDERLANDS ESPA„OL ITALIANO PORTUGUæS SVENSKA DANSK !0 ST. NAME Button (See page 5) !1 NEXT Step Button (See page 5) !2 FM MODE Button Used to select stereo or mono when listening to FM broadcasts. NOTES: ¥ The AM scan step can be changed by pressing the FM MODE buttons simultaneously for 5 seconds. (overseas version only) !3 MEMORY Button ¥MANUAL: To preset FM or AM (MW) in the system, pres briefly (0.5 second or less). ¥AUTO: When you press the button for long (more than 0.5 sec- ond), FM or AM (MW) broadcasting will automatically be preset in the system. !4 BAND selector Button Press the button to switch between FM and AM (MW) bands. CONTROLS AND THEIR FUNCTIONS (See page 50) q POWER (STANDBY/ON) Button w SLEEP Button e TIMER Button Press this button with DAILY preset and the indicator will shown on the display. r Multi-function Display zSLEEP Indicators xRDS, FILE, SLEEP TIME mode Indicators ¥RDS: PS, PTY DATA will be displayed, and RDS indicator lights. ¥FILE: Alphabets, symbols, and numbers will be displayed when you write a broadcasting name with File Button (up to 4 letters). ¥Timer mode: When the DAILY function is programmed, the daily ON/OFF times will be shown in the display. cTuned Indicator This indicator lights when correctly tuned to a broadcast. vSTEREO Indicator This indicator will light up when FM stereo broadcasting is re- ceived. bTIMER Indicator nFrequency mode, TIME Indicator ¥ The frequencies of FM, AM (MW) will be displayed. ¥ Hour, Minute: When you program current time, DAILY, the times of On/Off, and the hour and minute of CT among RDS will be displayed. mChannel Display The channel number selected by use of the PRESET UP/DOWN button will be shown in the display. ,Signal Indicator The reception status of the broadcasting. .MEMORY Indicator t PRESET UP/DOWN Buttons ¥Broadcast Memory function: Each time you press the PRESET UP/DOWN button briefly (for 0.5 second or less), you can listen to broadcasts in a programmed sequence. This function is used to memorize FM or AM (MW) broadcasting, or to select memo- rized broadcasts. y TUNING UP/DOWN Buttons (t/s) Used to select the broadcast you want to listen to or adjust the current time, DAILY, SLEEP presets, etc. u DISPLAY Buttons 1)The button works only when you receive FM broadcasting sta- tions, and is used to set the RDS mode. 2)Press the button longer than 1 second, and PTY search will become operable. i DAILY Button o TIME ADJUST Button (See page 5)
